Portable COD Analyzer for Industrial Wastewater Organic Pollution Monitoring HM-SCOD

Product Introduction

Industrial wastewater discharge compliance hinges on one critical parameter more than any other: Chemical Oxygen Demand (COD). Regulatory authorities mandate COD limits in discharge permits because it directly quantifies the organic pollution load entering receiving water bodies. For wastewater treatment plant operators, environmental compliance officers, and industrial facility managers, the challenge is clear — they need reliable, rapid COD measurement that satisfies permit requirements without investing in expensive multi-parameter instruments that include capabilities they never use.

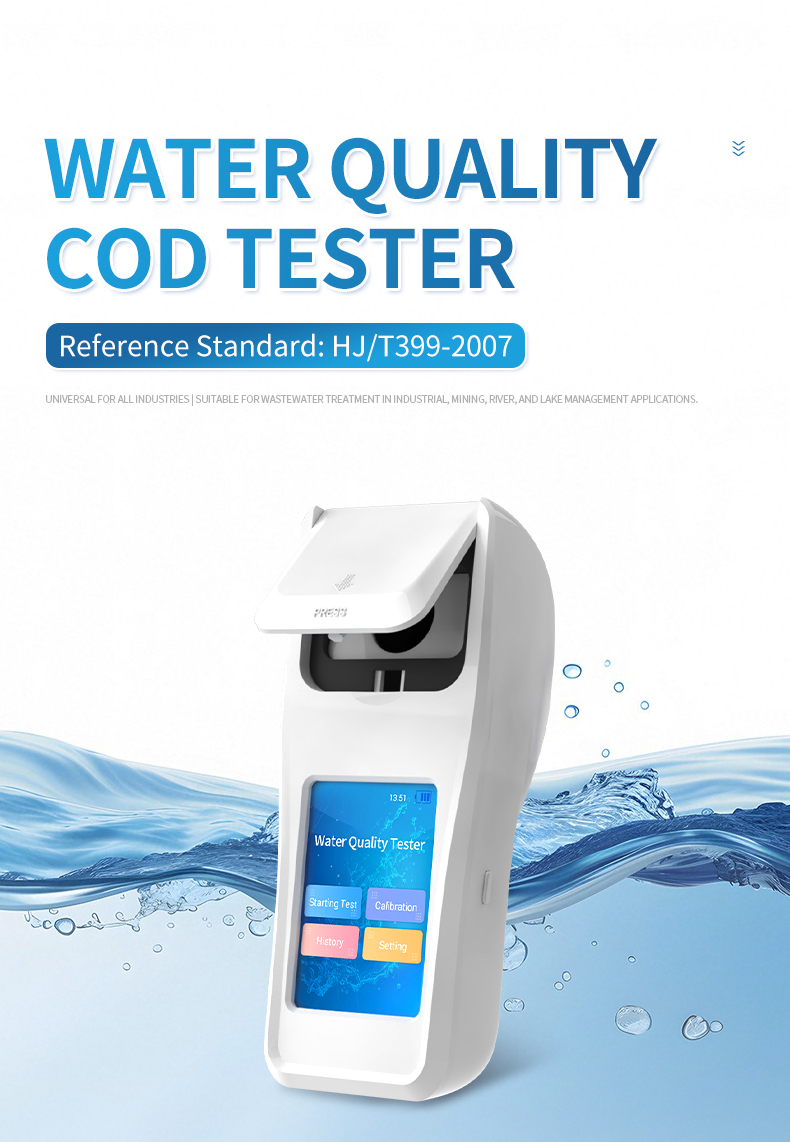

The HM-SCOD addresses this challenge directly. It is a dedicated single-parameter handheld COD detector built around the HJ/T399-2007 spectrophotometric method, covering four measurement ranges from 10 to 15,000 mg/L. This range breadth ensures coverage from treated effluent near discharge thresholds to high-load raw influent from pharmaceutical, chemical, and food processing plants.

Facilities sending samples to external laboratories face turnaround delays of 24–72 hours and recurring costs that accumulate rapidly. The HM-SCOD enables on-site results in minutes, allowing operators to make real-time process adjustments — increasing aeration, adjusting chemical dosing, or diverting flow — before violations occur. Its Android operating system and 3.5-inch touch screen provide an intuitive workflow from sample preparation through digestion to final reading, minimizing operator training time.

At $660, the HM-SCOD eliminates the financial burden of unused multi-parameter capability. Wastewater treatment plants monitoring only COD for their discharge permits no longer need to purchase instruments with pH, dissolved oxygen, or turbidity channels they will never activate. The result is an 80% cost reduction compared to comparable international instruments, while maintaining the spectrophotometric accuracy, cold light source stability, and 0.001 absorbance sensitivity that compliance-grade measurement demands.

Applications

• Municipal wastewater treatment plants — COD monitoring of influent and effluent to verify discharge permit compliance and optimize biological treatment process control.

• Industrial effluent monitoring — Textile dyeing, paper milling, and chemical manufacturing facilities tracking organic pollution loads in treated wastewater before discharge.

• Food and beverage processing — Breweries, dairies, and meat processing plants measuring COD in production wastewater to meet environmental discharge standards.

• Pharmaceutical manufacturing — Monitoring COD in process wastewater containing organic solvents and active pharmaceutical ingredient residues.

• Environmental emergency response — Rapid on-site COD assessment during pollution incidents, spill events, or unexplained receiving water quality deterioration.

• Mining and metallurgical operations — Tracking organic contamination in process water and tailings pond discharge.

• Petrochemical refineries — Quantifying organic load in wastewater treatment system influent and effluent for regulatory reporting.

Key Features & Advantages

1. Four dedicated COD ranges (10–150, 20–450, 50–1,500, 500–15,000 mg/L) ensure measurement capability across the full spectrum of wastewater concentrations encountered in discharge permit monitoring.

2. HJ/T399-2007 compliance — spectrophotometric method and precision specifications aligned with the Chinese national standard referenced in most wastewater discharge permits.

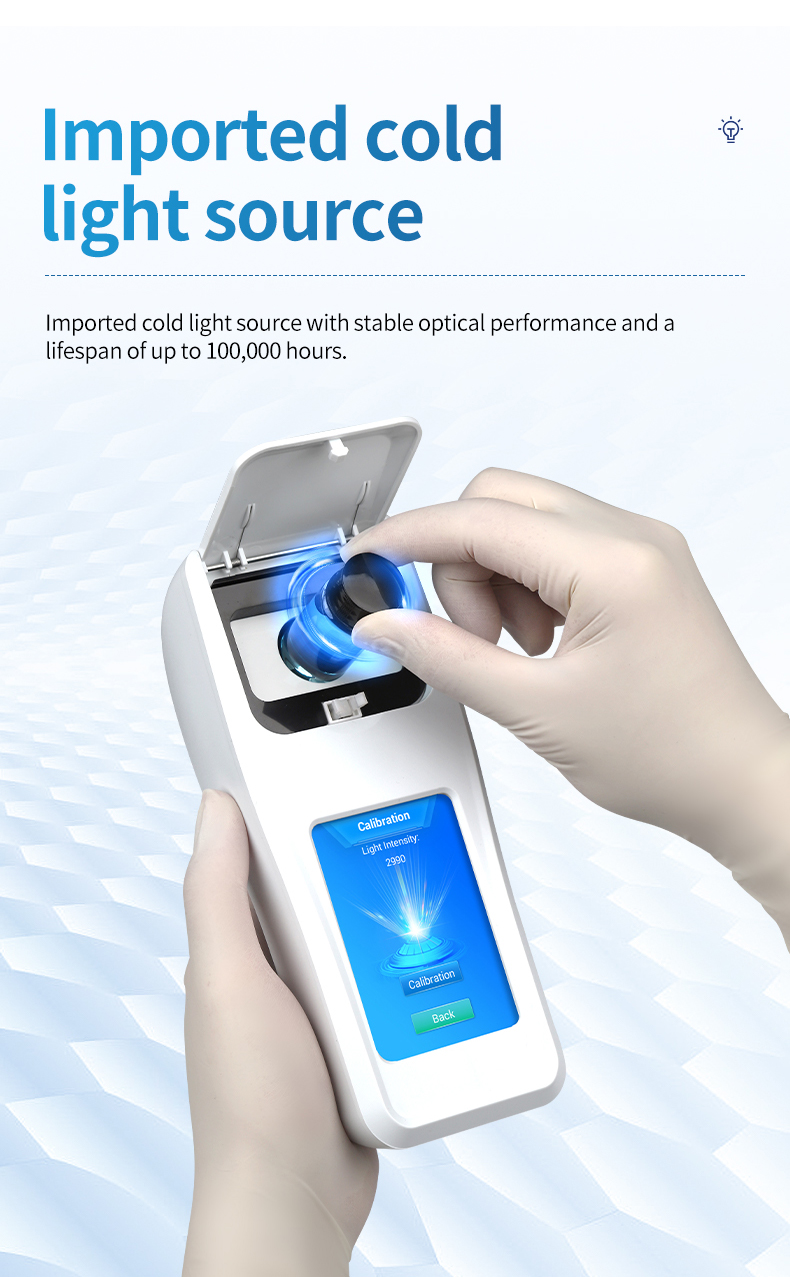

3. Imported cold light source with up to 100,000-hour lifespan provides wavelength stability critical for reproducible COD absorbance measurement across long-term monitoring programs.

4. Automatic wavelength selection eliminates manual filter configuration between ranges, reducing operator error and accelerating multi-range testing workflows.

5. 0.001 absorbance sensitivity delivers the detection precision needed to distinguish compliance-level COD concentrations near regulatory thresholds.

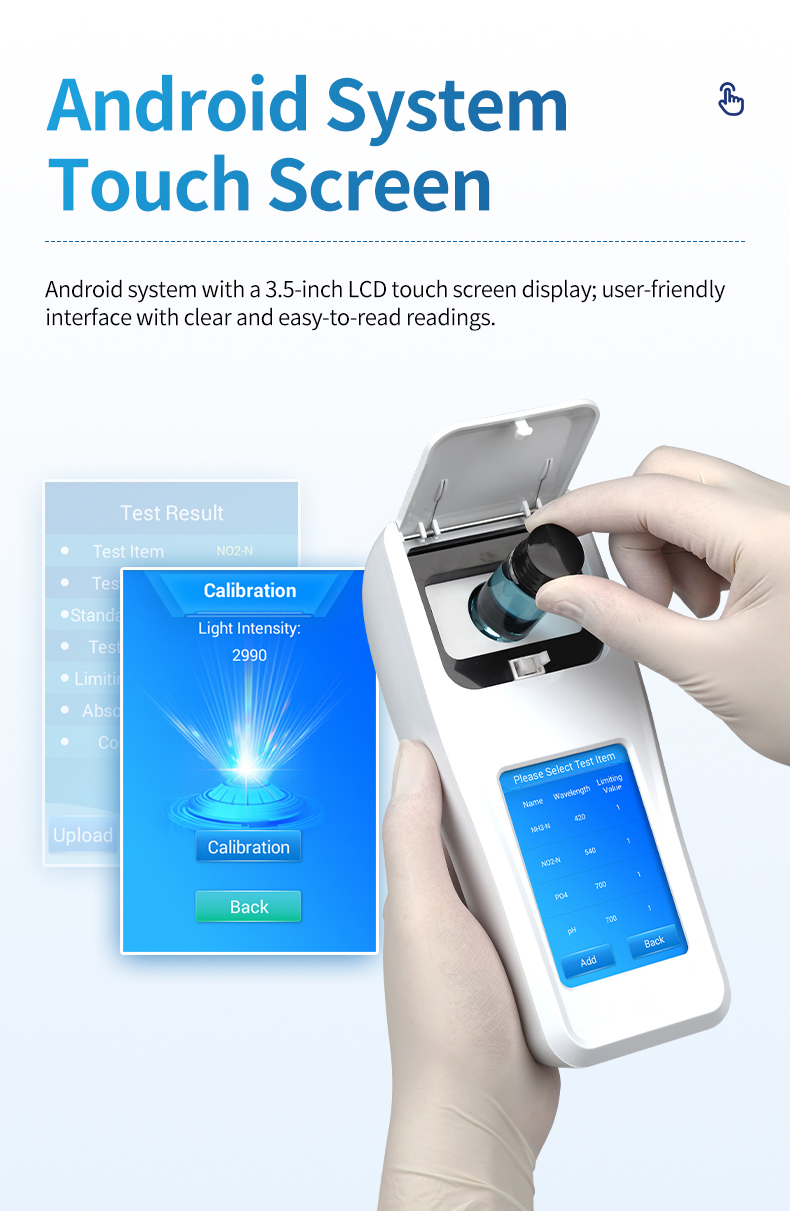

6. Android operating system with 3.5-inch color LCD touch screen offers intuitive navigation through test setup, calibration, measurement, and data review — reducing operator training requirements.

7. Digestion-colorimetric integrated tube design streamlines the sample workflow from digestion through colorimetric reading without vial transfer, saving time and reducing handling errors.

8. Over 80,000-record onboard storage enables months of continuous monitoring data retention, supporting trend analysis and regulatory audit documentation.

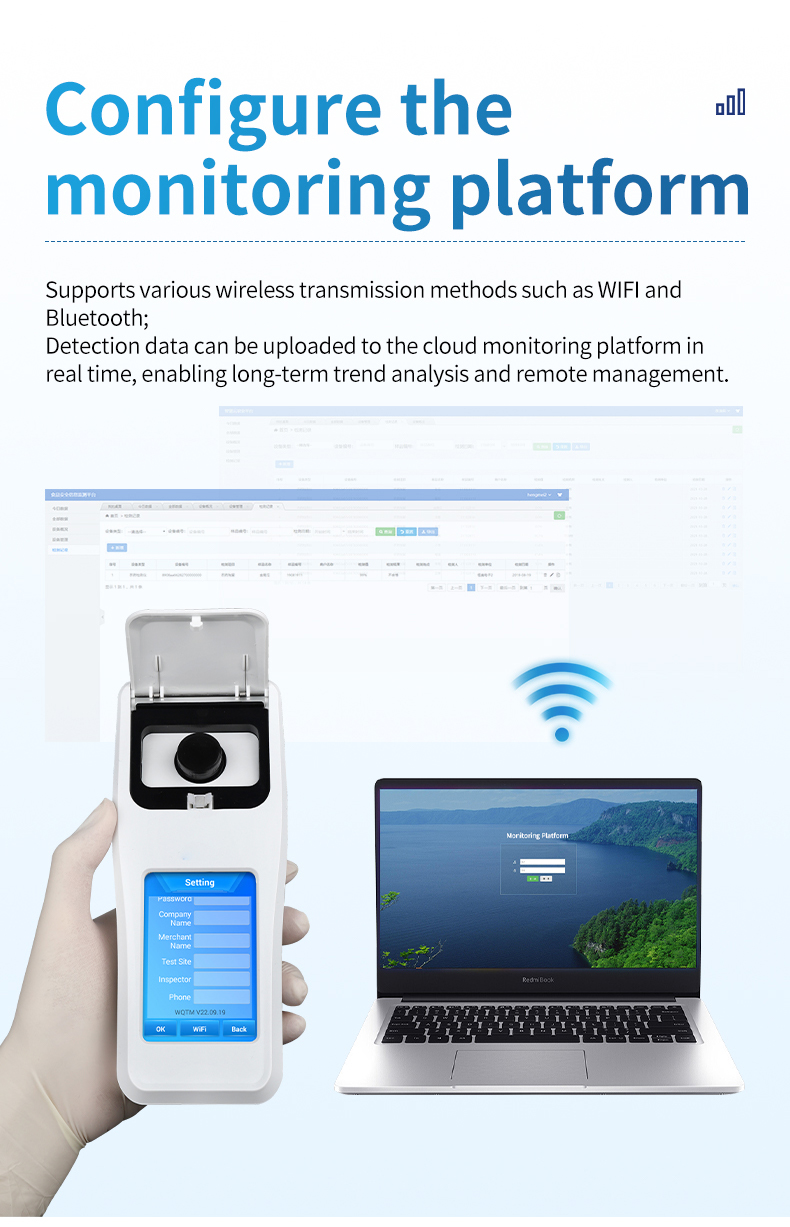

9. WiFi connectivity enables direct upload to the HM Instruments cloud monitoring platform, allowing remote access to historical COD data, trend report generation, and threshold alert configuration for permit compliance.

10. Type-C and Bluetooth communication provide flexible data export options and optional Bluetooth printer support for on-site reporting.

11. 5,600 mAh lithium battery with 8-hour continuous runtime supports full-day field monitoring campaigns at discharge points and sampling stations without recharging interruptions.

12. 325 g handheld form factor (190 × 77 × 72 mm) allows true portable deployment at discharge monitoring points, treatment plant sampling stations, and emergency field locations.

13. At $660, the HM-SCOD delivers compliance-grade COD measurement at a price point 80% below comparable international instruments — eliminating the cost of unused multi-parameter channels.

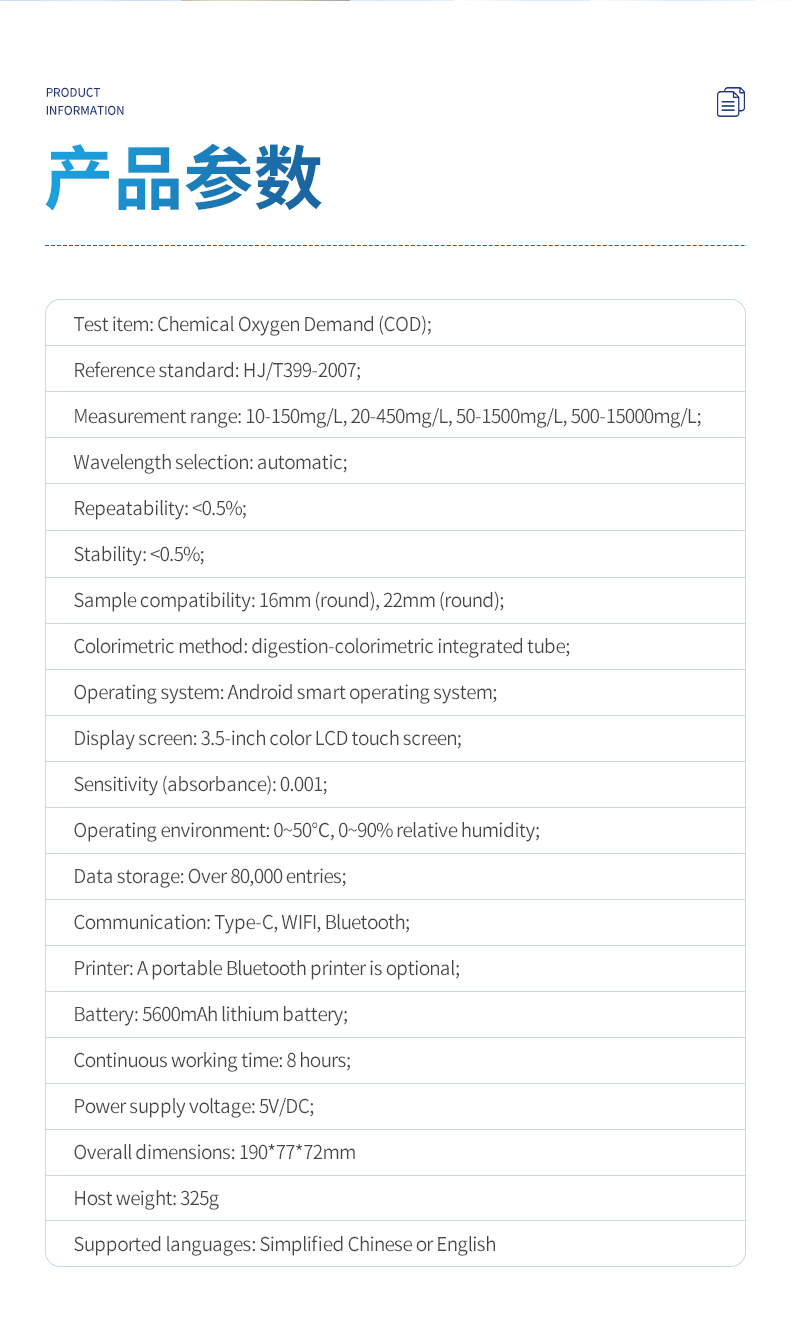

Technical Specifications

FAQ

Q1: How does the HM-SCOD help wastewater treatment plants maintain discharge permit compliance?

A: The HM-SCOD provides on-site COD results in minutes rather than the 24–72 hour turnaround typical of external laboratory analysis. This enables plant operators to detect exceedances in real time and make immediate process adjustments — such as increasing aeration or adjusting chemical dosing — before a discharge violation occurs. With four measurement ranges covering 10–15,000 mg/L, it addresses both low-concentration treated effluent and high-load raw influent testing needs. The HJ/T399-2007-compliant spectrophotometric method ensures results align with the standard referenced in most Chinese wastewater discharge permits.

Q2: What is the advantage of a dedicated COD-only instrument over a multi-parameter water quality analyzer?

A: For facilities whose discharge permits require only COD monitoring, a multi-parameter instrument represents unnecessary expenditure. The HM-SCOD eliminates the cost of pH, dissolved oxygen, turbidity, or other channels that remain idle, delivering compliance-grade COD measurement at $660 — approximately 80% below the price of comparable international multi-parameter platforms. This focused design also simplifies calibration, reduces maintenance requirements, and shortens operator training, since the workflow centers exclusively on COD sample preparation and measurement.

Q3: Can the HM-SCOD handle high-concentration industrial wastewater samples?

A: Yes. The 500–15,000 mg/L range is specifically designed for high organic load samples from pharmaceutical, chemical, food processing, and textile dyeing facilities. Automatic wavelength selection switches the instrument to the appropriate optical configuration for each range, eliminating manual filter changes. For extremely concentrated samples above 15,000 mg/L, dilution protocols can be applied following the HJ/T399-2007 method guidelines.

Q4: How does the cloud monitoring platform support long-term compliance data management?

A: The HM-SCOD's WiFi connectivity enables direct upload of measurement records to the HM Instruments cloud monitoring platform. Environmental compliance officers and plant managers can access historical COD data remotely, generate trend reports spanning weeks or months, and produce documentation for regulatory audits. The platform also supports threshold alert configuration — notifying designated personnel when COD readings approach or exceed permit limits.

Q5: What sample preparation is required before COD measurement?

A: COD measurement with the HM-SCOD follows the digestion-colorimetric integrated tube workflow specified in HJ/T399-2007. The operator adds the water sample to the digestion tube with reagent, places the tube in the included smart digestor for the prescribed temperature and time cycle, then transfers the cooled tube directly into the instrument's sample chamber for colorimetric reading. The integrated tube design eliminates the vial transfer step between digestion and measurement, reducing both handling time and potential error.

Q6: Is the HM-SCOD suitable for emergency pollution incident response?

A: The HM-SCOD's handheld form factor (325 g), 8-hour battery runtime, and rapid on-site measurement capability make it well-suited for emergency deployment. Environmental response teams can carry the instrument directly to spill sites, discharge monitoring points, or receiving water locations to obtain COD concentrations within minutes, enabling immediate assessment of organic pollution severity and guiding containment or remediation decisions.
