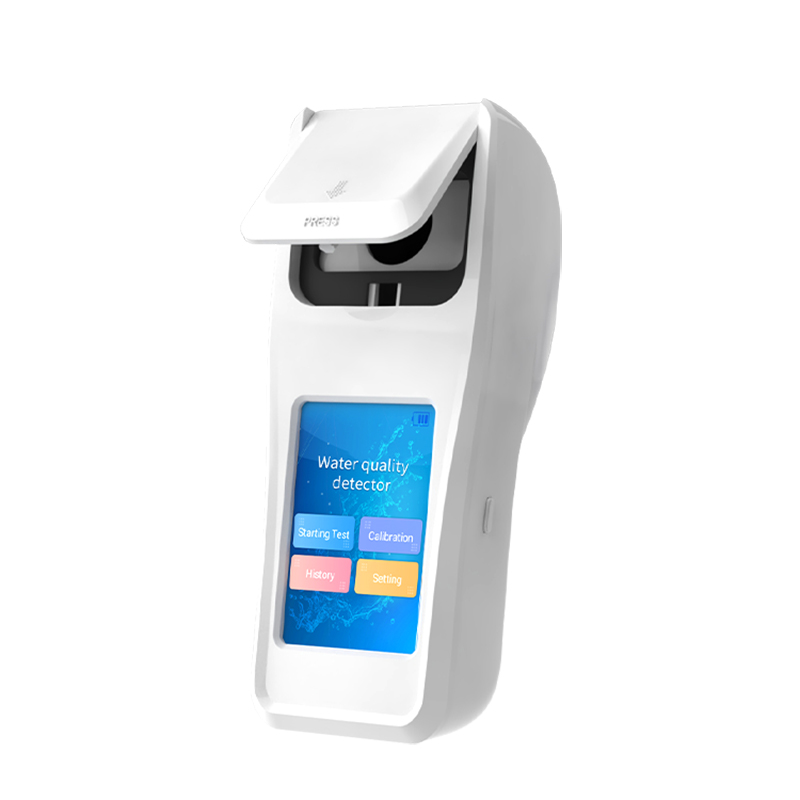

Portable COD, Ammonia Nitrogen and Total Phosphorus Analyzer for Municipal Wastewater Compliance HM-S103

Product Introduction

Municipal wastewater treatment plant operators confront a daily compliance reality: Chinese discharge regulations mandate monitoring of Chemical Oxygen Demand (COD) for organic pollution, Ammonia Nitrogen (NH3-N) for nitrogen removal verification, and Total Phosphorus (TP) for eutrophication control. Most facilities currently deploy three separate single-parameter instruments, requiring triple calibration procedures, triple reagent inventory management, triple technician training, and triple data reconciliation — an operational burden that diverts resources from actual treatment optimization.

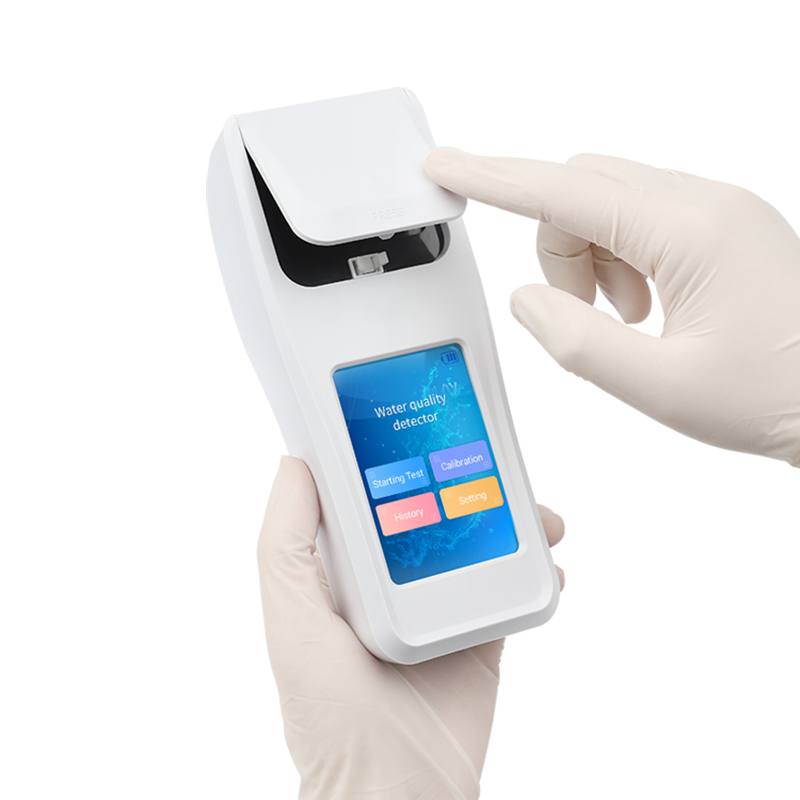

The HM-S103 consolidates these three critical compliance indicators into a single 325-gram handheld device. At $960, it costs 54% less than purchasing three separate single-parameter analyzers, while each parameter retains full HJ-series standard compliance and spectrophotometric accuracy: COD per HJ/T399-2007 (10–15,000 mg/L across four ranges), NH3-N per HJ535-2009 (0.05–200 mg/L across four ranges), and TP per HJ671 (0.02–30 mg/L across three ranges). The Android smart operating system with 3.5-inch touch screen manages all three test workflows in a unified interface, and automatic wavelength selection seamlessly switches among parameters. The included 6-chamber smart digestor prepares COD, NH3-N, and TP samples in the same batch, reducing daily preparation time from three separate digestion cycles to one.

For sewage treatment plants verifying daily influent organic load and effluent nitrogen/phosphorus removal, river water quality patrol teams assessing eutrophication risk, and textile dyeing facilities controlling organic, nitrogen, and phosphorus discharge simultaneously — the HM-S103 transforms three independent compliance tasks into one streamlined, cost-efficient operational workflow.

Applications

• Municipal sewage treatment. Daily COD, NH3-N, and TP compliance verification across influent, process, and effluent monitoring points — the three mandatory parameters for discharge permit reporting.

• River and lake water quality patrol. Rapid three-parameter eutrophication risk assessment covering organic pollution (COD), nitrogen load (NH3-N), and phosphorus concentration (TP) at multiple sampling stations.

• Textile dyeing and printing effluent. Simultaneous organic load, nitrogen, and phosphorus triple discharge verification — dyeing processes generate elevated COD from dyes, NH3-N from nitrogen-based auxiliaries, and TP from phosphorus-containing fixing agents.

• Food and dairy processing. Three-parameter monitoring of organic pollution from product residues, ammonia nitrogen from protein breakdown, and phosphorus from cleaning agents in discharge water.

• Chemical manufacturing. Comprehensive effluent compliance testing for process wastewater containing organic compounds, nitrogen-based chemicals, and phosphorus-containing catalysts.

• Agricultural runoff and aquaculture. Field screening of nutrient pollution (NH3-N and TP) alongside organic contamination (COD) from livestock operations and fish farming discharge.

Key Features & Advantages

1. Single-device three-parameter coverage. COD, NH3-N, and TP measured on one handheld instrument — no multi-instrument logistics, no separate consumable inventories, no duplicate calibration schedules.

2. 54% equipment cost reduction. One HM-S103 ($960) replaces three single-parameter analyzers, dramatically reducing procurement and maintenance budgets without per-parameter accuracy trade-offs.

3. COD four ranges (10–150, 20–450, 50–1,500, 500–15,000 mg/L). HJ/T399-2007 compliant, covering low-concentration drinking water to high-load industrial effluent.

4. NH3-N four ranges (0.05–7.5, 0.2–15, 2–50, 4–200 mg/L). HJ535-2009 compliant, suitable for treated effluent verification and high-concentration influent assessment.

5. TP three ranges (0.02–3, 0.15–15, 0.5–30 mg/L). HJ671 compliant, covering drinking water quality thresholds to high-phosphorus industrial discharge concentrations.

6. Automatic wavelength switching among three parameters. Seamless transition between COD, NH3-N, and TP detection wavelengths without manual filter intervention.

7. Android smart operating system with 3.5-inch touch screen. Unified three-parameter workflow management, calibration tracking, and data export in a single intuitive interface.

8. Imported cold light source (100,000 hours lifespan). Stable optical output shared across all three parameter measurement channels.

9. Integrated smart digestor (included). 6-chamber PID-controlled unit prepares COD, NH3-N, and TP samples simultaneously — ±0.5 °C accuracy, maximum 200 °C, reducing daily preparation from three cycles to one.

10. Digestion-colorimetric integrated tube design. One tube serves both digestion and colorimetric reading for all three parameters, minimizing sample handling and contamination risk.

11. 80,000+ record onboard storage. Three-parameter compliance data stored locally with timestamp, parameter identification, and measurement values for audit traceability.

12. Type-C, WiFi, and Bluetooth connectivity. Direct cloud platform upload for remote three-parameter compliance trend analysis and regulatory reporting.

13. 8-hour continuous battery life. 5,600 mAh lithium battery sustains a full day of three-parameter field testing on a single charge.

14. 325-gram handheld form factor (190 × 77 × 72 mm). True portability for multi-point three-parameter sampling across a treatment plant or river monitoring route.

15. 0.001 absorbance sensitivity with <0.5% repeatability/stability. Laboratory-grade precision for all three parameter channels across daily compliance testing cycles.

16. Independent HJ-series compliance per parameter. Each parameter (COD/HJ/T399, NH3-N/HJ535, TP/HJ671) retains its own standard-level accuracy — no cross-parameter interference.

Technical Specifications

FAQ

Q1: Why is three-parameter monitoring essential for municipal wastewater treatment compliance?

Chinese discharge regulations for municipal wastewater treatment plants mandate three core indicators: COD (organic pollution load), ammonia nitrogen (nitrogen removal verification), and total phosphorus (eutrophication control). These three parameters reflect the three principal pollution dimensions of treated sewage — organic, nitrogen, and phosphorus. Monitoring all three on a single device simplifies daily compliance workflows, reduces calibration and consumables management to one unified process, and ensures audit-ready data consistency across parameters.

Q2: How does the HM-S103 benefit river and lake water quality patrol teams?

Field patrol teams assessing eutrophication risk need rapid, portable measurement of organic pollution (COD), nitrogen load (NH3-N), and phosphorus concentration (TP). The HM-S103 provides all three results in one testing session at each sampling station, enabling comprehensive eutrophication scoring without carrying multiple instruments. The 325-gram weight and 8-hour battery support a full day of multi-station, three-parameter field sampling along a river or lake monitoring route.

Q3: What are the TP measurement ranges and which scenarios do they cover?

Total phosphorus measurement follows HJ671 across three ranges: 0.02–3 mg/L (suitable for treated effluent verification and drinking water quality thresholds), 0.15–15 mg/L (covering typical municipal and industrial wastewater discharge concentrations), and 0.5–30 mg/L (for high-phosphorus industrial effluent such as textile dyeing and chemical manufacturing). These ranges address the full spectrum from regulatory compliance thresholds to process control monitoring.

Q4: Is the HM-S103 suitable for textile dyeing effluent monitoring?

Textile dyeing and printing processes generate elevated organic load (COD from dye residues), nitrogen compounds (NH3-N from nitrogen-based auxiliaries), and phosphorus content (TP from phosphorus-containing fixing agents and detergents). The HM-S103 addresses all three simultaneously, enabling dyeing facilities to verify comprehensive triple-parameter discharge compliance in one streamlined workflow rather than managing three separate testing procedures.

Q5: How does the included smart digestor support three-parameter sample preparation?

The 6-chamber PID-controlled smart digestor (±0.5 °C accuracy, maximum 200 °C) prepares samples for all three parameters in the same batch. COD and TP samples require thermal digestion (165 °C and 120 °C respectively), while NH3-N uses room-temperature color development. Operators can load COD and TP digestion tubes simultaneously, then proceed with NH3-N colorimetric measurement after digestion completes — reducing daily preparation time from three separate cycles to approximately one consolidated workflow.

Q6: Does three-parameter measurement compromise individual parameter accuracy?

No. Each parameter channel — COD (HJ/T399-2007), NH3-N (HJ535-2009), and TP (HJ671) — retains independent calibration curves, wavelength settings, and accuracy specifications. The automatic wavelength selection system physically switches between the correct measurement wavelength for each parameter, ensuring no cross-channel optical interference. Repeatability and stability specifications (<0.5%) apply independently to each parameter, identical to what single-parameter instruments deliver.

Q7: What after-sales support does HM Instruments provide for the HM-S103?

HM Instruments operates 280 service points nationwide with 4-hour response in capital cities and 8-hour response in prefecture-level cities. The HM-S103 carries standard warranty coverage, and HM Instruments guarantees spare parts supply for at least 10 years after product discontinuation. Calibration verification and reagent supply for all three parameter channels are available through the national service network. International customers receive support through authorized distributor partners.
