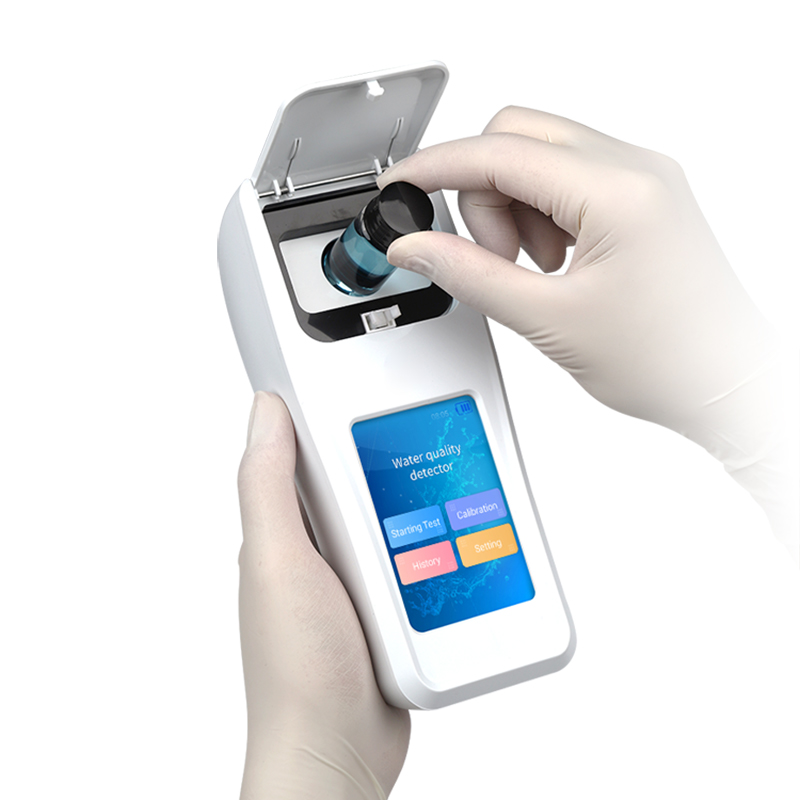

Handheld Multi-Parameter Nutrient Analyzer for Discharge Permit Compliance Testing HM-S104

Product Introduction

Discharge permit compliance in China requires facilities to monitor four nutrient parameters simultaneously: Chemical Oxygen Demand (COD), ammonia nitrogen (NH3-N), total phosphorus (TP), and total nitrogen (TN). Traditionally, this means purchasing and maintaining four separate single-parameter detectors — each with its own reagent system, operating protocol, and data workflow. The resulting equipment investment typically exceeds $2,500, while managing four instruments across multiple discharge points creates documentation gaps and compliance risks.

The HM-S104 eliminates this fragmented approach by consolidating all four discharge permit parameters into a single 325-gram handheld device. Based on spectrophotometric detection with an imported cold light source, the instrument covers COD (10–15,000 mg/L across four ranges), ammonia nitrogen (0.01–50 mg/L), total phosphorus (0.02–30 mg/L), and total nitrogen (0.5–200 mg/L), with each parameter referencing its respective HJ series national standard: HJ/T399-2007, HJ535-2009, HJ671-2013, and HJ636-2012.

The integrated smart digestor provides six-chamber PID temperature control (±0.5 °C, max 200 °C), enabling complete on-site sample digestion and colorimetric analysis without laboratory access. A single operator can complete all four parameter measurements at a discharge point in under 90 minutes, with unified data stored in one device for streamlined compliance reporting.

At $1,100 — representing approximately 60% cost savings versus purchasing four individual detectors — the HM-S104 makes comprehensive discharge permit monitoring accessible to municipal treatment plants, pharmaceutical manufacturers, chemical facilities, and environmental monitoring stations that previously compromised on testing frequency due to budget constraints.

Applications

• Municipal wastewater treatment plants. Daily influent and effluent four-parameter compliance monitoring under discharge permit requirements.

• Pharmaceutical manufacturing. Discharge permit four-parameter reporting covering production wastewater from API synthesis and formulation lines.

• Petroleum and metallurgical industries. Process wastewater four-parameter monitoring across refining, smelting, and electroplating operations.

• Environmental monitoring stations. Field patrol four-parameter rapid assessment of river and lake water quality during routine surveillance.

• Chemical industry. Four-parameter discharge compliance testing across multiple production lines with a single portable instrument.

• Food and beverage processing. Wastewater nutrient panel monitoring from slaughtering, brewing, dairy, and starch processing facilities.

Key Features & Advantages

1. Four-parameter single-device coverage. COD, NH3-N, TP, and TN — all standard discharge permit parameters in one handheld instrument, eliminating multi-device management.

2. 60% equipment cost reduction. One HM-S104 at $1,100 replaces four single-parameter detectors totalling $2,500+, lowering capital expenditure significantly.

3. Integrated smart digestor for complete on-site workflow. Six-chamber PID-controlled digestion (±0.5 °C) enables sample preparation without laboratory access.

4. Unified four-parameter data storage. All results stored with parameter tagging, simplifying compliance report generation and audit documentation.

5. Android smart operating system. Intuitive interface with guided test procedures, reducing operator training time and procedural errors.

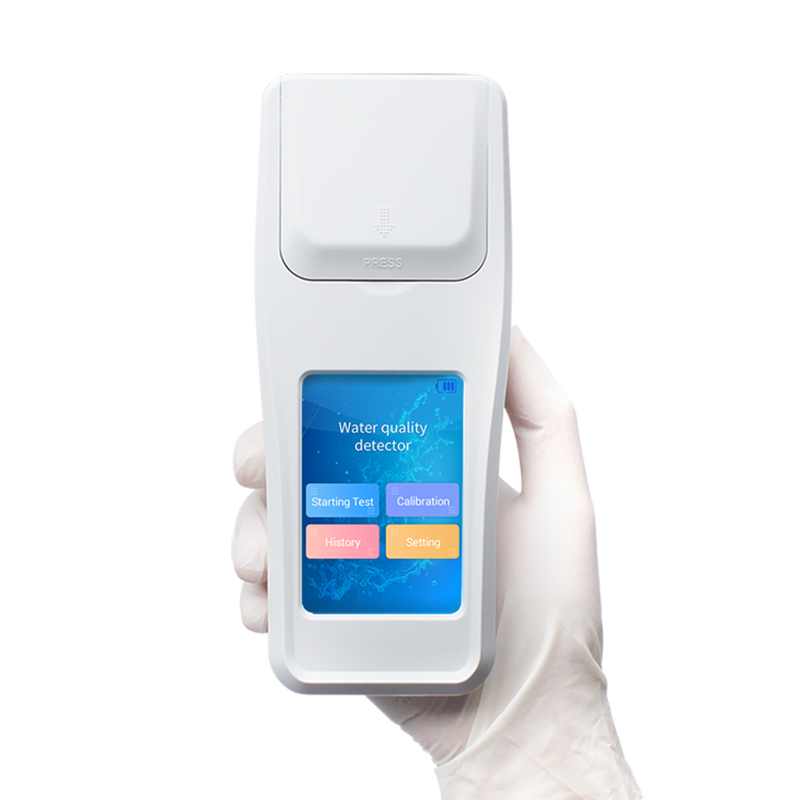

6. 3.5-inch color LCD touch screen. Clear parameter selection, real-time absorbance curves, and result display under indoor and outdoor conditions.

7. Imported cold light source. Stable output exceeding 100,000 hours lifespan, ensuring consistent accuracy across all four parameters.

8. Automatic wavelength selection. Instrument switches to optimal wavelength for each parameter, eliminating manual filter changes.

9. 0.001 absorbance sensitivity. High-resolution detection resolves low-concentration nutrient levels critical for stringent discharge limits.

10. Repeatability and stability both <0.5%. Laboratory-grade precision in field conditions for defensible compliance data.

11. 80,000+ record onboard storage. Supports extensive monitoring campaigns across multiple discharge points without interruption.

12. Type-C, WiFi, and Bluetooth connectivity. Flexible data export to cloud platforms, LIMS systems, or portable Bluetooth printers.

13. 5,600 mAh lithium battery, 8-hour operation. Full-day field deployment covering multiple discharge monitoring points per charge.

14. 325 g portable form factor (190 × 77 × 72 mm). True single-hand operation for confined sampling locations.

15. HJ series national standard compliance. Results traceable to HJ/T399-2007, HJ535-2009, HJ671-2013, and HJ636-2012.

16. 280 nationwide service centers. 4-hour response in capital cities, blockchain-notarised ISO 9001 certificates for procurement audits.

Technical Specifications

FAQ

Q1: Can the HM-S104 replace four separate single-parameter instruments for discharge permit monitoring?

Yes. The HM-S104 measures COD, ammonia nitrogen, total phosphorus, and total nitrogen — all four parameters universally required under Chinese discharge permits. Each measurement follows its respective HJ series standard method, producing results with the same regulatory validity as dedicated single-parameter instruments. Facilities consolidate from four devices to one, reducing procurement, calibration scheduling, and training requirements.

Q2: What standards does the HM-S104 comply with for each parameter?

COD follows HJ/T399-2007 (rapid digestion spectrophotometry), ammonia nitrogen follows HJ535-2009 (Nessler reagent method), total phosphorus follows HJ671-2013 (ammonium molybdate spectrophotometry), and total nitrogen follows HJ636-2012 (alkaline potassium persulfate digestion UV spectrophotometry). These are nationally recognized methods accepted by environmental protection bureaus for discharge permit reporting.

Q3: How does the integrated smart digestor work with the HM-S104?

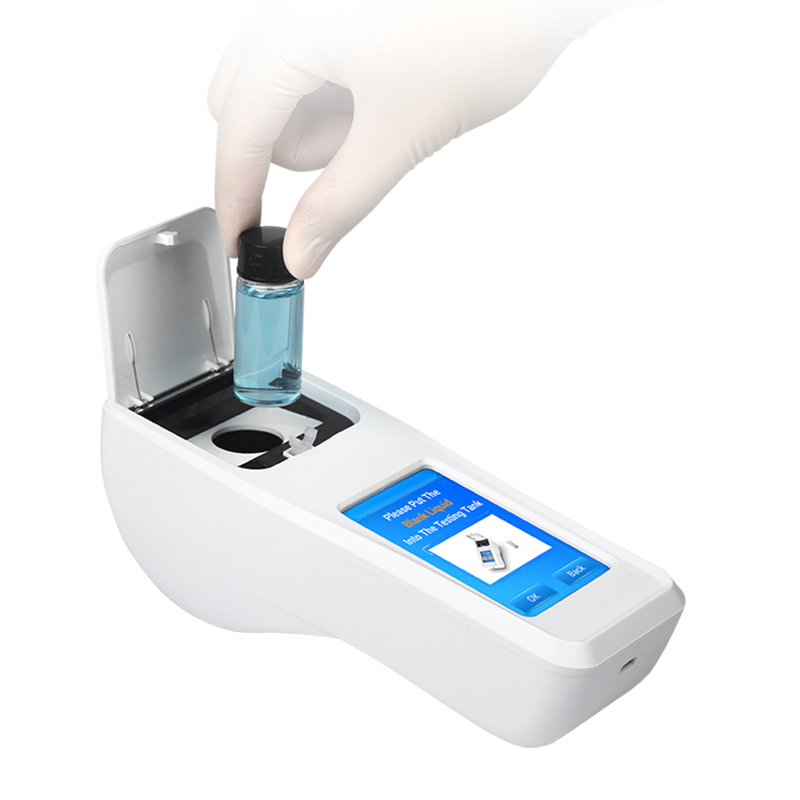

The six-chamber smart digestor uses PID temperature control (±0.5 °C, max 200 °C) for on-site sample digestion. Operators place reagent vials into the digestor, run the digestion program (15–30 minutes depending on parameter), then transfer the cooled vial directly into the HM-S104 for colorimetric measurement. This eliminates transporting samples back to a central laboratory.

Q4: Is the HM-S104 suitable for municipal wastewater treatment plants?

The HM-S104 is designed for municipal plant operations. Operators can test influent and effluent at multiple process stages using all four parameters, generating complete datasets for daily operational records and regulatory reports. The 80,000+ record capacity and WiFi/Bluetooth connectivity support integration with plant SCADA or environmental data platforms.

Q5: What is the cost saving compared to purchasing four individual detectors?

A four-instrument configuration typically costs $2,500–$3,000 total. The HM-S104 at $1,100 covers all four parameters, saving approximately 60–65% on initial equipment cost. Additional savings come from reduced calibration expenses (one instrument vs four), simplified training, and consolidated data management.

Q6: Can one HM-S104 serve multiple discharge monitoring points?

Yes. At 325 g with 8-hour battery life, the HM-S104 is designed for mobile deployment. A single operator can carry the instrument and digestor to each discharge point, complete all four tests, and move to the next location. For large facilities with more than five simultaneous monitoring points, multiple units improve efficiency.
