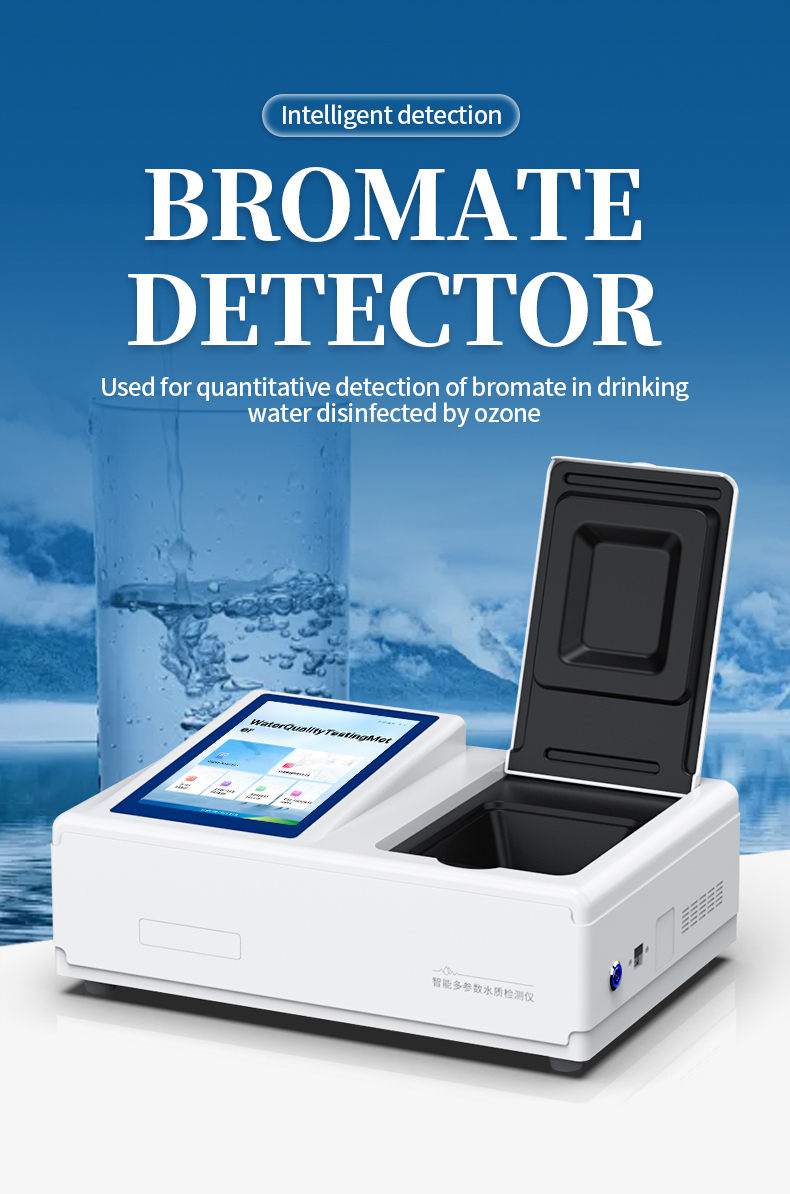

Bromate Analyzer HM-TBr

Equipment Introduction:

The water quality bromate rapid detector is an instrument for detecting the content of bromate in water, suitable for quantitative detection of bromate in mineral water, purified water, purified water, and various packaged drinking water after ozone disinfection.

Widely used:

It can be widely applied in production inspection of drinking water plants, quality supervision by market supervision departments, quality sampling of large supermarkets, disease control centers, health monitoring, etc.

Functional features:

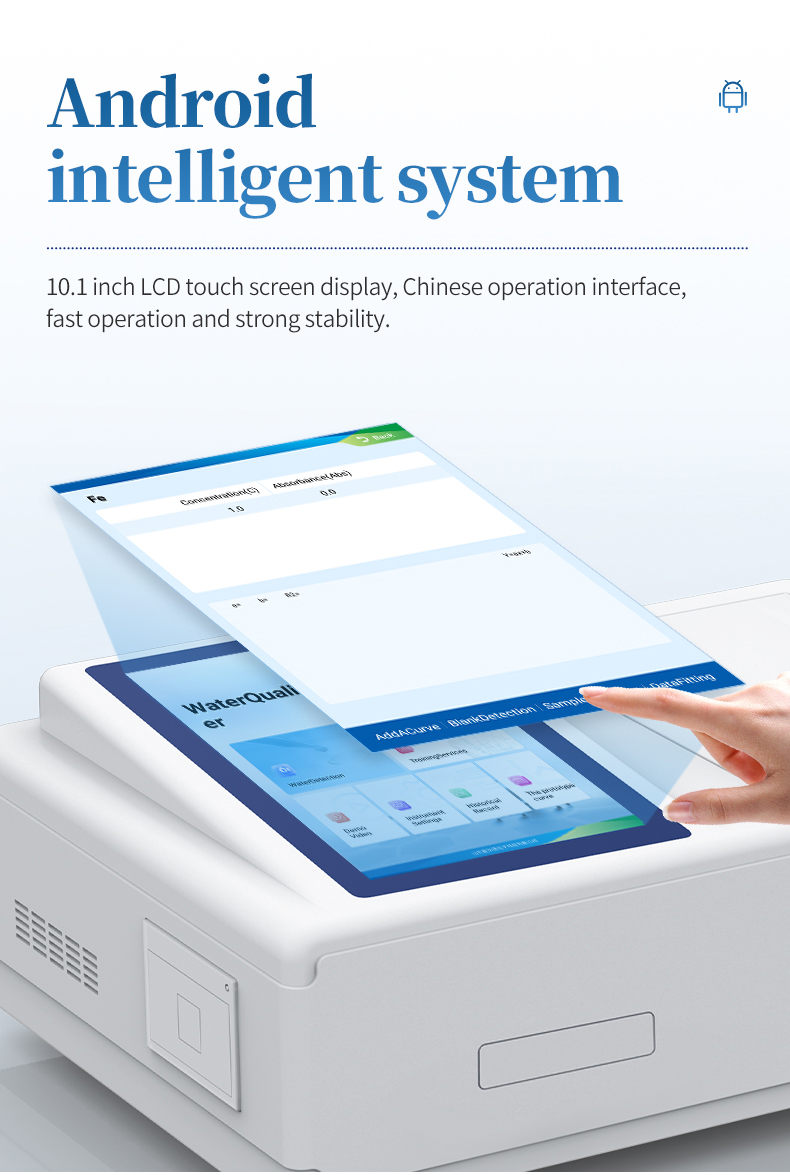

1. Adopting the brand new Android 7.1.1 intelligent operating system, with a user-friendly Chinese interface, it runs faster and has stronger stability.

2. 10.1-inch LCD touch screen display, user-friendly Chinese operation interface, intuitive and simple reading.

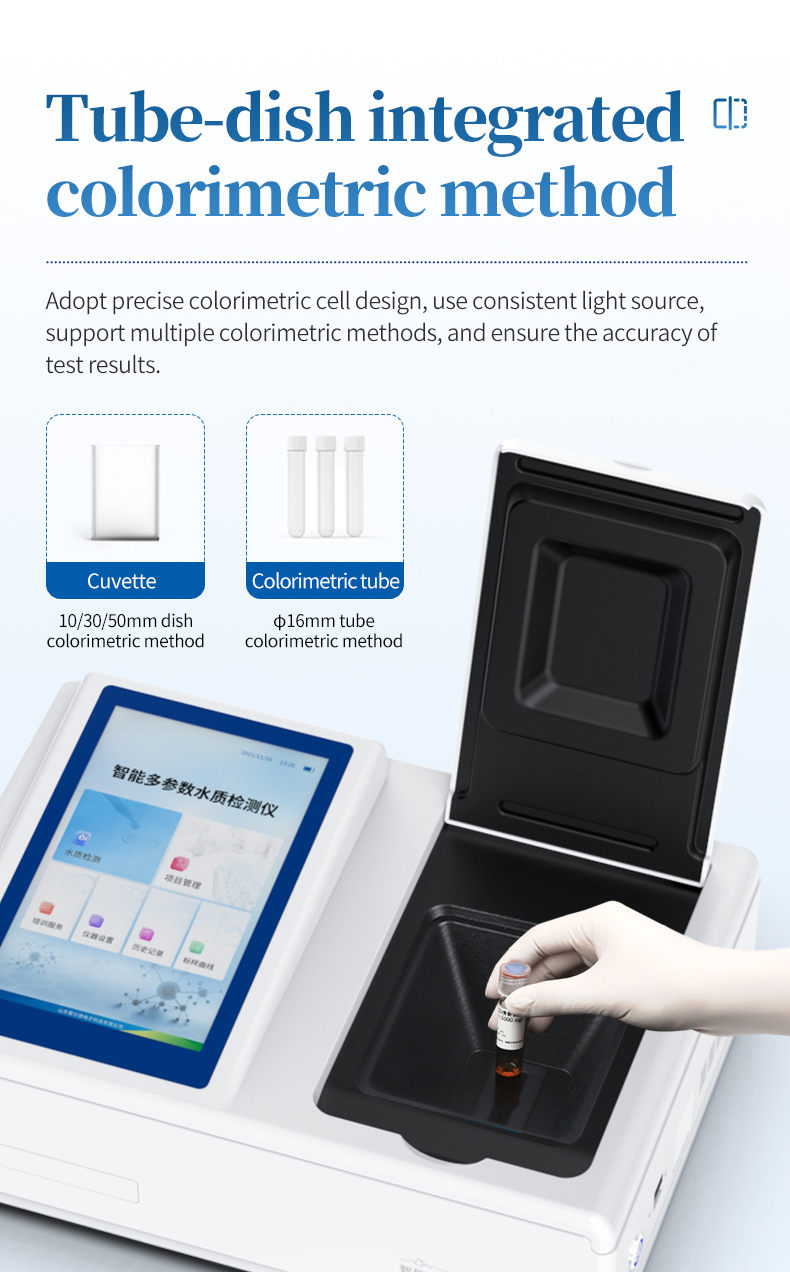

3. Adopting a precise colorimetric cell design and using consistent light sources can solve the problem of detection result errors caused by light source errors, resulting in more accurate detection results.

4. The light source adopts imported ultra high brightness light-emitting diodes, and the brightness of the light source can be automatically adjusted and calibrated.

5. Support color comparison methods such as 10mm, 30mm, 40mm, 50mm dish color comparison, and φ 16mm tube color comparison, with multiple choices to ensure measurement accuracy;

6. Equipped with wireless communication function, supporting WIFI, RJ45, mobile hotspot network transmission, and detection data can also be exported through USB flash drive;

7. Multi functional sample management, capable of naming samples in both Chinese and English, facilitating sample recording and data storage;

8. The instrument can permanently store 8 million sets of data, and for the convenience of searching for large amounts of data, it can be retrieved through time and analyzed at will;

9. Support HDMI output, convenient for user training, explanation, and large screen display.

10. The instrument is equipped with a supervision cloud platform, and the data can be uploaded through the LAN and the Internet, and can also be docked and uploaded to the platform of the environmental supervision department.

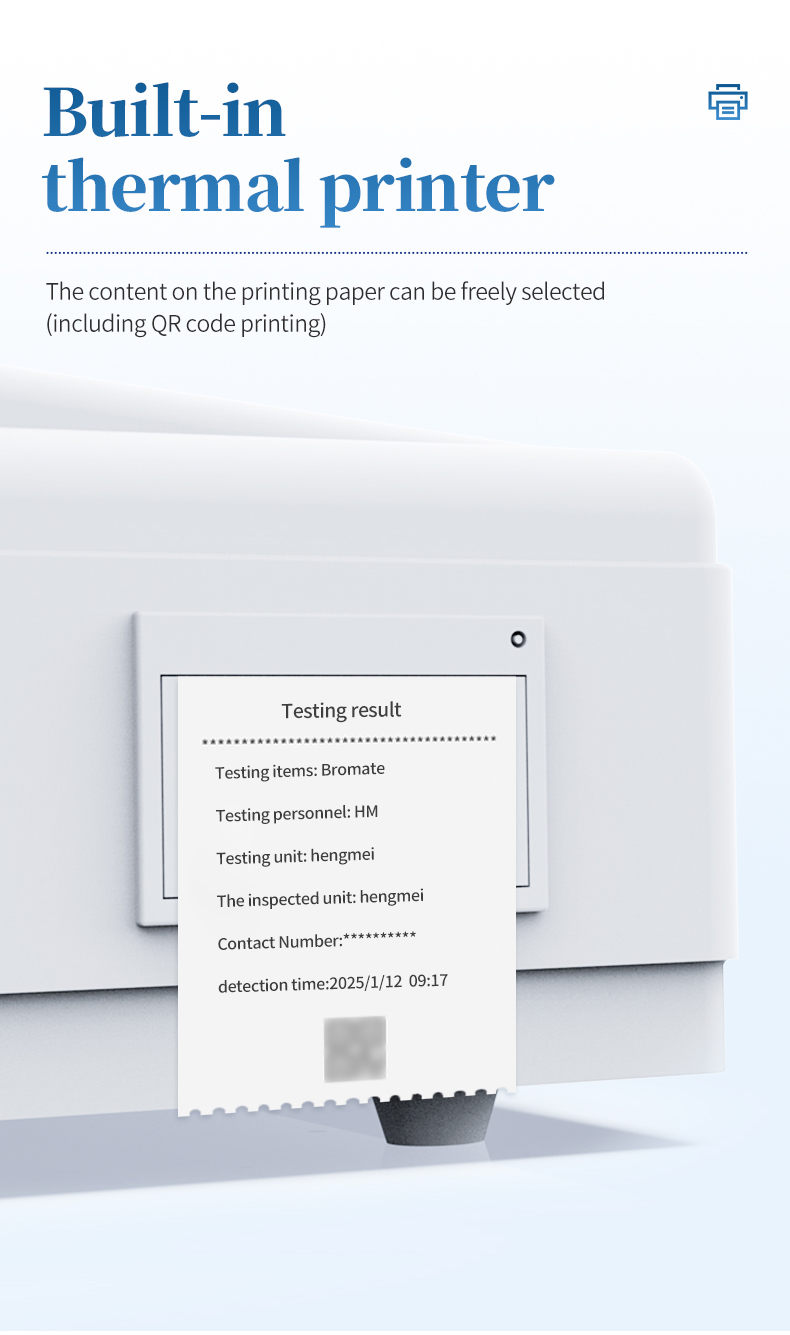

11. Built in thermal line printer, the content on the printing paper can be freely selected (including QR code printing);

12. AC 220V, optional 6-speed large capacity rechargeable lithium battery, convenient for outdoor mobile testing;

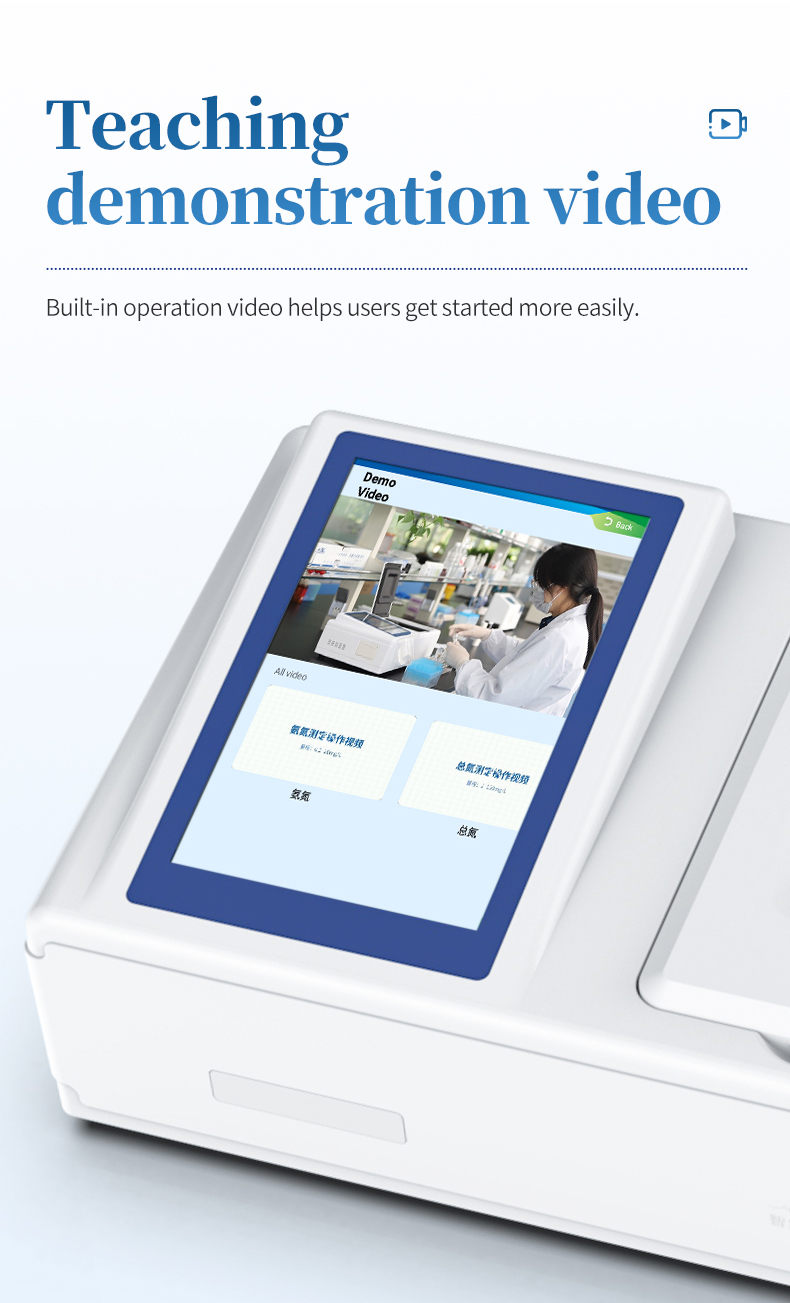

13. Built in teaching demonstration videos, users can watch the operation videos inside the instrument while conducting experimental operations, making it easier to get started.

14. The firmware of the later product can be upgraded.

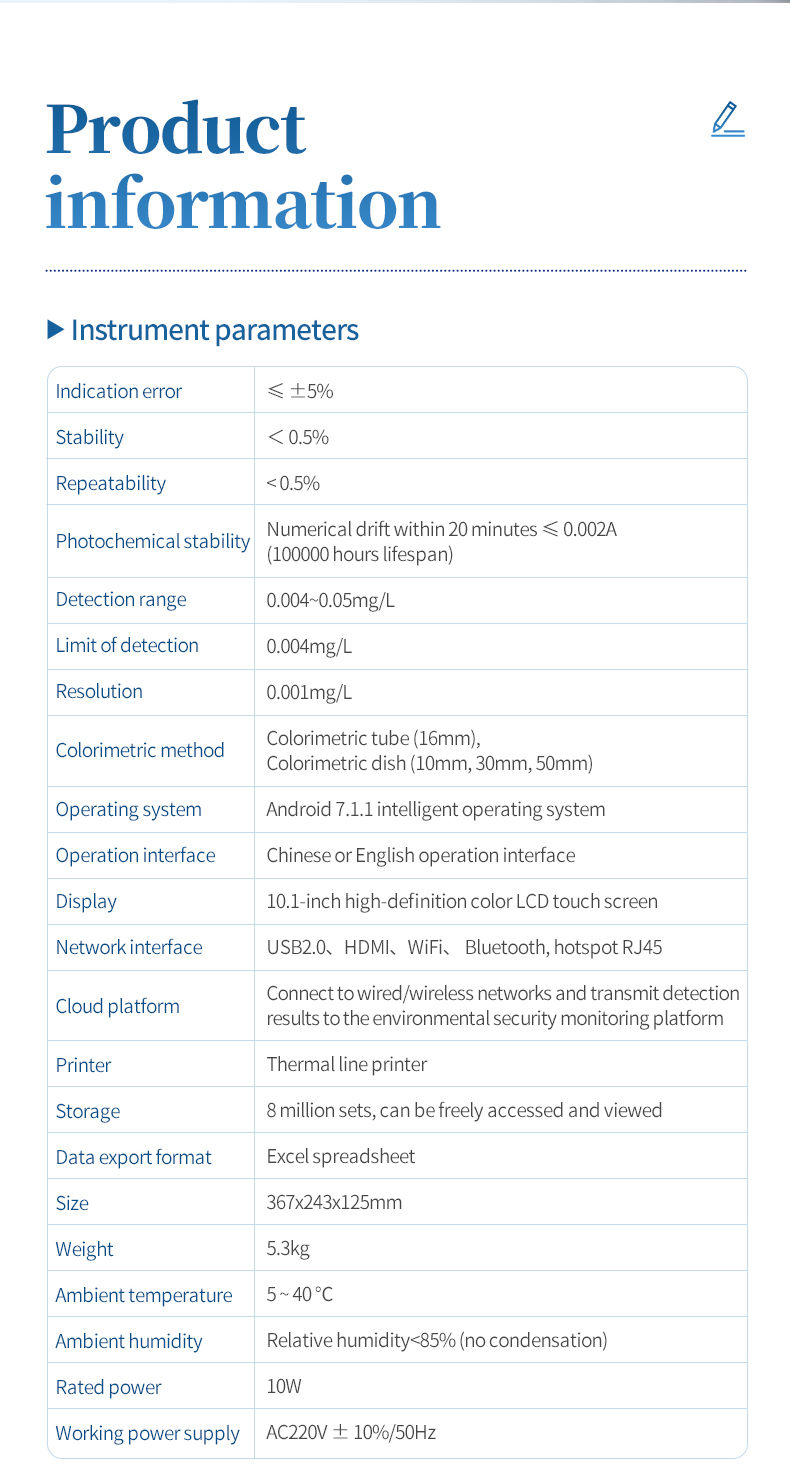

Technical parameters:

Indication error: ≤± 5%;

Instrument stability:<0.5%;

Instrument repeatability:<0.5%;

Photochemical stability: numerical drift within 20 minutes ≤ 0.002A (100000 hours lifespan);

Detection range: 0.004-0.05mg/L;

Detection limit: 0.004mg/L;

Resolution: 0.001mg/L;

Color comparison method: Supports color comparison methods such as 10mm, 30mm, 40mm, 50mm dish color comparison, and φ 16mm tube color comparison

Operating system: Android 7.1.1 intelligent operating system;

Operation interface: Chinese or English operation interface;

Display screen: 10.1-inch high-definition color LCD touch screen;

Network interfaces: USB 2.0, HDMI, WiFi, Bluetooth, hotspot RJ45;

Cloud platform: The instrument is equipped with a monitoring platform, connected to wired/wireless networks, and the detection results are directly transmitted to the environmental safety monitoring platform;

Printer: Thermal line printer;

Data storage: 8 million sets, can be freely accessed and viewed;

Data export format: Excel spreadsheet;

Instrument size: 367x243x125mm;

Instrument weight: 5.3kg;

Environmental temperature: (5-40) ℃;

Environmental humidity: Relative humidity<85% (no condensation);

Rated power: 10W;

Working power supply: AC220V ± 10%/50Hz;

Configurable: Large capacity lithium battery.
