location:HOME>PRODUCT>Multi Parameter Water Quality Analyzer>Handheld Water Quality Detector (sensor)>Portable Multi-parameter Water Quality Analyzer
+86 17853698681Product details
Brief introduction

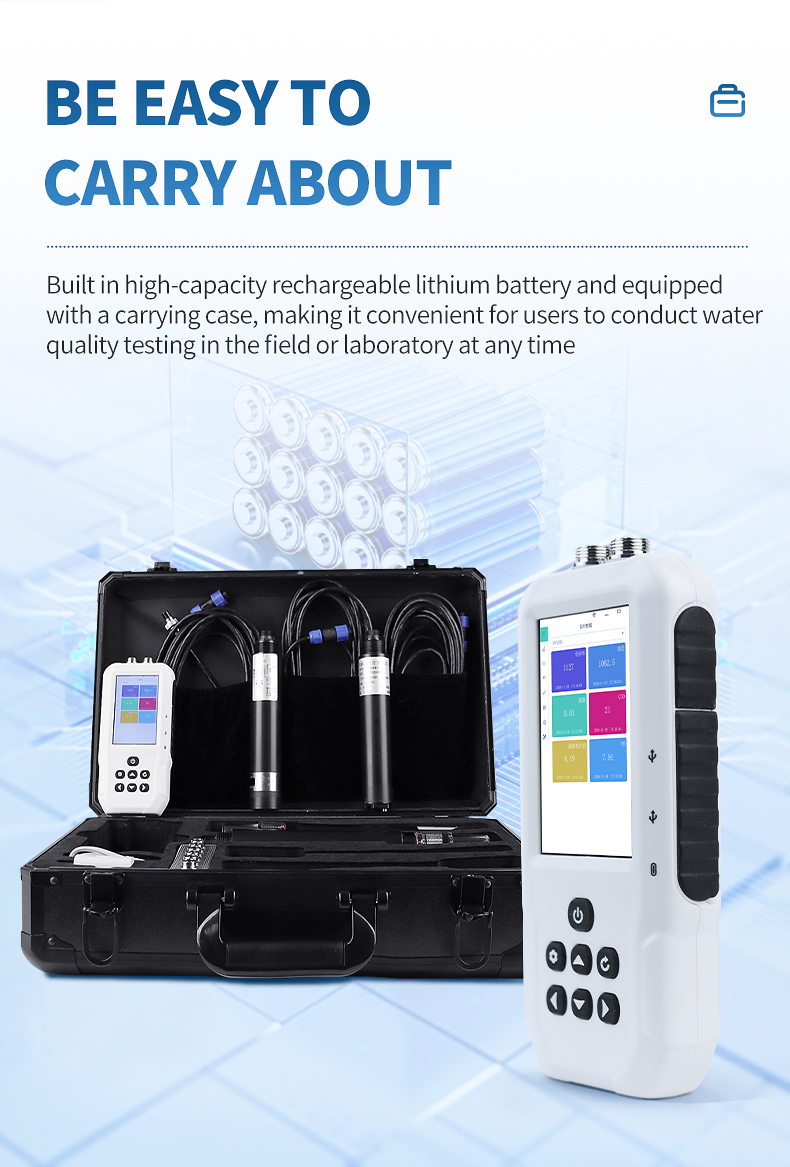

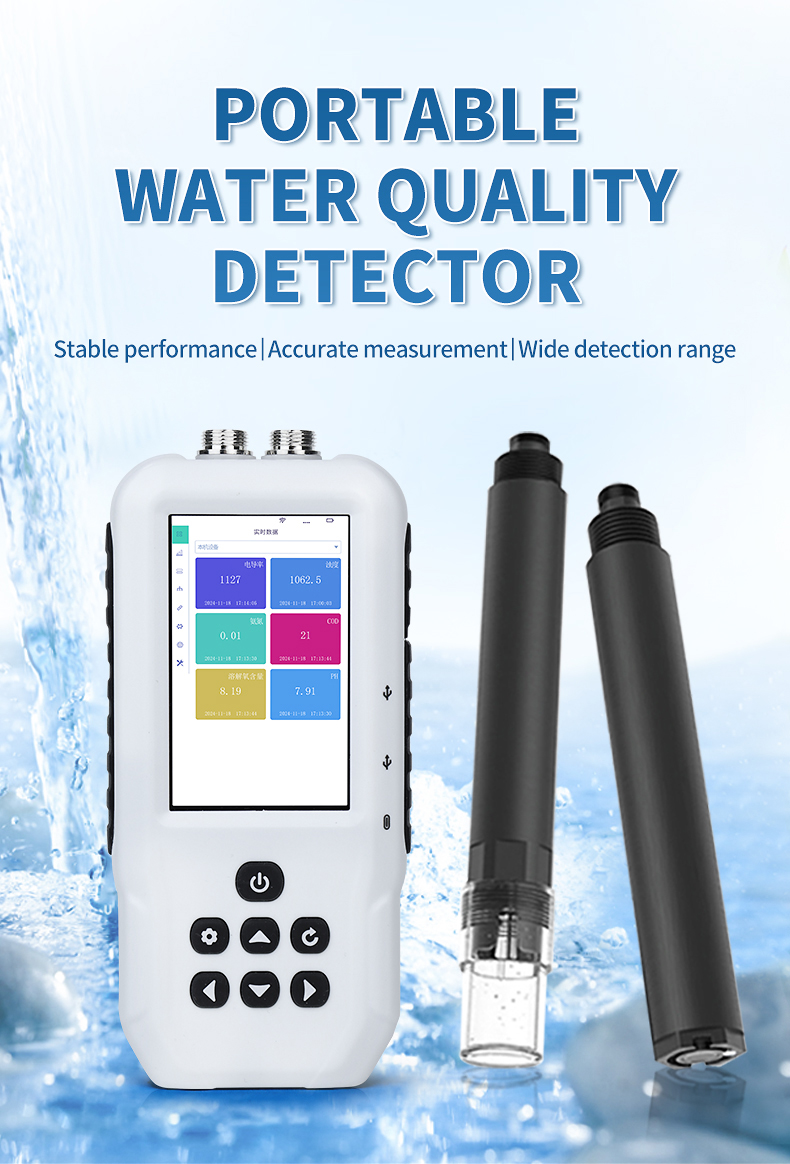

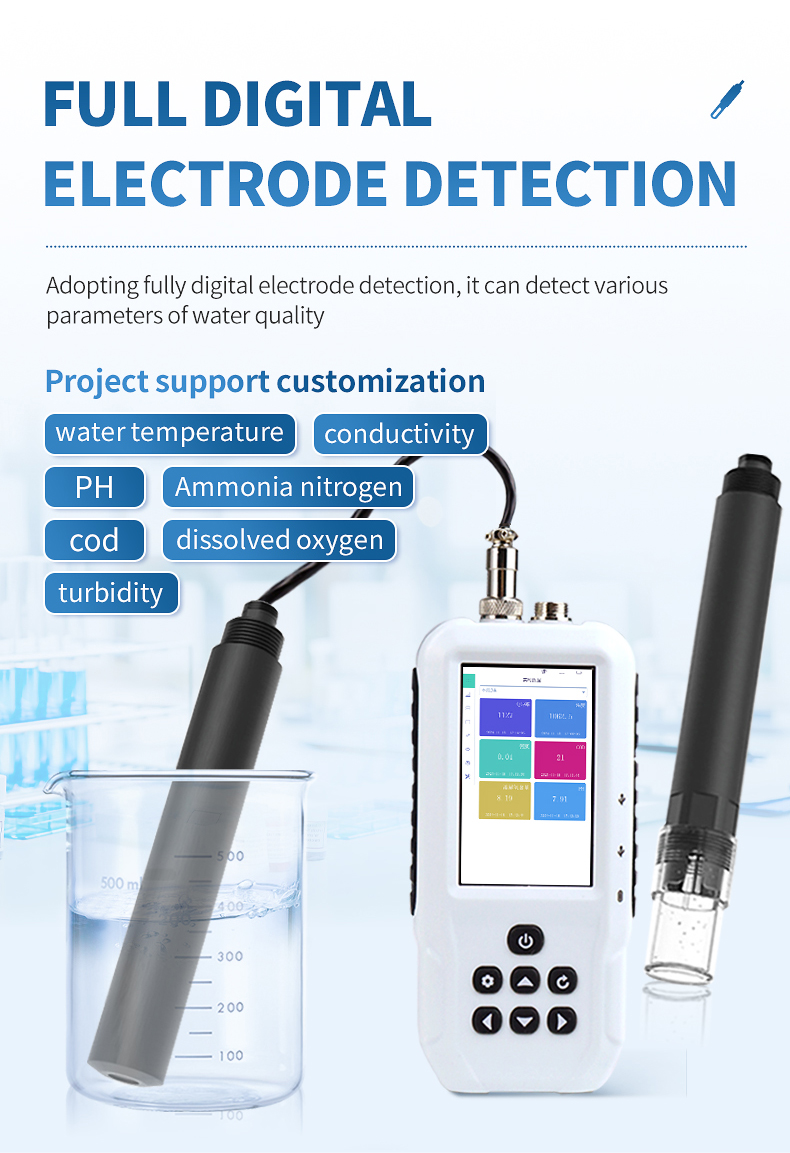

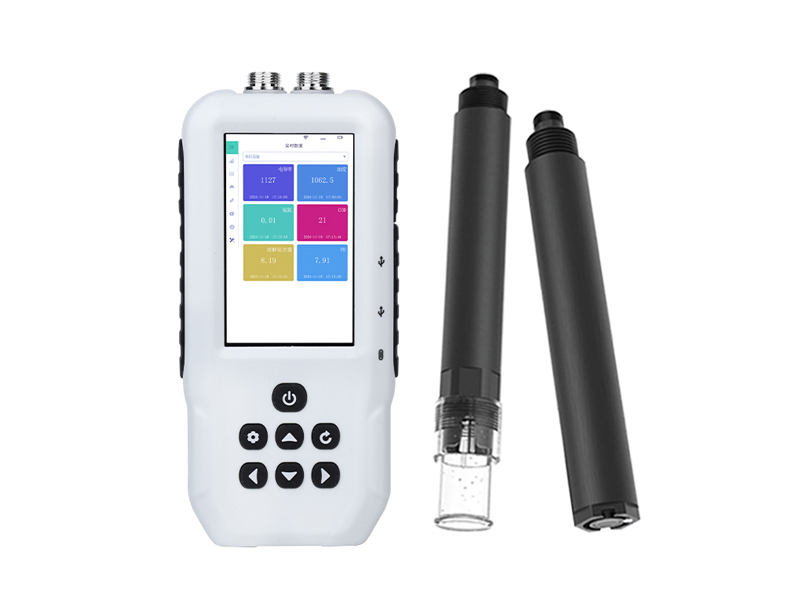

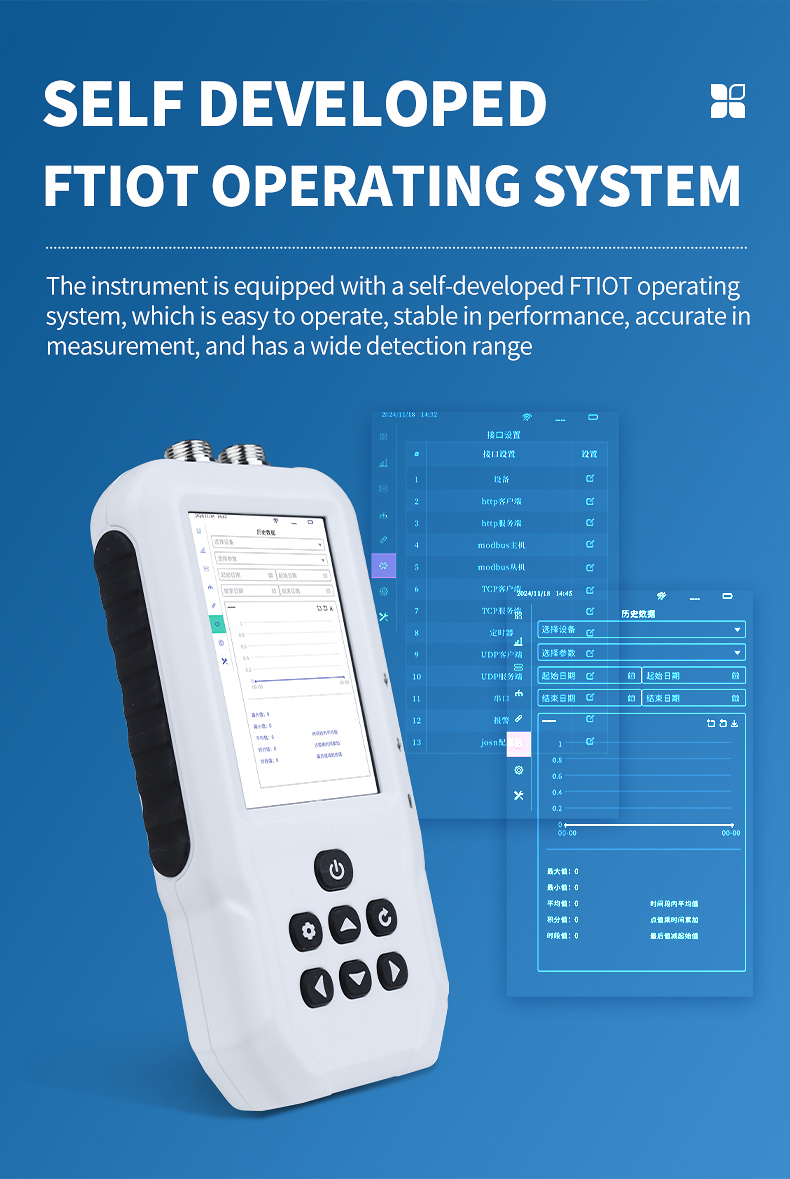

The SS03A portable multi parameter water quality analyzer is an electrode based water quality analysis instrument that uses fully digital electrodes for detection. It can measure water temperature, ORP, and pH parameters. The instrument is equipped with a self-developed FTIOT operating system, which is easy to operate, stable in performance, accurate in measurement, and has a wide detection range. It is also equipped with a high-capacity rechargeable lithium battery, making it convenient for users to conduct water quality testing in the field or laboratory at any time.

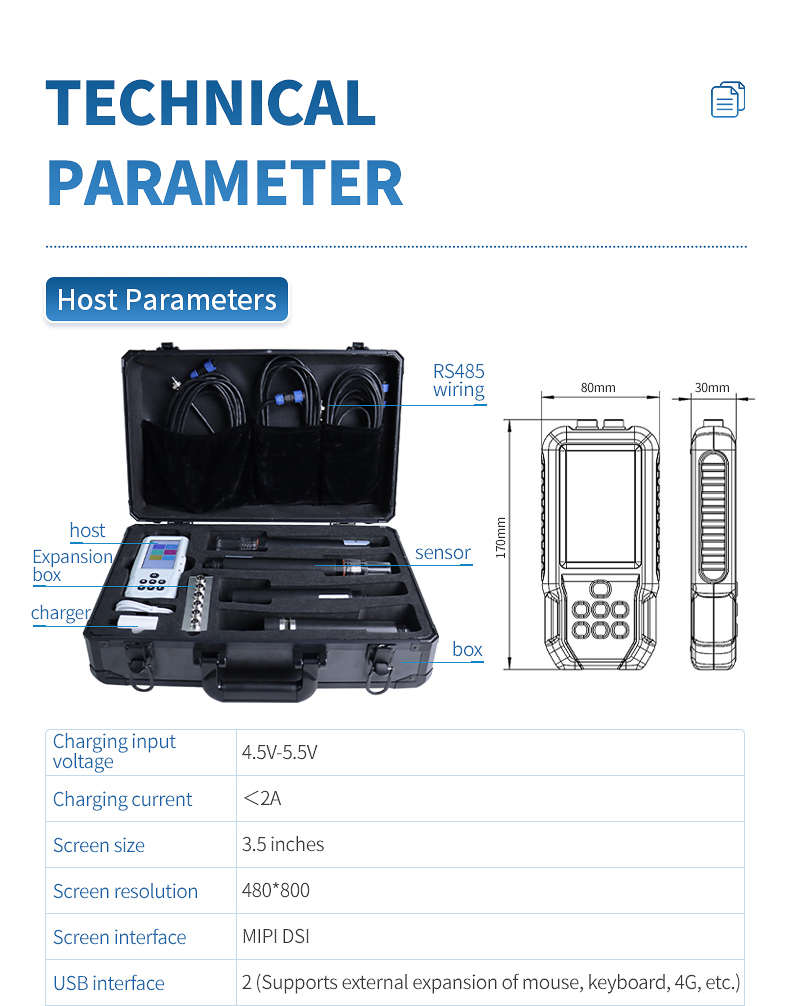

Host parameters
Charging input voltage | 4.5V-5.5V |
Charging current | < 2A |

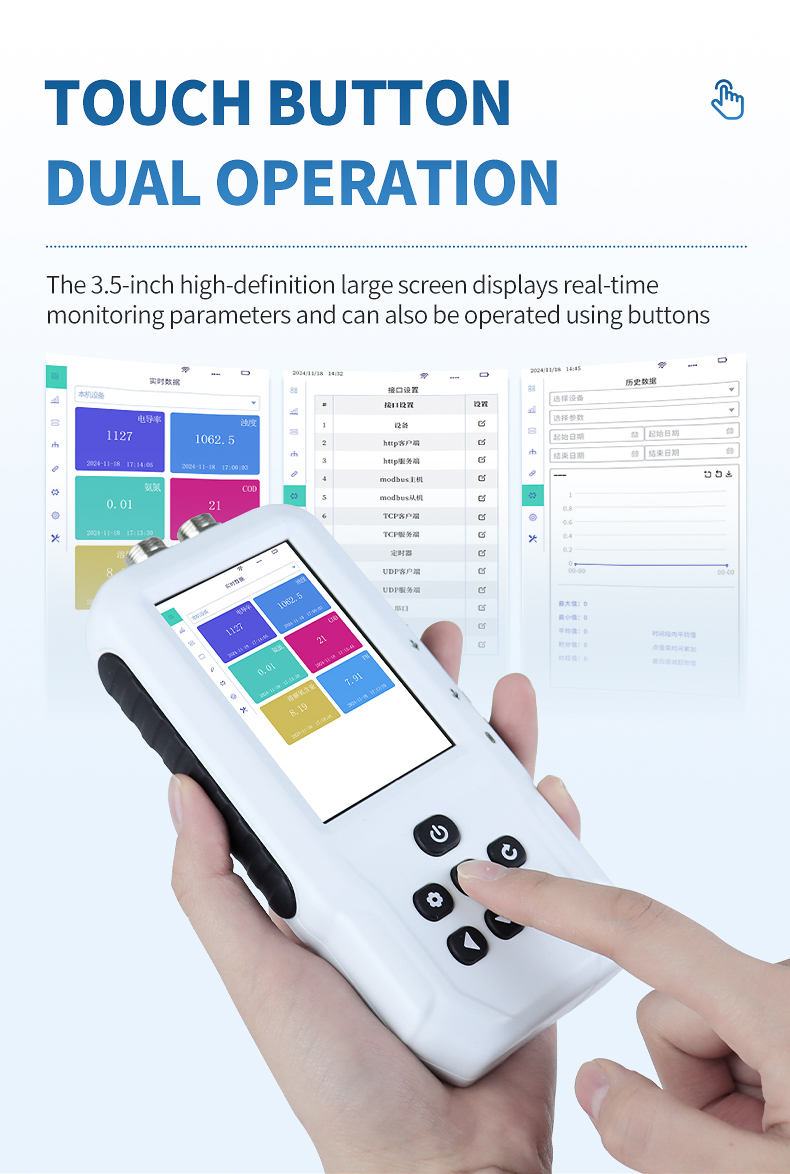

Screen size | 3.5 inches |
Screen resolution | 480 * 800 ☆ |
Screen interface | MIPI DSI ☆ |
USB interface | 2 (supports external mouse, keyboard, 4G, etc.) ☆ |
Type-C | 1 (supports external mouse, keyboard, 4G, etc.) ☆ |
RS485 | 2 (supports Modbus, JSON, ASC inputs, etc.) |
External sensor power supply voltage | 12V |
External sensor power supply current | 1A |
Operating system | ftiot (based on Linux-5.4) ☆ |
CPU | 2*Cotex-A7，650Mhz ☆ |
RAM | 512M DDR3 ☆ |
Flash | 8G-64G |
OpenGL | ES 2.0 ☆ |
WiFi | support |
4G | optional |
Button | support |
Capacitive touch screen | support |
Software Architecture | B/S ☆ |
Web access | support ☆ |
MTP mode | supports ☆ |
Multi terminal login | support ☆ |
IPV6 | support ☆ |

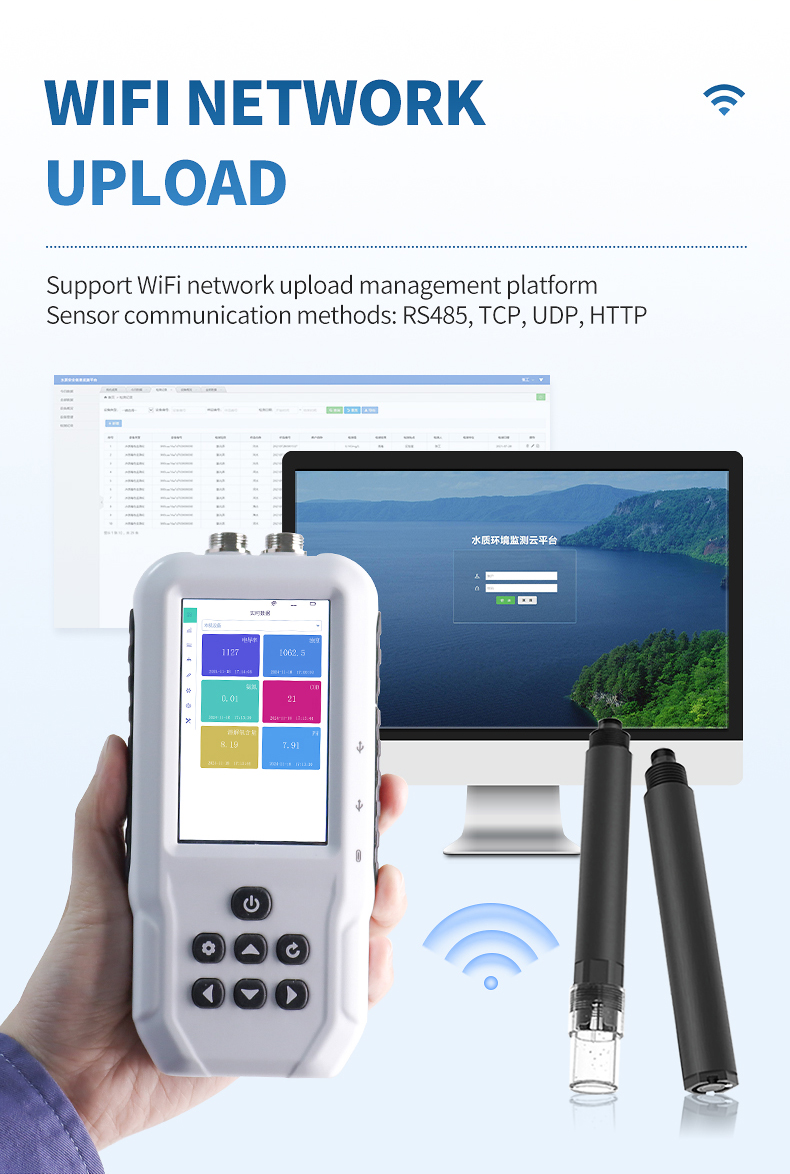

Sensor communication methods include | RS485, TCP, UDP, HTTP ☆ |
Data forwarding methods include | RS485, TCP, UDP, HTTP ☆ |
Remote SSH | support ☆ |
| Remote debugging | support ☆ |
