Phosphate Analyzer

Phosphate Analyzer HM-LSG

【Introduction】Configured for soluble phosphate testing in desalinated water, steam condensate and boiler water, with selectable 0–5 mg/L and 0–50 mg/L ranges.
Phone Icon+86 17853698681

Product details

Phosphate and silicate analyzer feature overview with touch screen, automatic sampling, wireless data and cleaning

Application areas for phosphate and silicate analysis in industrial water testing

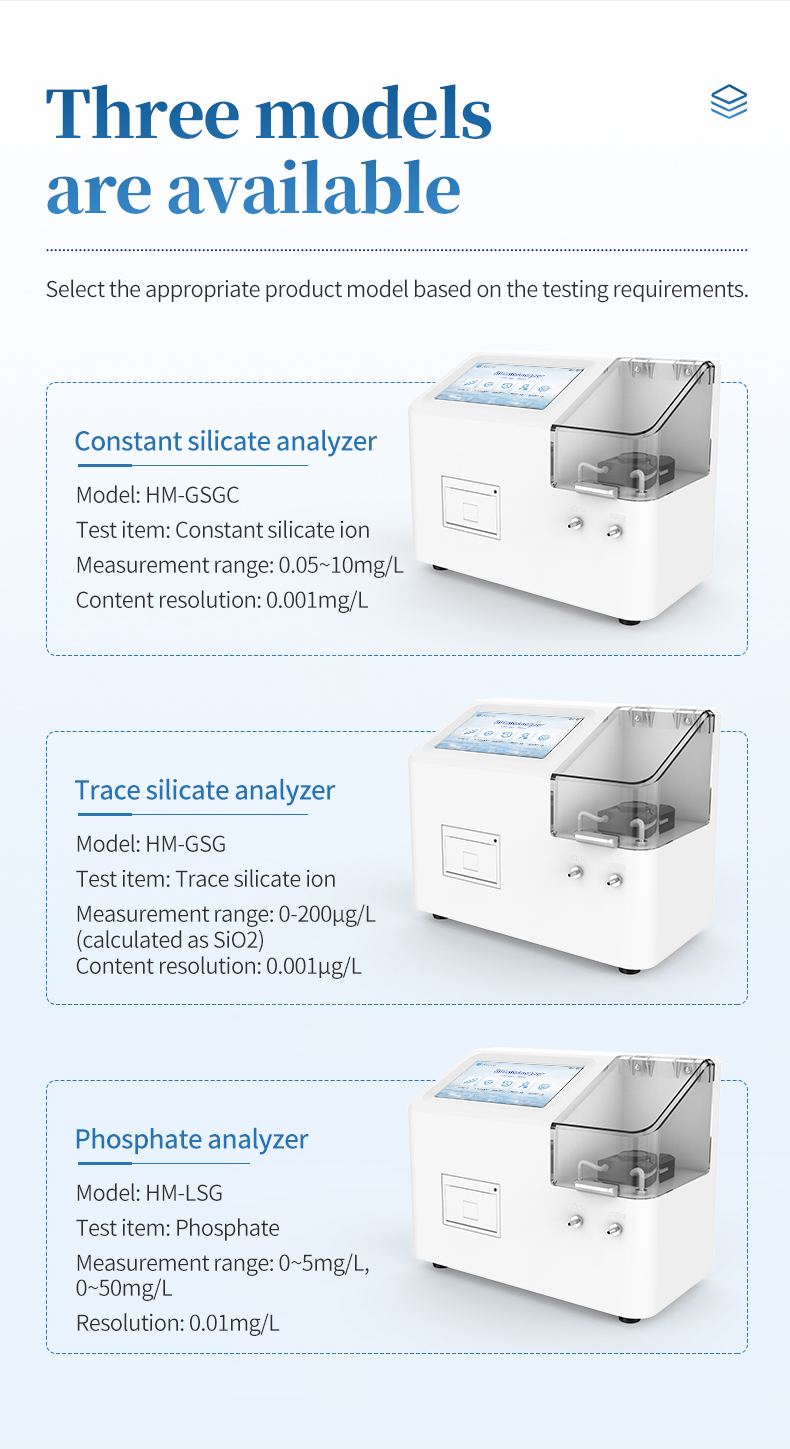

Comparison of HM-GSGC, HM-GSG and HM-LSG analyzer models

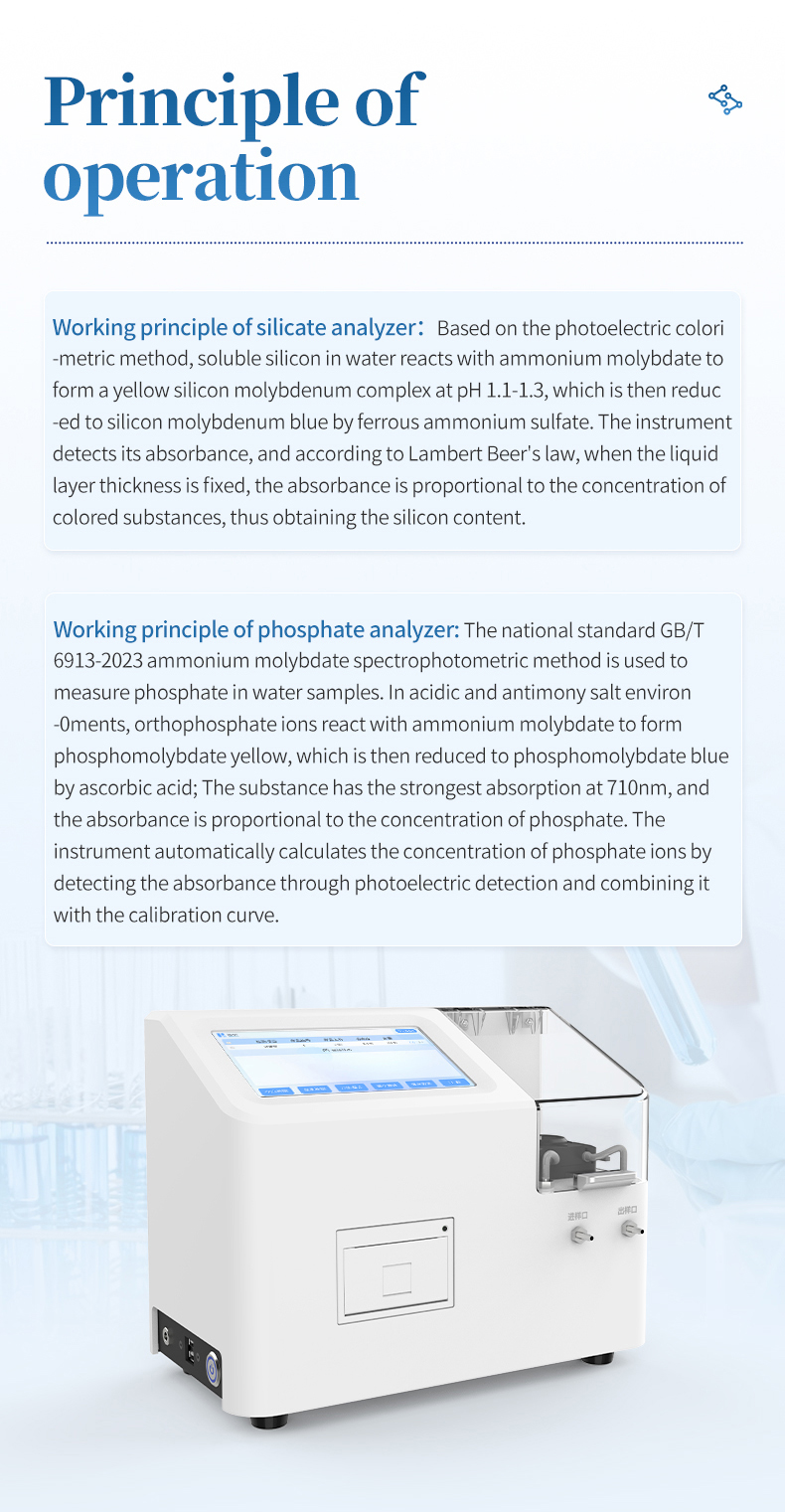

Photoelectric colorimetric principles for silicate and phosphate analysis

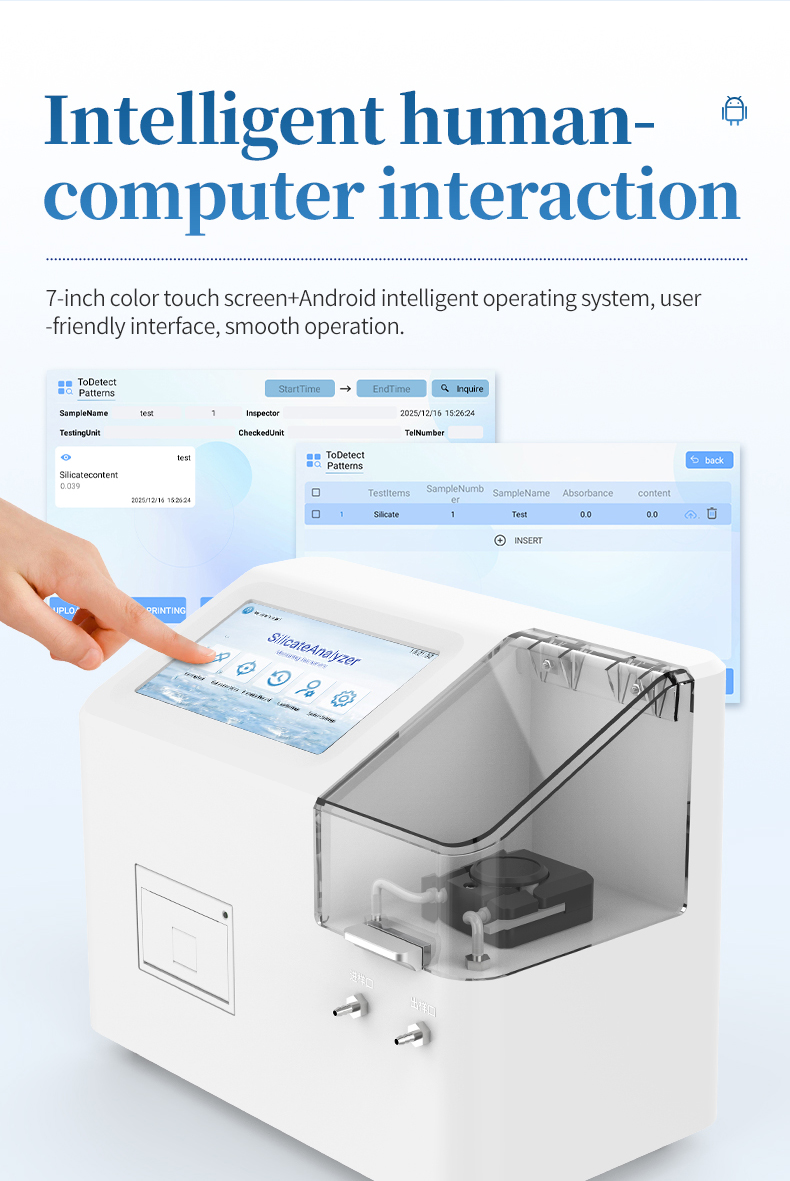

Analyzer seven-inch color touch screen and Android user interface

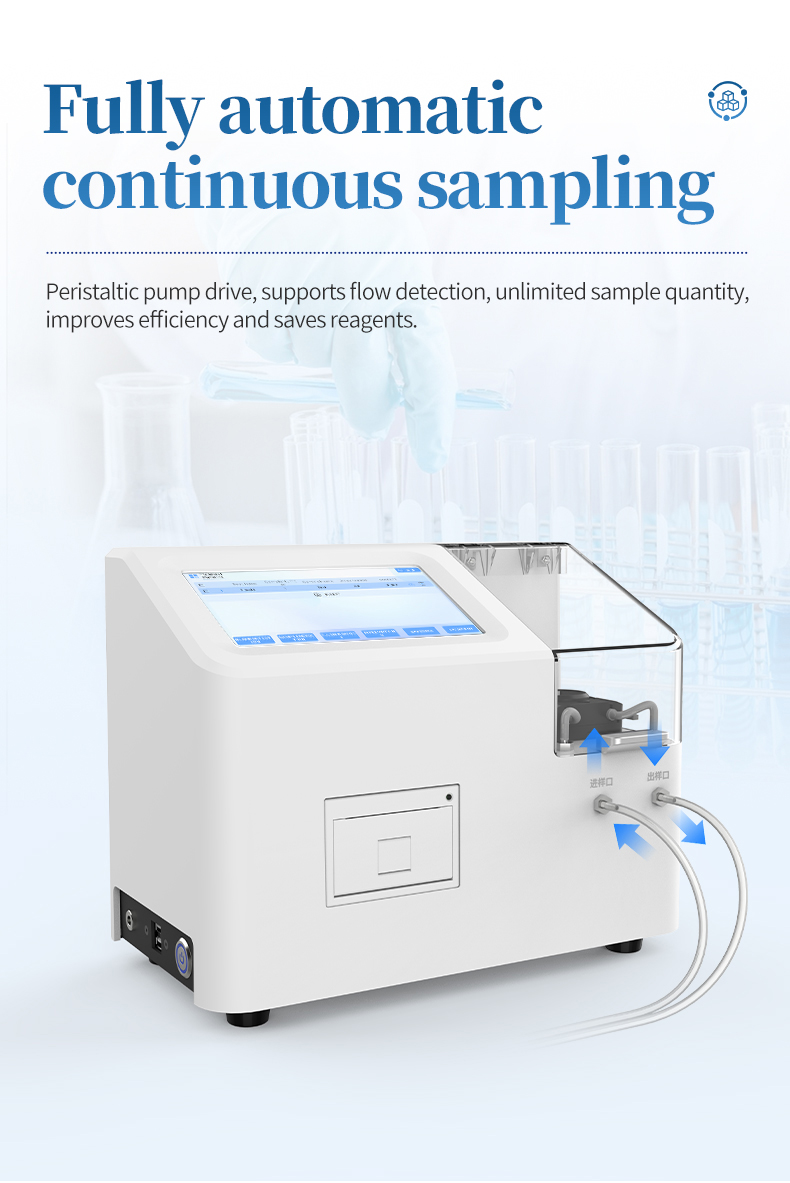

Analyzer peristaltic pump for automatic continuous flow sampling

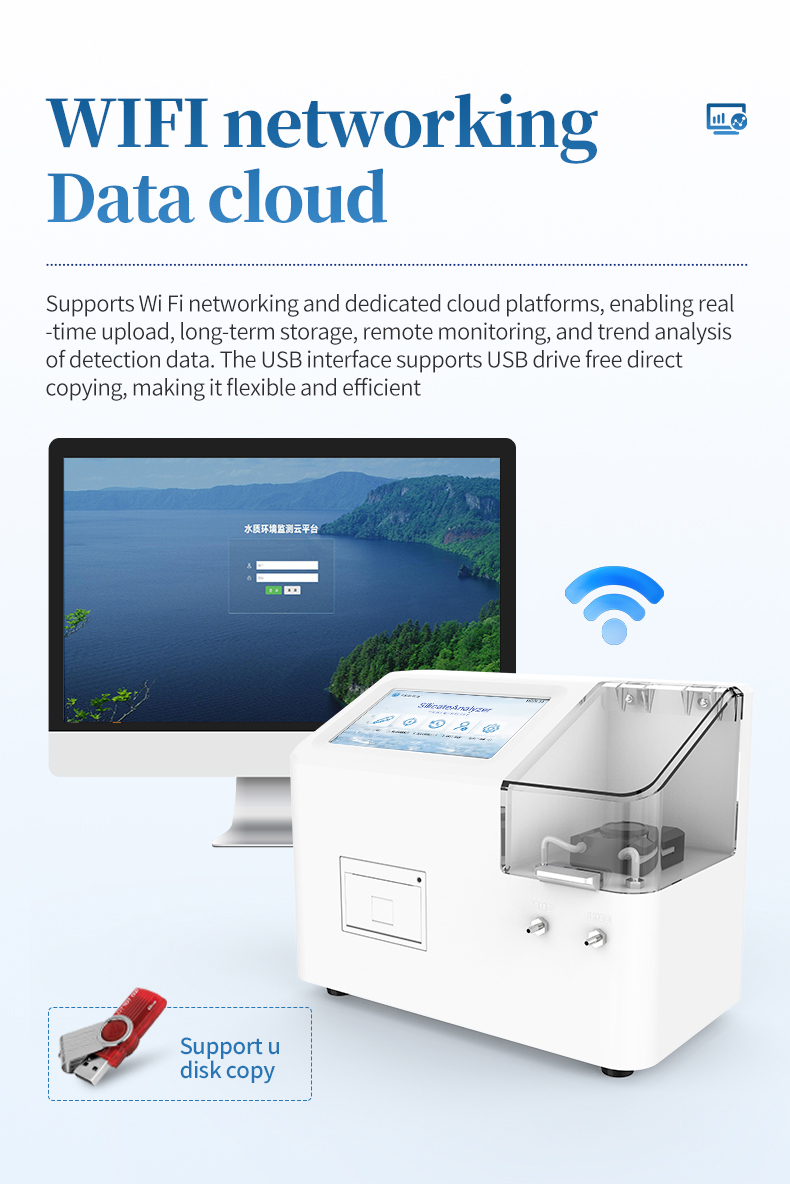

Analyzer Wi-Fi networking, cloud data and USB export functions

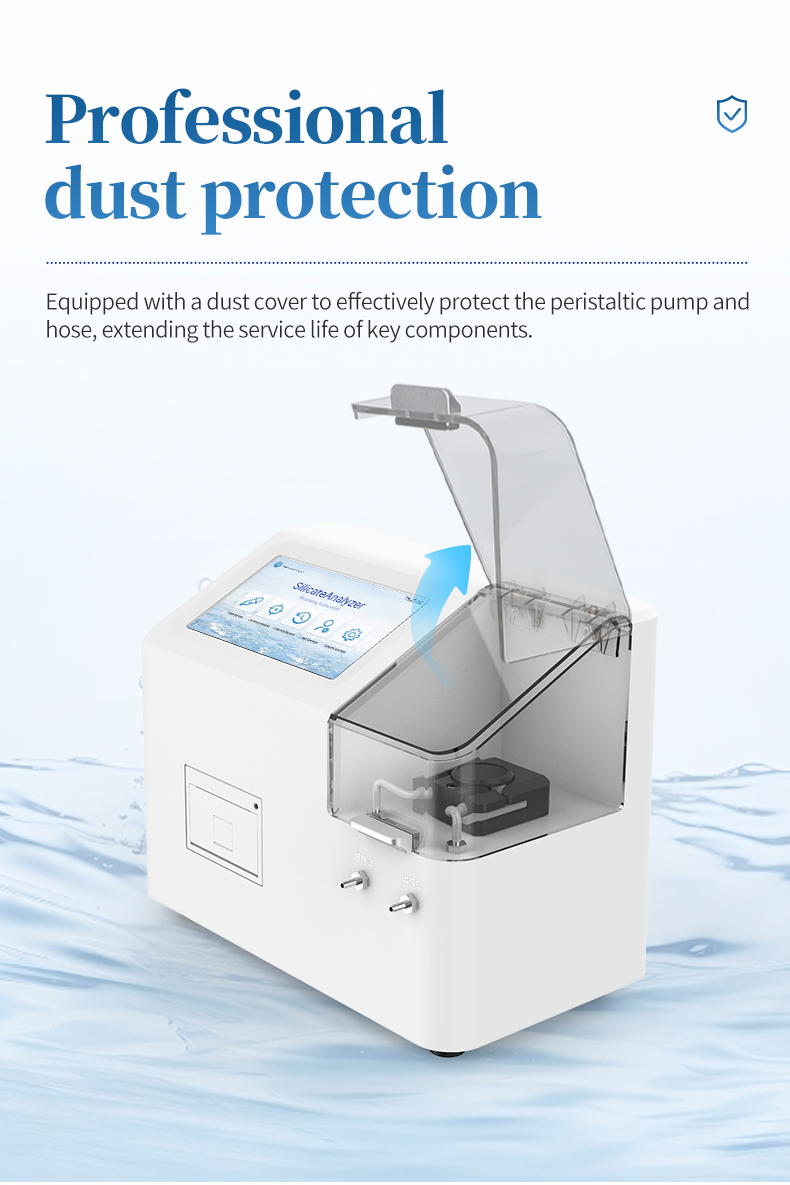

Analyzer protective cover over the peristaltic pump and tubing

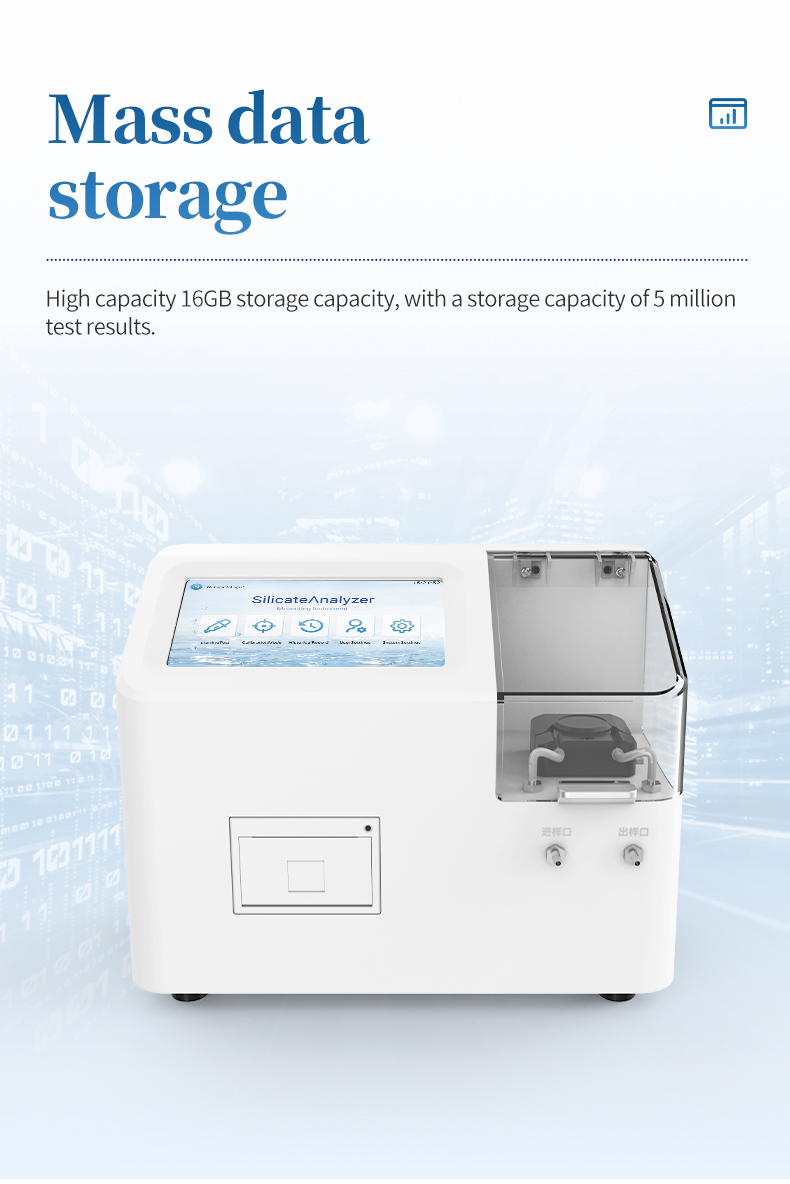

Analyzer data storage capacity and front-view instrument design

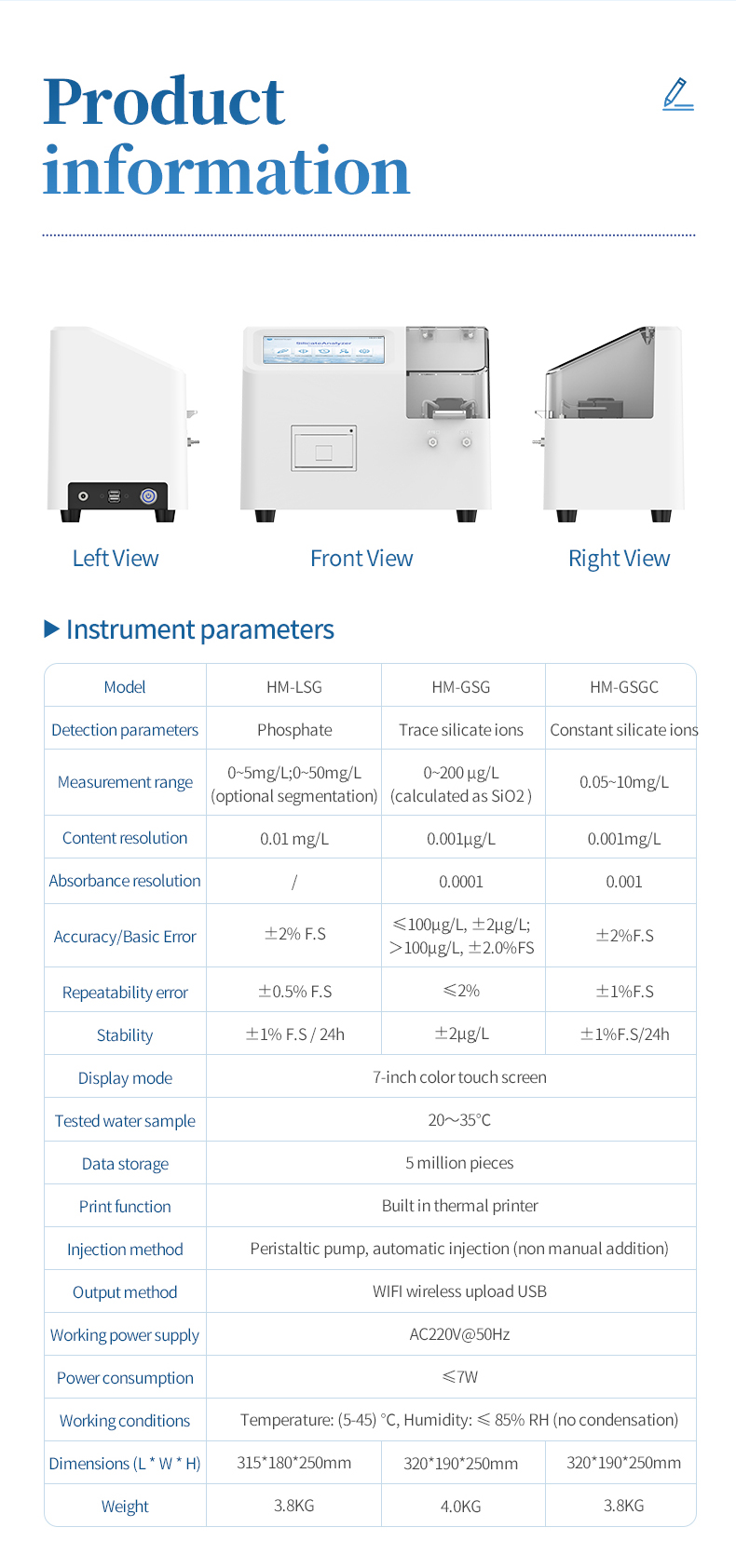

Analyzer front, left and right views with instrument parameter table

Product Overview

HM-LSG is intended for laboratory and process-support measurement of soluble phosphate ions in water-quality workflows. It uses automatic peristaltic-pump injection and photoelectric colorimetric detection. The instrument is described for desalinated water, steam condensate and boiler water, including testing work in power plants and related chemical, fertilizer, metallurgy, environmental protection, pharmaceutical, chemical fiber and semiconductor settings.

Measurement Principle

The method references GB/T 6913-2023 for phosphate determination in boiler and cooling water. In an acidic medium with antimony salt, orthophosphate reacts with ammonium molybdate to form phosphomolybdate yellow. Ascorbic acid reduces the complex to phosphomolybdate blue. Its absorbance is strongest at 710 nm, and the instrument uses photoelectric detection and an internal calibration curve to calculate concentration as phosphate (PO₄³⁻).

Workflow Features

  • Automatic flow injection supports continuous multi-sample testing without manual addition.

  • Preset and user-defined calibration curves support routine analysis and method development.

  • Wi-Fi upload, USB export, built-in thermal printing and storage for up to 5 million results support record handling.

  • Automatic pipeline cleaning is available after detection; the pump and tubing are covered by a protective dust cover.

Applications

  • Phosphate monitoring in desalinated water, steam condensate and boiler water.

  • Laboratory or process-support testing for power generation, chemical and fertilizer production, metallurgy, environmental protection, pharmaceuticals, chemical fiber and semiconductor operations.

  • Confirm sample matrix, preparation and the selected range before applying the analyzer to a specific control procedure.

Technical Specifications

ParameterSpecification
Detection parameterPhosphate
Measurement range0–5 mg/L or 0–50 mg/L, selectable by segment
Resolution0.01 mg/L
Basic error±2% F.S.
Repeatability error±0.5% F.S.
Stability±1% F.S. / 24 h
Measured water sample20–35°C
InjectionPeristaltic pump, automatic injection
OutputWi-Fi wireless upload and USB
Storage / printing5 million results; built-in thermal printer
PowerAC 220 V @ 50 Hz; ≤7 W
Working conditions5–45°C; ≤85% RH, no condensation
Dimensions / weight315 × 180 × 250 mm; 3.8 kg
