Constant Silicate Analyzer

Constant Silicate Analyzer HM-GSGC

【Introduction】Configured for routine soluble silicate testing in desalinated water, steam condensate and boiler water, with a 0.05–10 mg/L range.
Phone Icon+86 17853698681

Product details

Phosphate and silicate analyzer feature overview with touch screen, automatic sampling, wireless data and cleaning

Application areas for phosphate and silicate analysis in industrial water testing

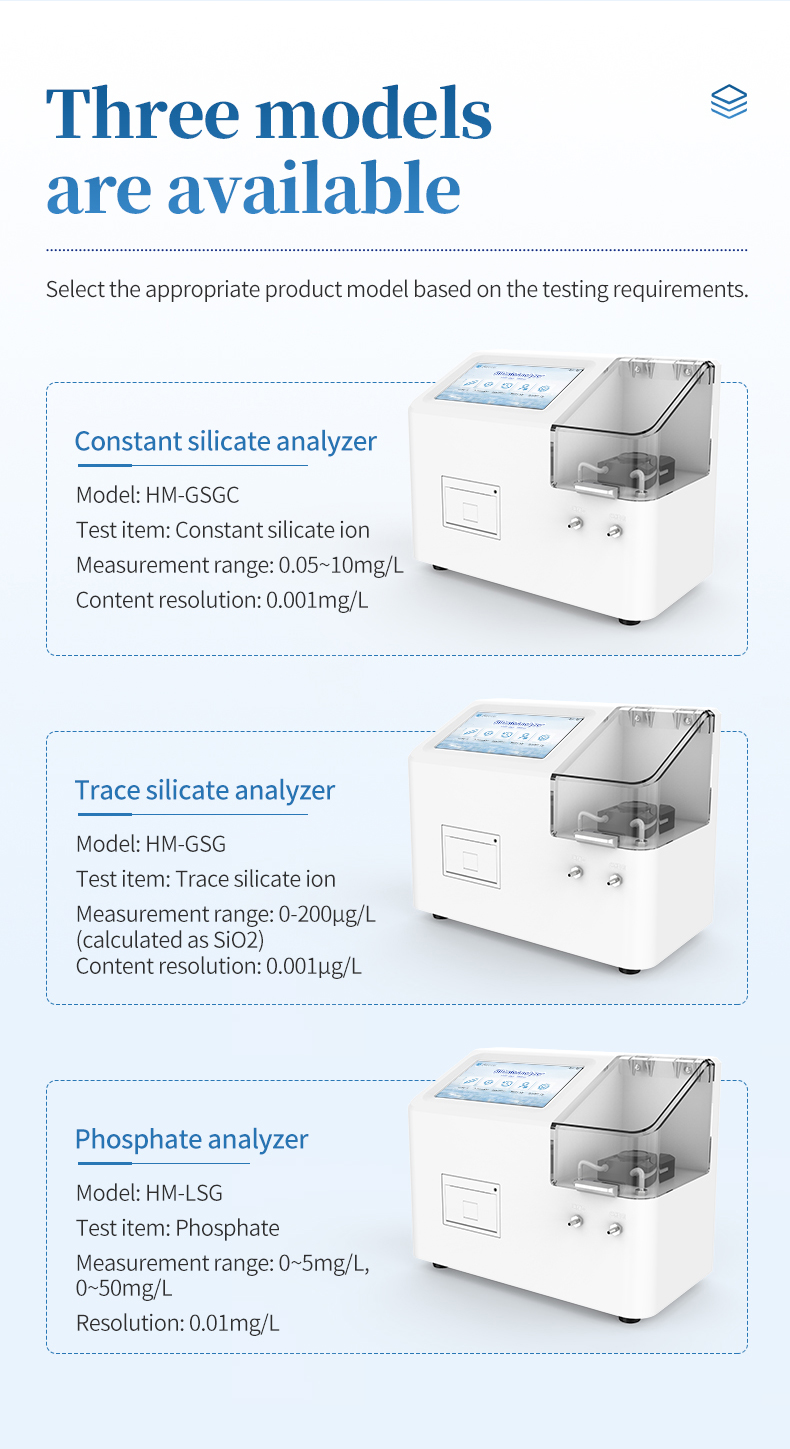

Comparison of HM-GSGC, HM-GSG and HM-LSG analyzer models

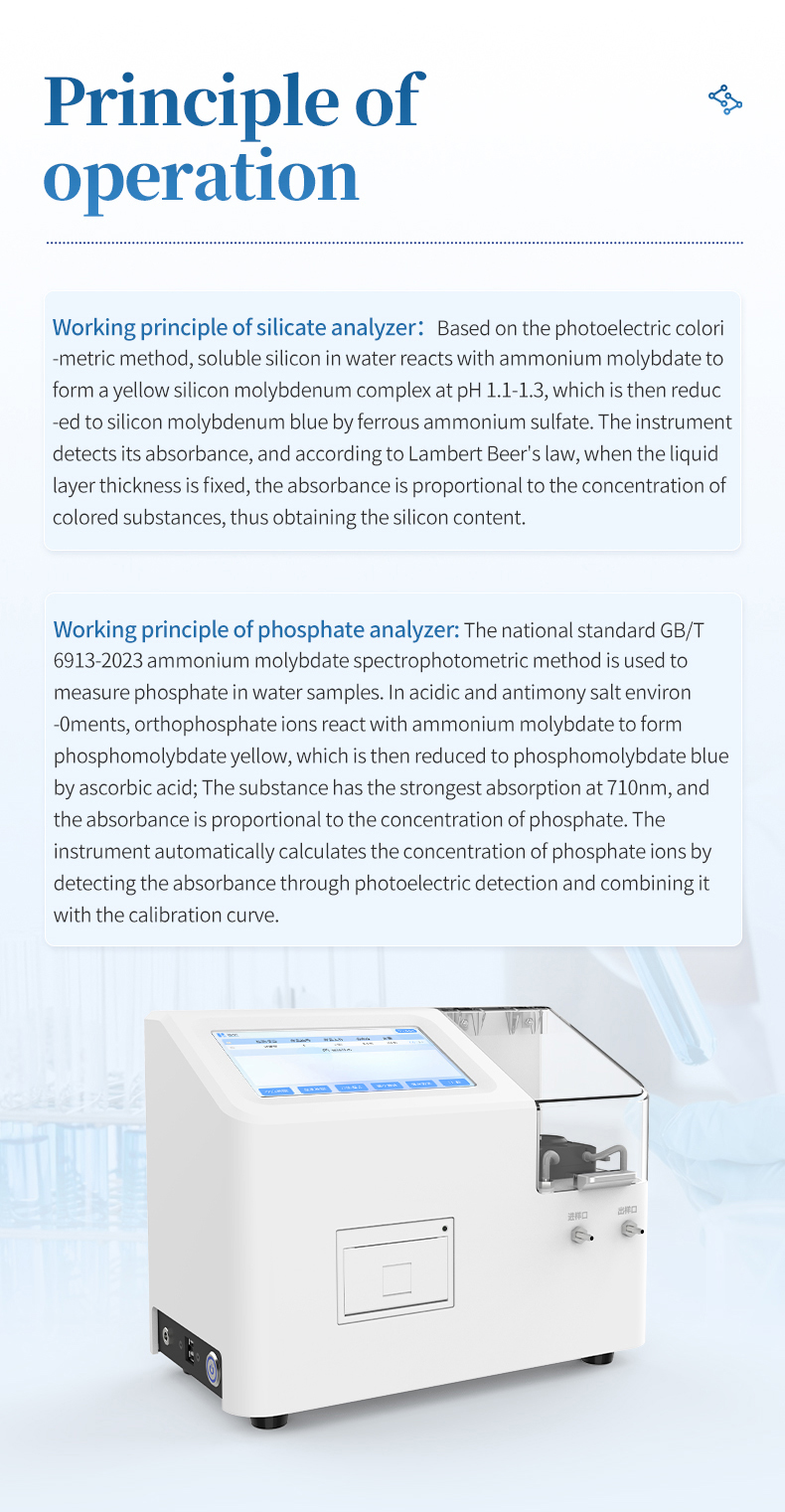

Photoelectric colorimetric principles for silicate and phosphate analysis

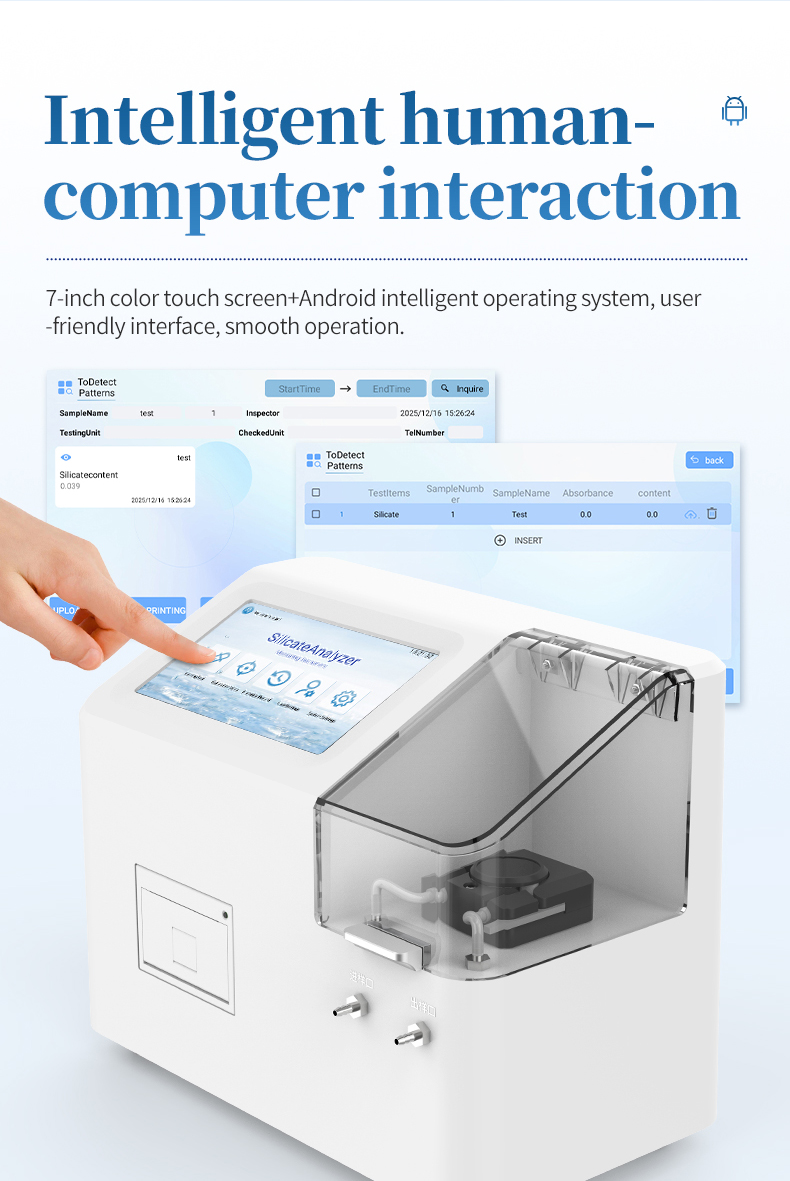

Analyzer seven-inch color touch screen and Android user interface

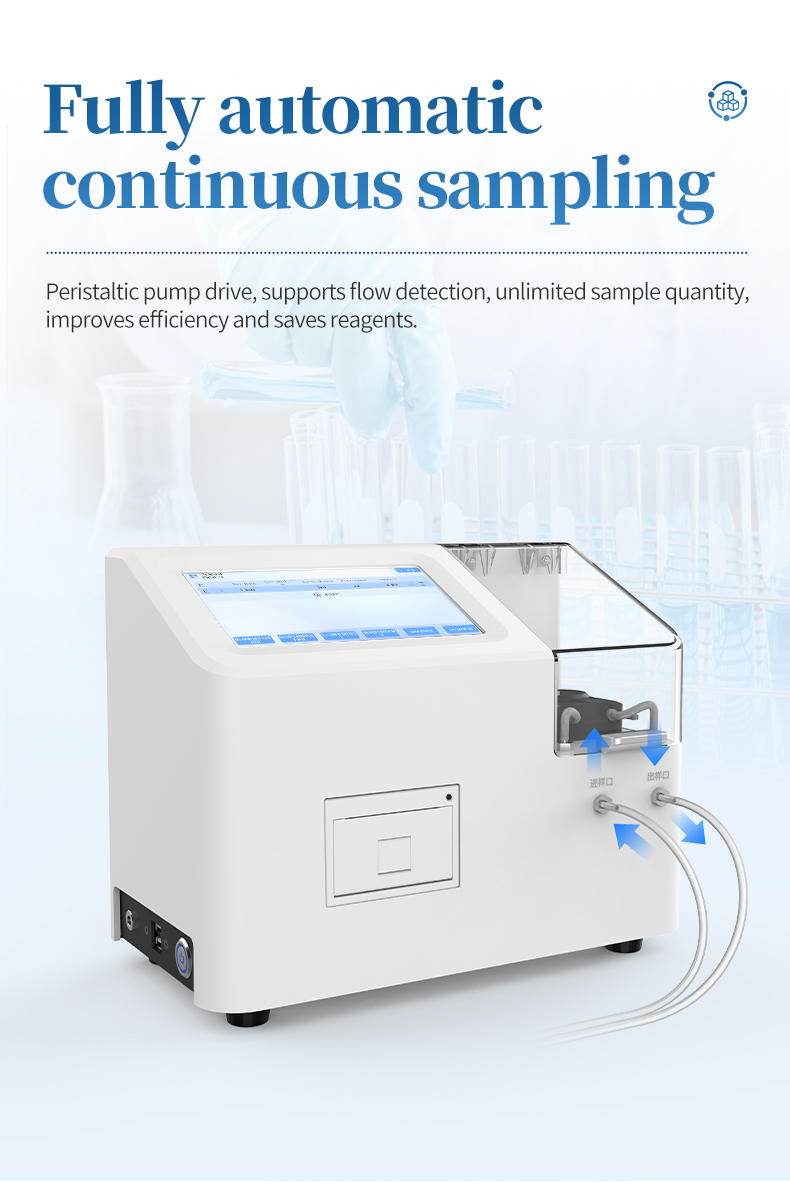

Analyzer peristaltic pump for automatic continuous flow sampling

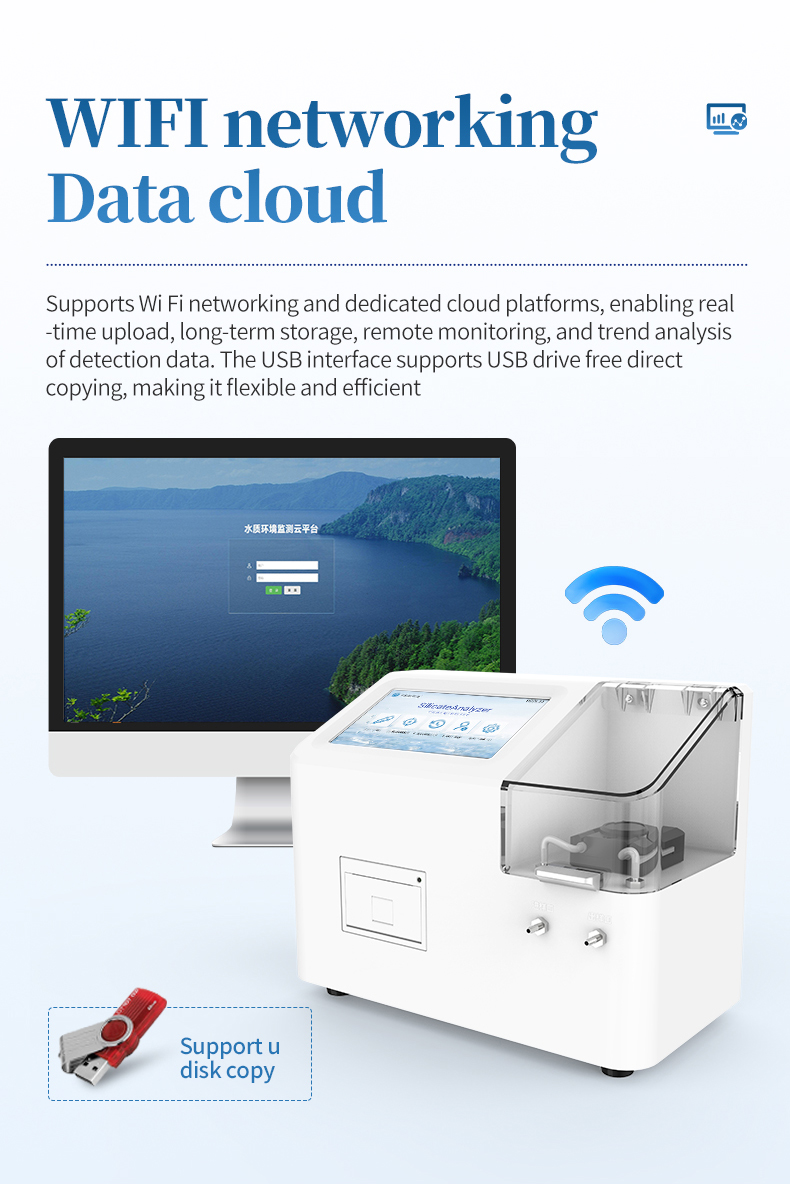

Analyzer Wi-Fi networking, cloud data and USB export functions

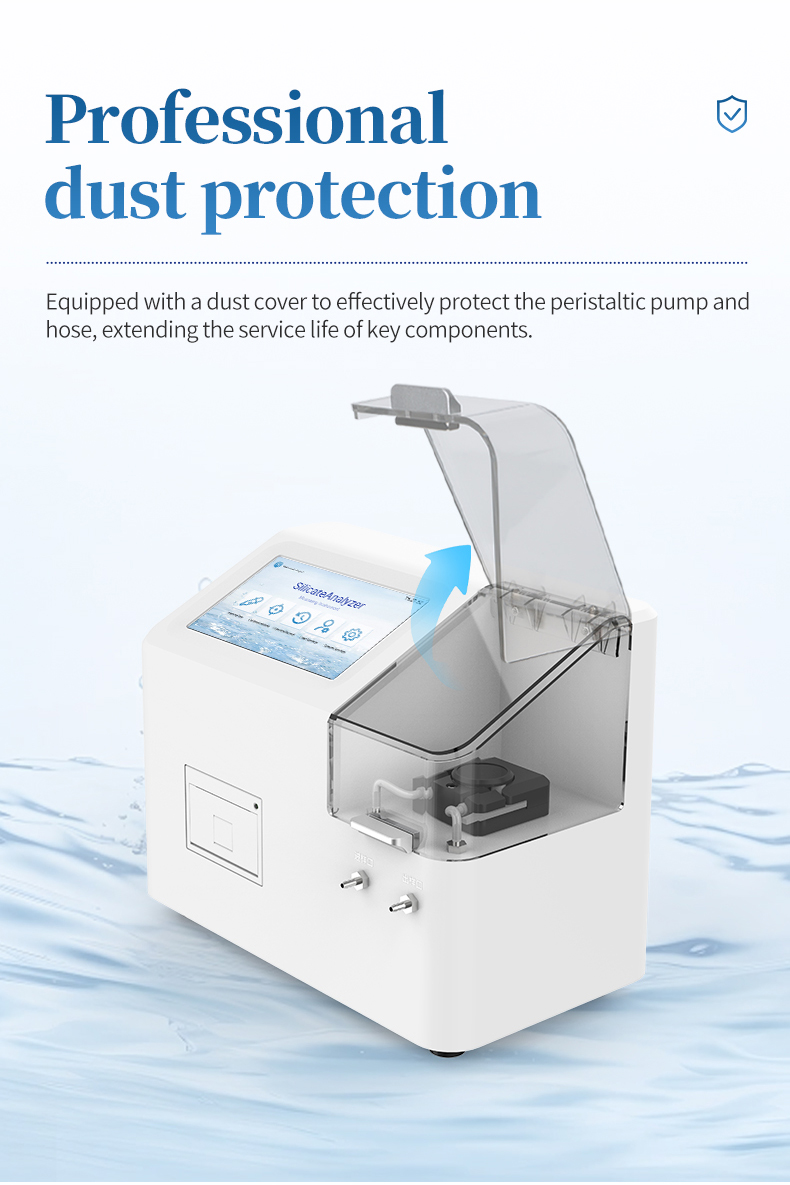

Analyzer protective cover over the peristaltic pump and tubing

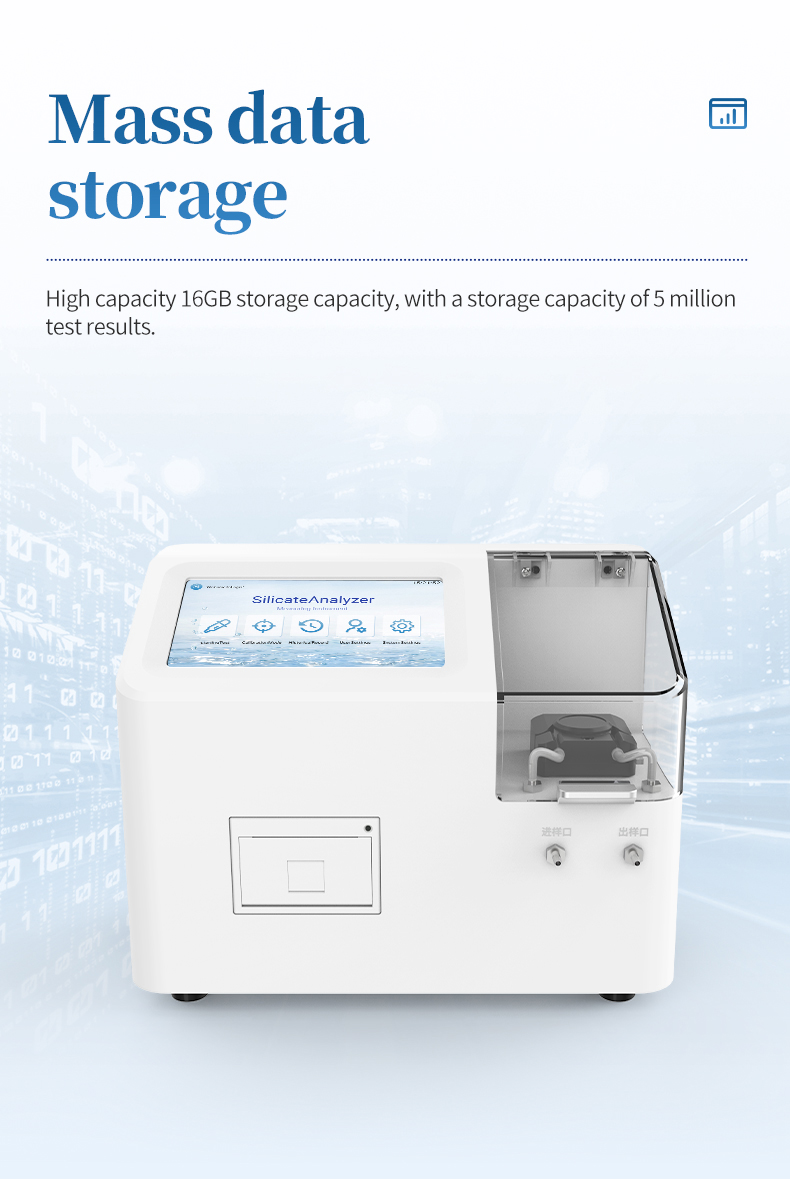

Analyzer data storage capacity and front-view instrument design

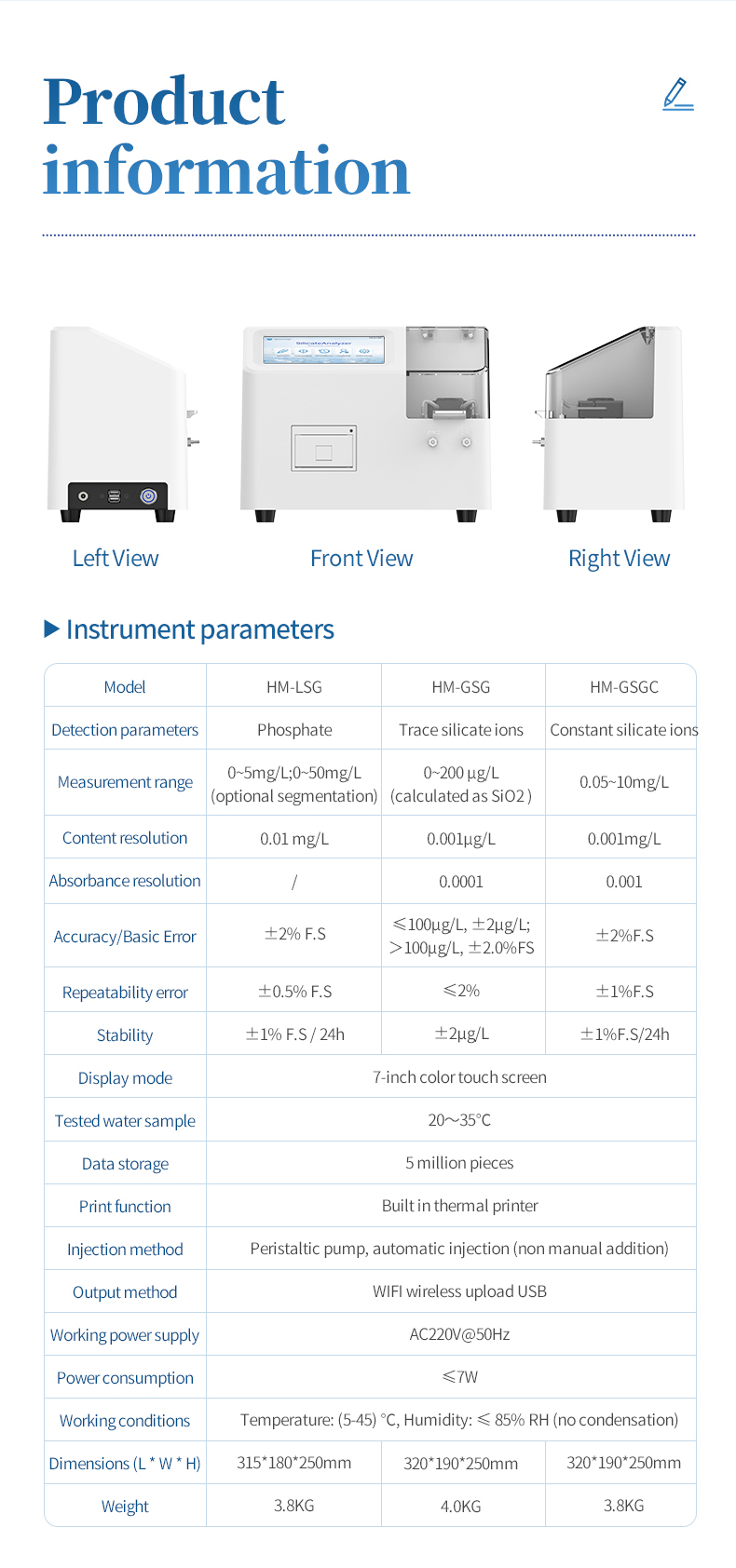

Analyzer front, left and right views with instrument parameter table

Product Overview

HM-GSGC is intended for routine soluble silicate measurement in water-quality workflows. It uses automatic peristaltic-pump injection and photoelectric colorimetric detection. The documented sample types are desalinated water, steam condensate and boiler water, with applications described for power plants and related chemical and fertilizer, metallurgy, environmental protection, pharmaceutical, chemical fiber and semiconductor operations.

Measurement Principle

At pH 1.1–1.3, soluble silicon reacts with ammonium molybdate to form a yellow silicon-molybdenum complex, which is reduced to silicon-molybdenum blue by ferrous ammonium sulfate. The analyzer measures absorbance to determine silicon content. The design references GB/T 12149-2017 for silicon determination in industrial circulating cooling water and boiler water.

Application Considerations

  • The 0.05–10 mg/L range is intended for the documented constant-level silicate measurement task.

  • The specified water sample temperature is 20–35°C; confirm sample preparation and matrix suitability for the intended procedure.

  • Automatic flow injection supports continuous multi-sample testing without manual sample addition.

Technical Specifications

ParameterSpecification
Measurement range0.05–10 mg/L
Content / absorbance resolution0.001 mg/L / 0.001
Basic / repeatability error±2% F.S. / ±1% F.S.
Stability±1% F.S. / 24 h
Display7-inch color touch screen
InjectionPeristaltic pump, automatic injection
Storage / printing5 million results; built-in thermal printer
OutputWi-Fi wireless upload and USB
Power / consumptionAC 220 V @ 50 Hz; ≤7 W
Working conditions5–45°C; ≤85% RH, no condensation
Dimensions / weight320 × 190 × 250 mm; 3.8 kg

Configuration / Accessories

  • SKU description: automatic injection and 7-inch touch screen.

  • An optional built-in lithium battery is stated in the product source. Constant silicate reagent kits are separate SKU entries; confirm the required kit and final configuration with sales.
