Quantitative Sealing Machine

Quantitative Sealing Machine HM-FKJ

【Introduction】Heat-seals 51-well and 97-well quantitative trays in up to 12 seconds per tray, with a 5-inch display and preheating time of up to 3 minutes.
Phone Icon+86 17853698681

Product details

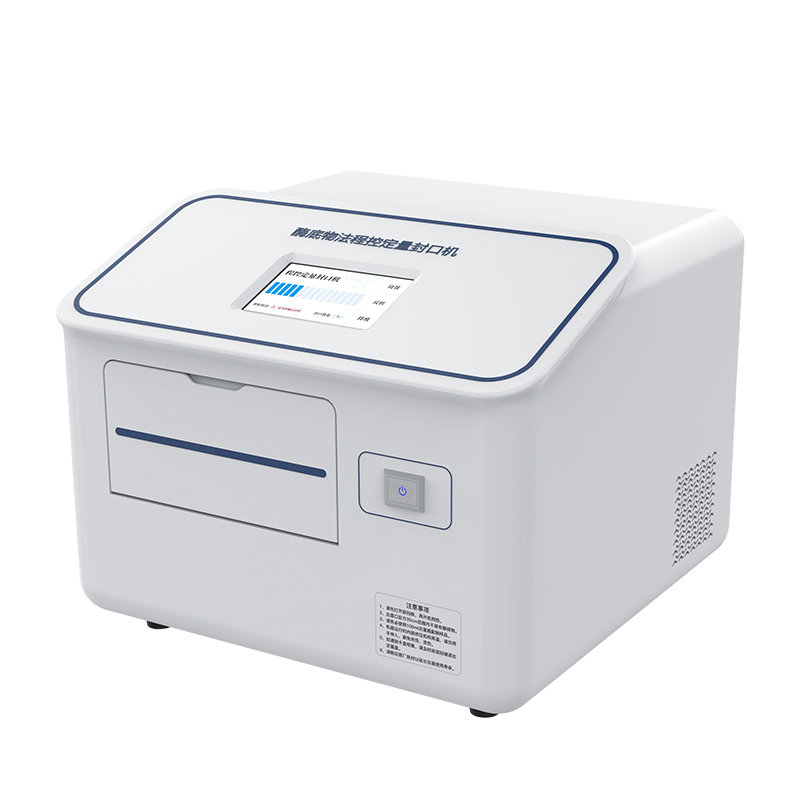

Quantitative tray sealing machine with display and front-loading slot

Product Overview

The HM-FKJ from HM Instruments seals 51-well and 97-well quantitative trays using electrically driven heated rollers. Used with the corresponding trays, sample bottles and enzyme-substrate reagents, it prepares partitioned water samples for incubation and most-probable-number interpretation.

Key Features

  • Compatible with both 51-well and 97-well quantitative tray formats.
  • A 5-inch display supports operating information and fault prompts.
  • Tray counting, reverse operation and energy-saving functions support routine processing.
  • Overload and short-circuit protection are included in the electrical design.

Applications

Use in enzyme-substrate workflows for total coliforms, thermotolerant coliforms and Escherichia coli in suitable water samples. Applications include drinking water, source water, bottled water, reclaimed water, distribution-system water and appropriate wastewater samples. The sealer prepares the tray; reagents, incubation and result interpretation complete the microbiological test.

Technical Specifications

ParameterSpecification
Tray formats51 wells or 97 wells
Rated sealing time≤12 seconds per tray
Preheating time≤3 minutes
Display5-inch display
51-well test range0–200 MPN/100 mL, undiluted sample with matching test system
97-well test range0–2419 MPN/100 mL, undiluted sample with matching test system
SupplyAC 220 V ±10%, 50 Hz
Operating environment−10 to 50 °C
Noise<48 dBA
Dimensions420 × 410 × 330 mm
Weight14.2 kg

Operation and Support

Prepare the water sample with the selected enzyme-substrate reagent, fill the compatible quantitative tray and seal it using the programmed procedure. Incubate and interpret positive wells using the procedure for the target organism and selected tray. Select any required dilution before filling the tray.

Product Enquiries

Tell our sales representative your sample type, measurement task and configuration needs for product enquiries and coordination of service requests.

Sales Contact: Arthur
Email: Arthur@hmdzkj.cn
Tel / WhatsApp / WeChat: +86 18353666151
