COD Digester

COD Digester HM-X06

【Introduction】Dissolve quantity: 6 pieces; Heating speed: rise to 165 ℃ within 10 minutes; Dissolving capacity: 0-10ml;
Phone Icon+86 17853698681

Product details

Product overview

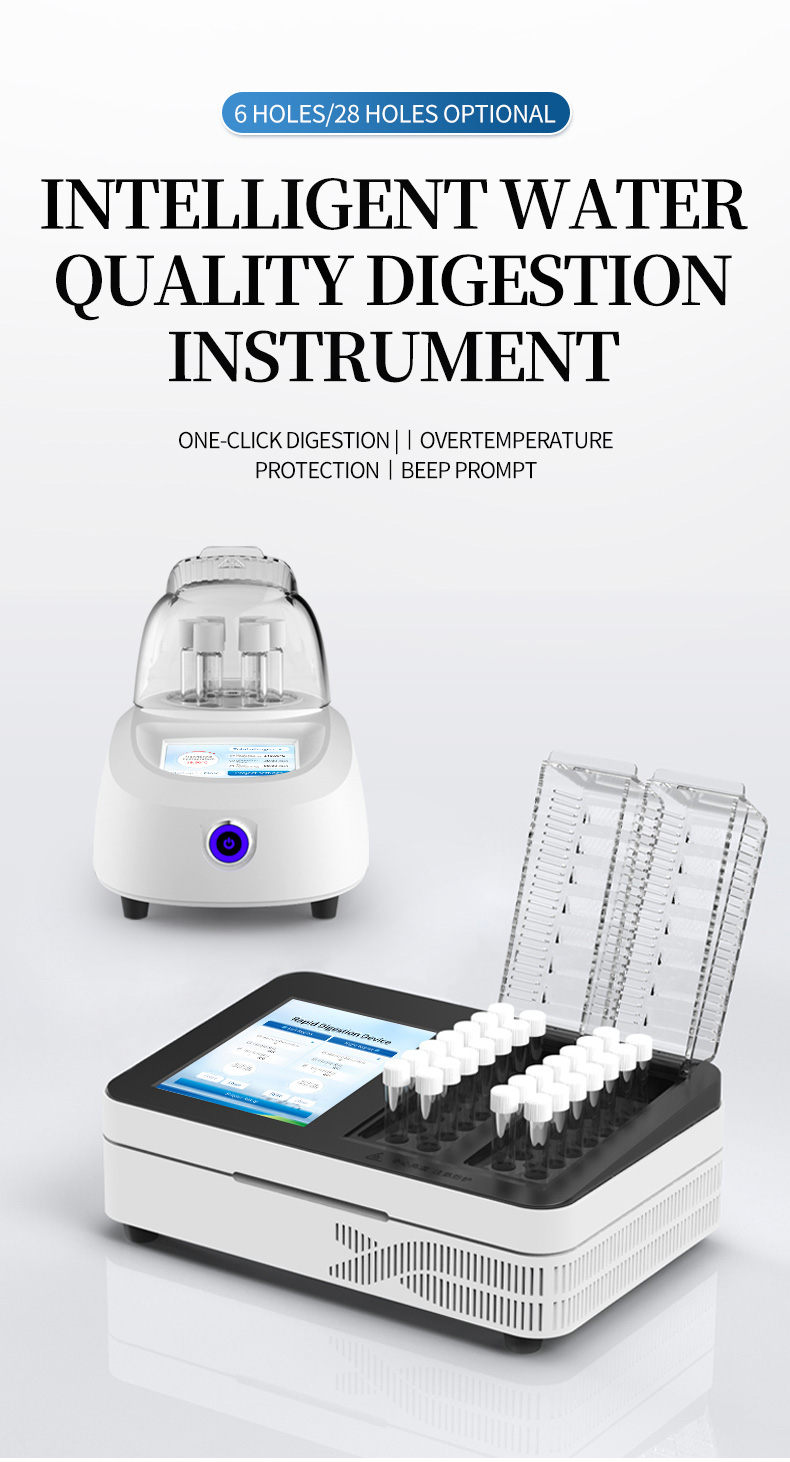

The COD digestion instrument is a new multi-functional rapid digestion instrument developed based on the environmental protection industry standard HJ/T399-2007. It is equipped with a 3.5-inch capacitive touch screen operation, intelligent and safe, with fast heating speed and uniform and stable temperature. It can perform one click digestion on various detection parameters such as COD, total phosphorus, total nitrogen, etc.

Application area

COD digestion analyzer can be widely used for water quality testing in research institutes, sewage engineering, water environment detection, petrochemicals, metallurgy and steel, biomedicine, food and dairy industry, wool textile printing and dyeing, electronic machinery, aquaculture, photovoltaics, leather, papermaking and other fields.

Functional features

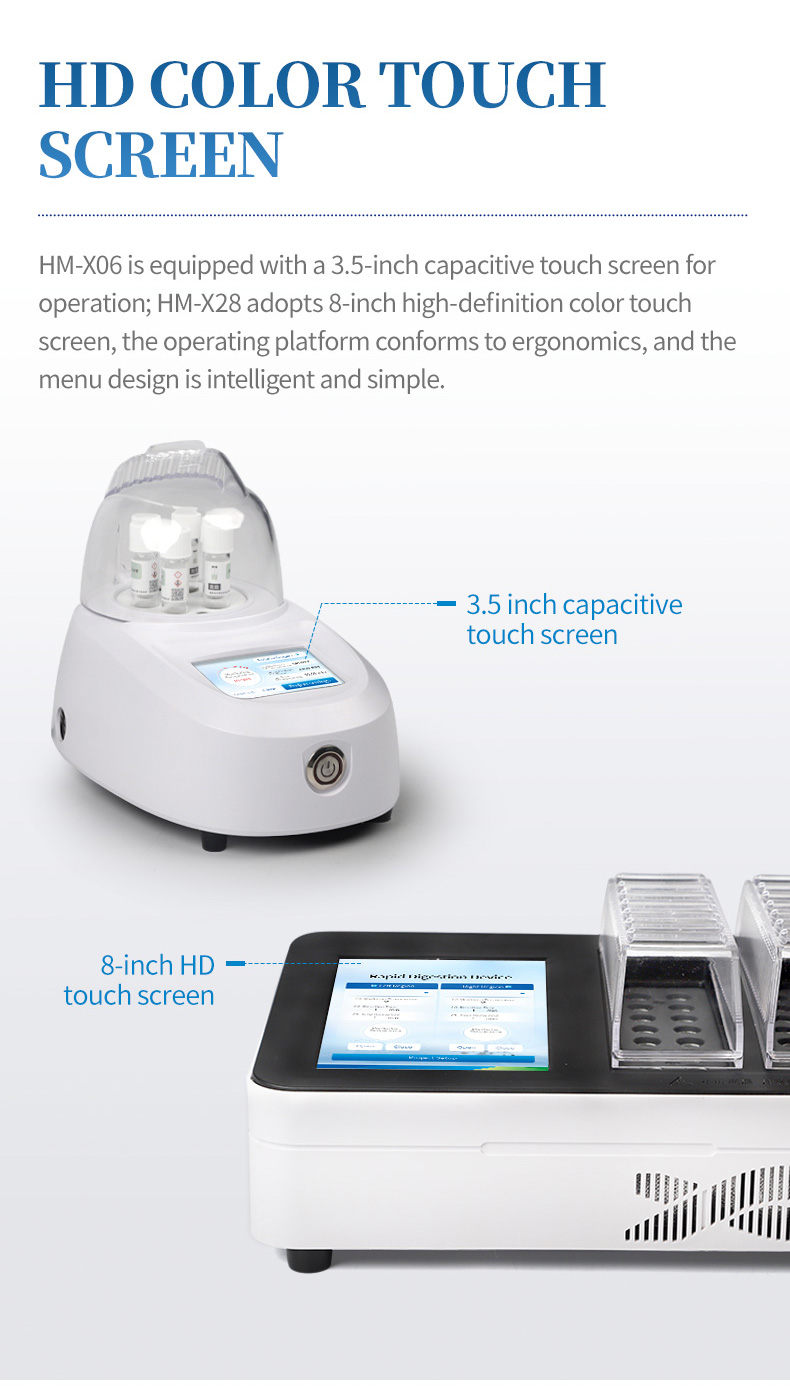

1. 3.5-inch color LCD touch screen, displaying clear and intuitive content;

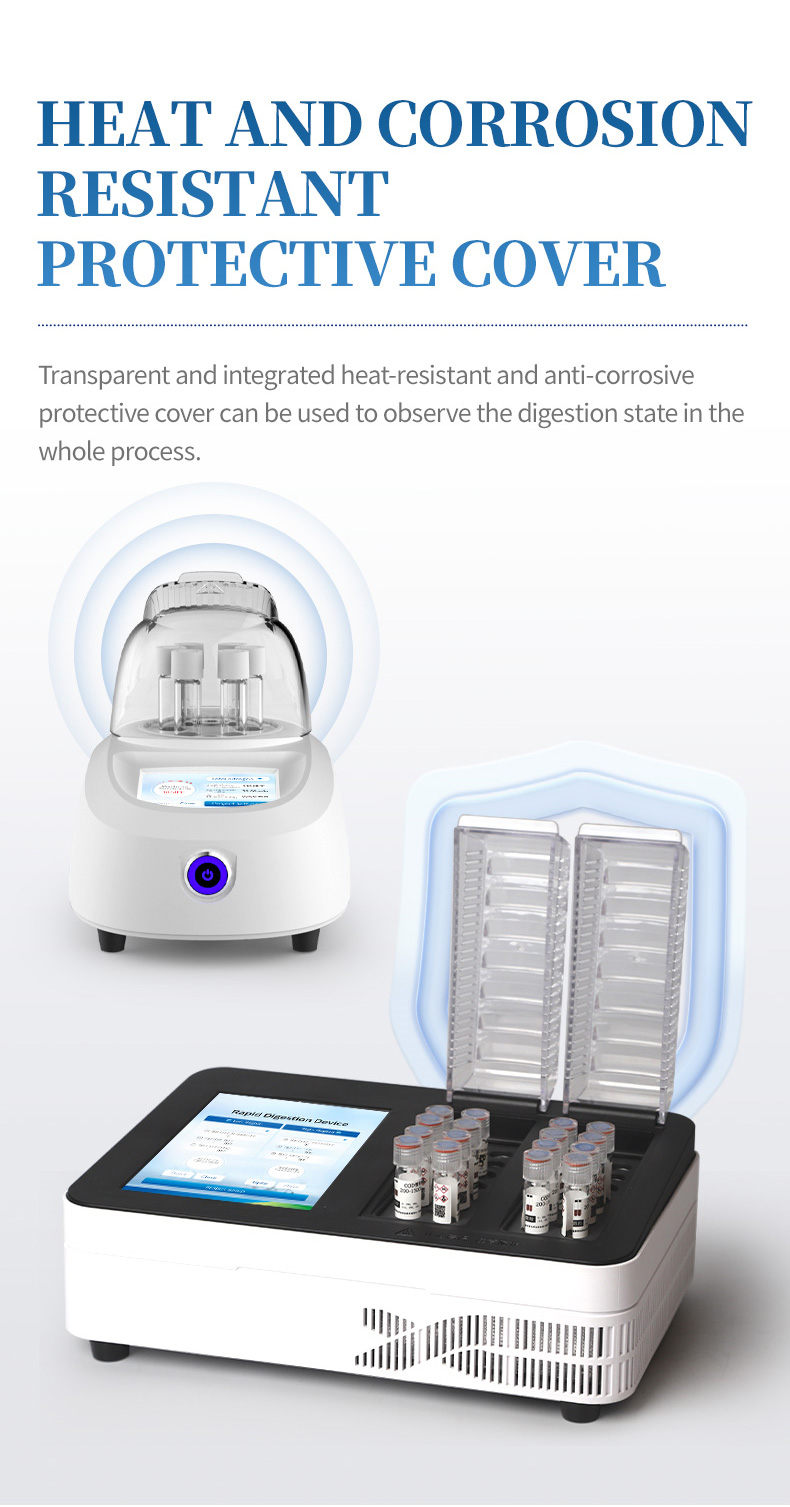

2. A transparent and ventilated protective cover that prevents the splashing of digestion solution, providing a clear understanding of the digestion state and ensuring safety and reliability;

3. It has functions such as constant temperature heating, over temperature protection, automatic timing, and buzzer notification;

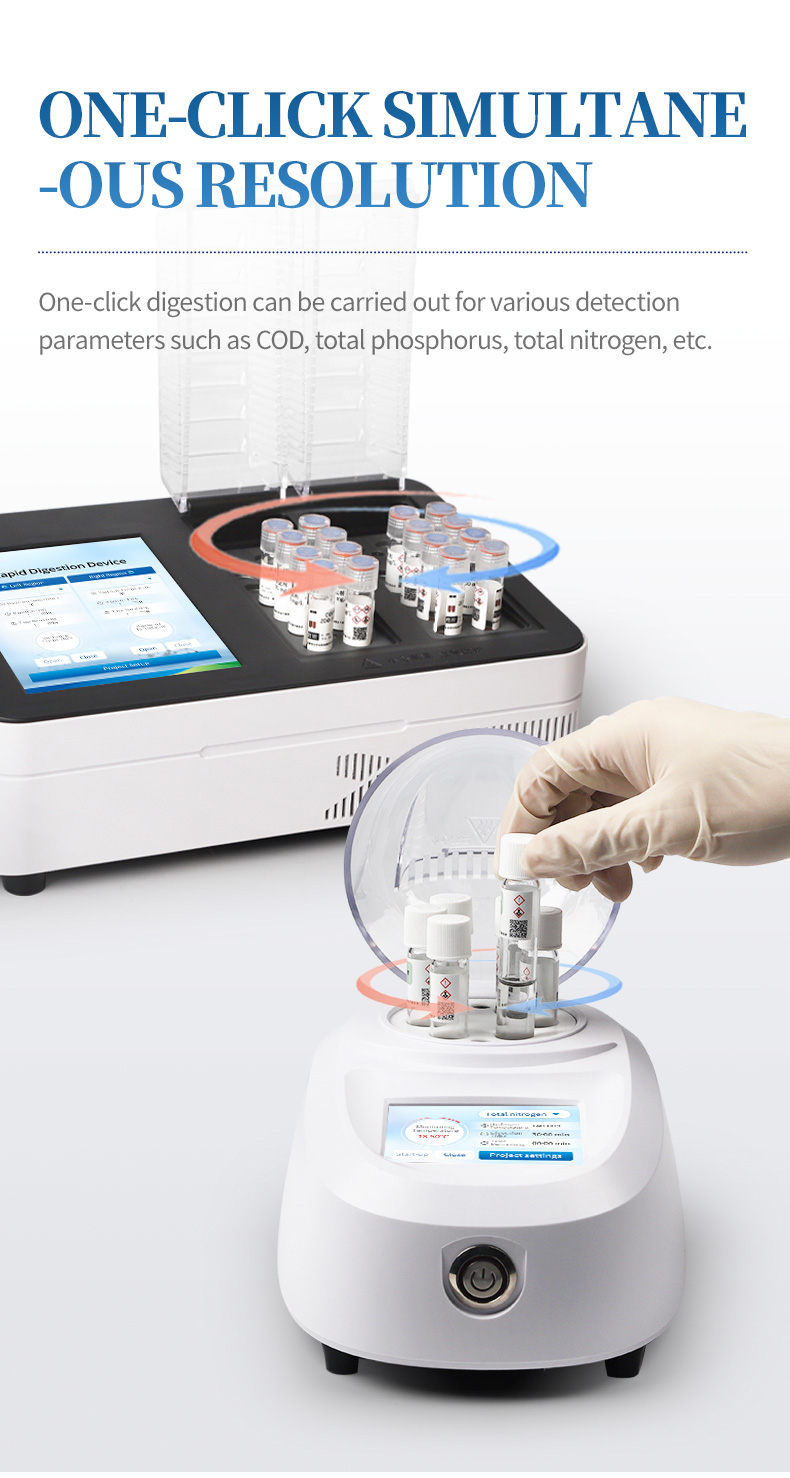

4. Pre stored 4 types of digestion programs, one click digestion, no need for modification, can be used directly;

5. Automatically start timing when the temperature rises to the set digestion temperature;

6. Customizable digestion time and temperature;

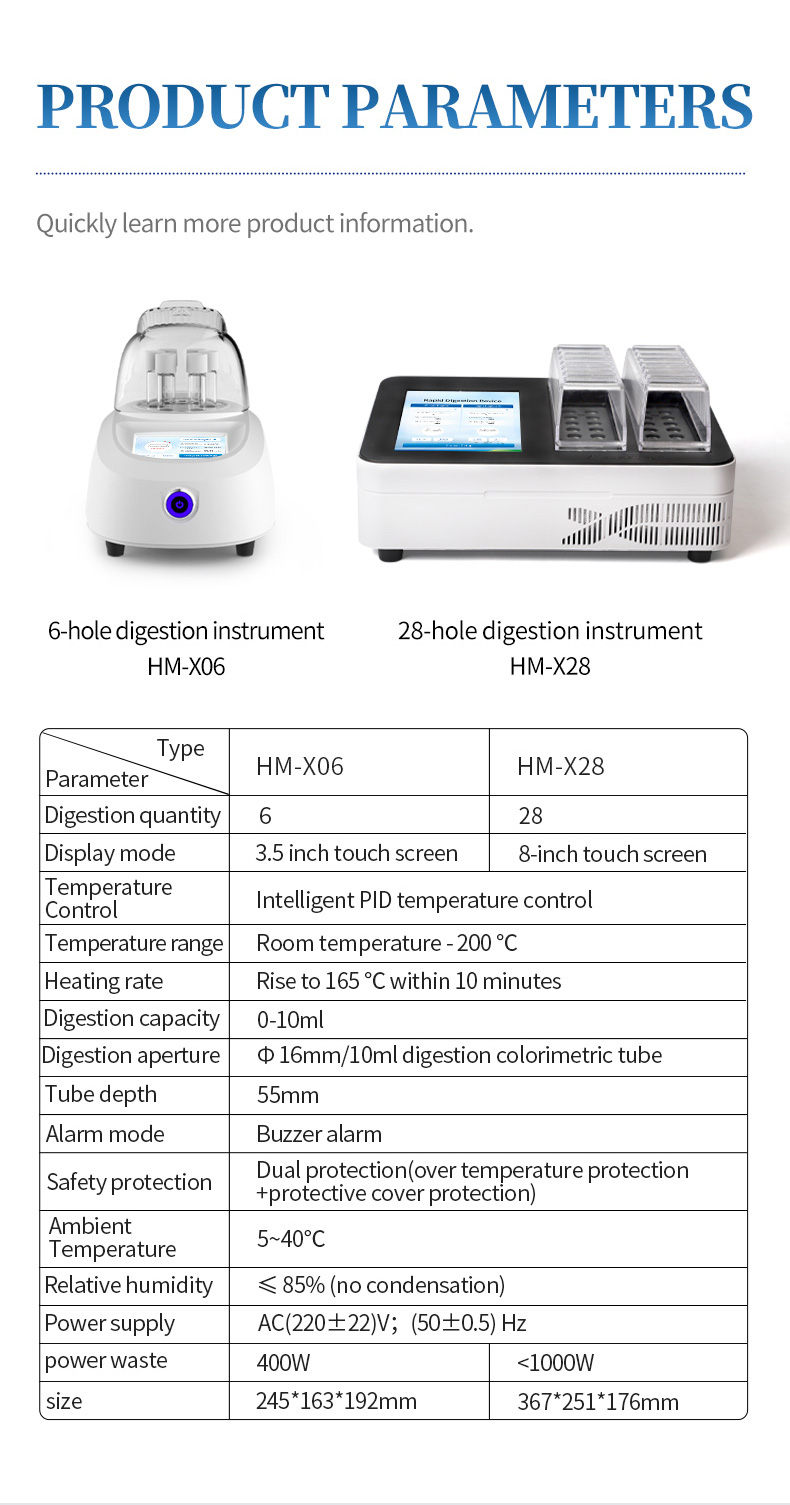

Technical index

Dissolve quantity: 6 pieces;

Heating speed: rise to 165 ℃ within 10 minutes;

Dissolving capacity: 0-10ml;

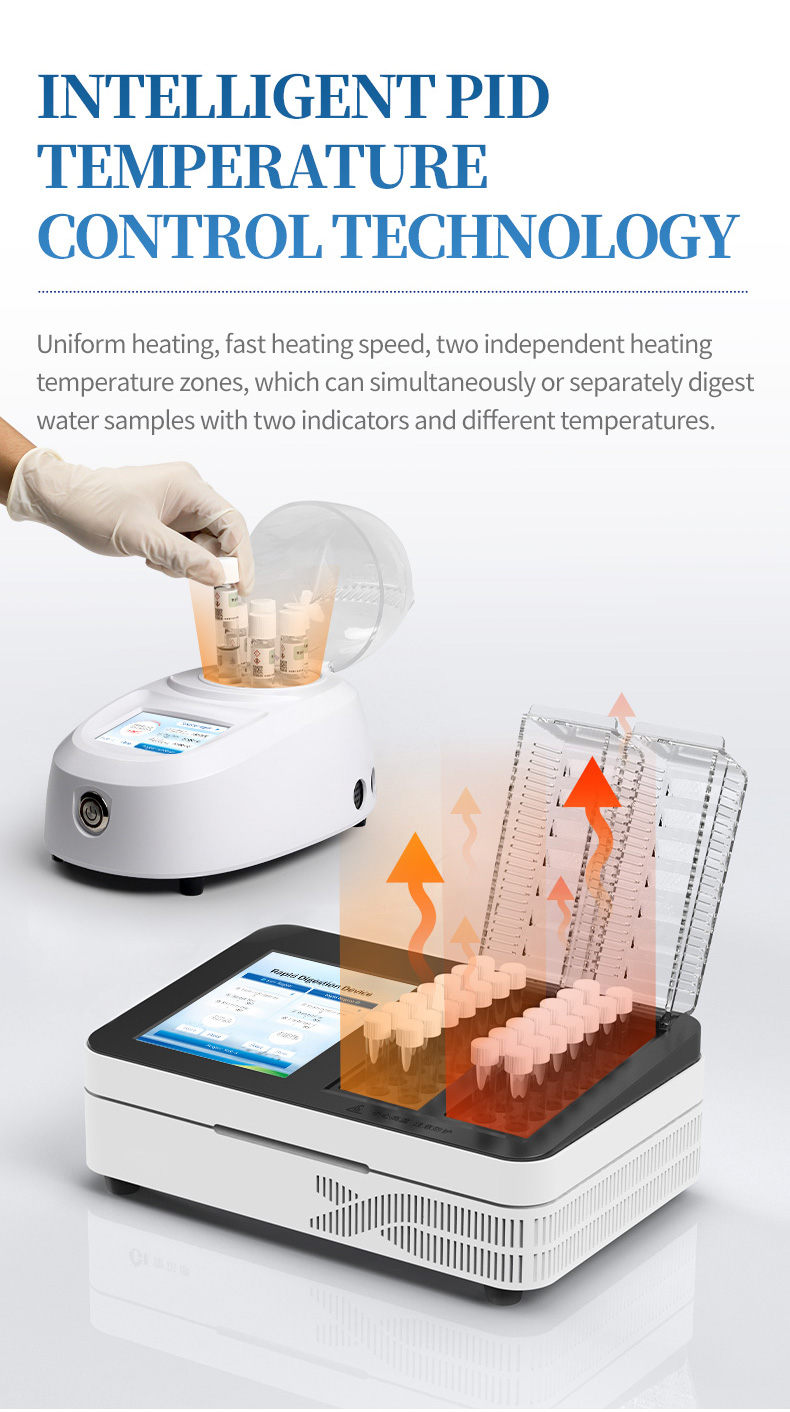

Temperature control mode: intelligent PID temperature control;

Temperature control accuracy: ± 1 ℃;

Dissolving temperature: room temperature -200 ℃;

Time setting: 0-200 minutes;

Dissolution aperture: Φ 16mm/10ml dissolution colorimetric tube;

Test tube depth: 55mm;

Screen display: 3.5-inch color capacitive touch screen;

Instrument power consumption: 400W;

Pre set digestion mode: COD, total phosphorus, total nitrogen, other;

Featured features: One click resolution, over temperature protection, buzzer prompt, custom settings, countdown function;

Dimensions: 245X163X192mm (length x width x height);

Instrument weight:<2.5kg;

Device language: Chinese/English;

Environmental temperature: 5-40 ℃;

Relative humidity: ≤ 85% (no condensation);

Power supply: AC (220 ± 22) V; (50 ± 0.5) Hz;
