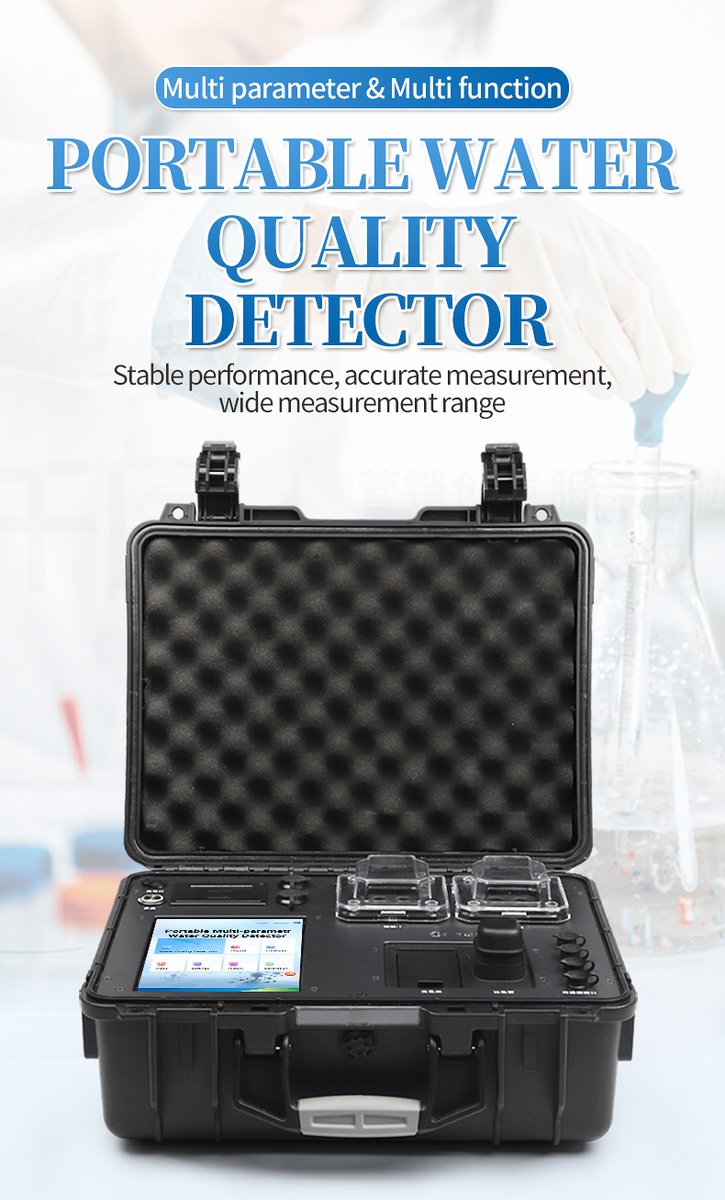

HM-B100M Portable Water Quality Analyzer for Environmental and Industrial Field Testing HM-B100M

Product Introduction

Environmental monitoring agencies and industrial water treatment facilities face a persistent challenge: obtaining laboratory-grade analytical results in field conditions. Traditional workflows require collecting samples, transporting them to centralized labs, and waiting days for results — a process that delays critical decisions about water safety, discharge compliance, and treatment adjustments.

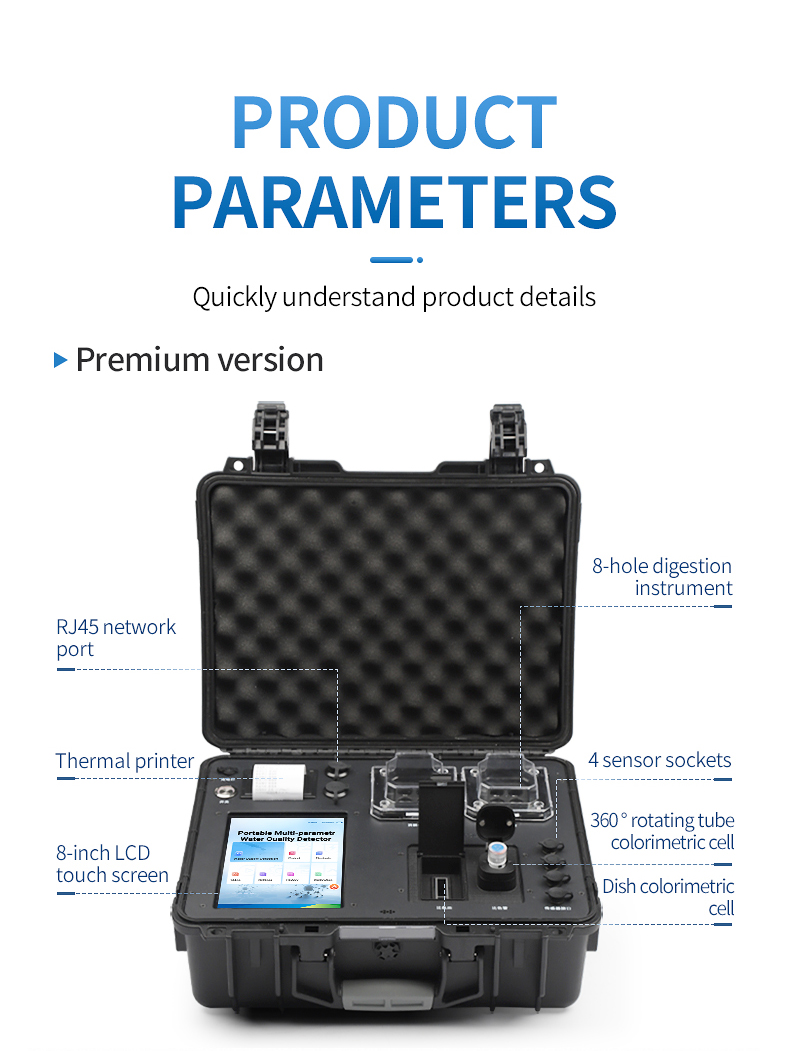

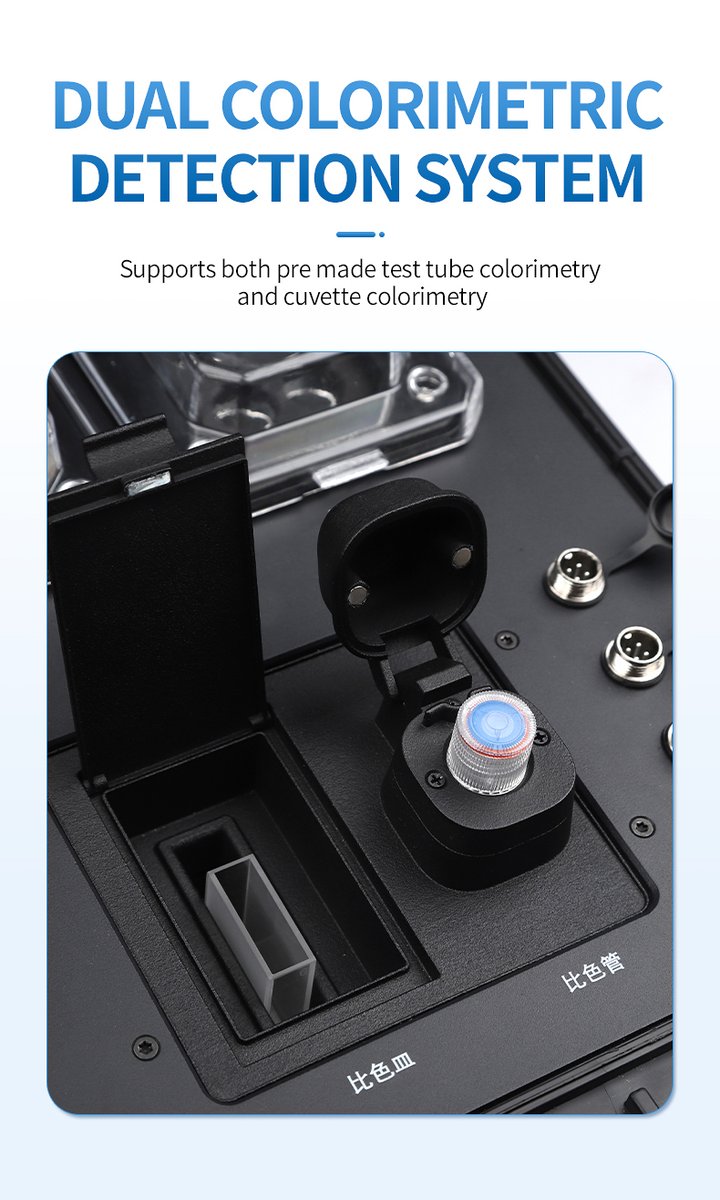

The HM-B100M addresses this gap by integrating three essential laboratory functions into a single rugged portable system. Its built-in dual-temperature-zone 8-hole digester eliminates the need for a separate digestion apparatus, enabling COD, total phosphorus, and total nitrogen sample preparation directly at the sampling site. The 360° precision rotating colorimetric detection system delivers laboratory-equivalent accuracy for 49 spectrophotometric parameters, while the dual-mode design accepts both pre-made test tubes and standard cuvettes for maximum flexibility.

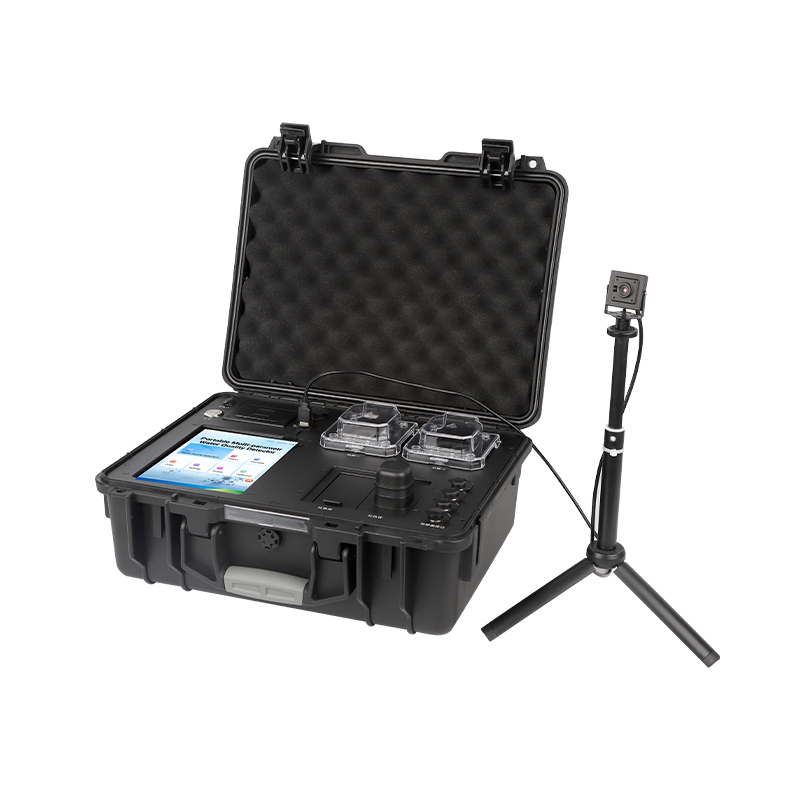

For regulatory compliance scenarios, the integrated 720P camera module generates timestamped photographic evidence linked to each test record — a critical capability for environmental enforcement agencies and third-party testing organizations. Combined with GPS geo-tagging, 10 million record storage, and cloud data upload via WiFi or 4G, the HM-B100M transforms field water quality data into auditable, traceable documentation.

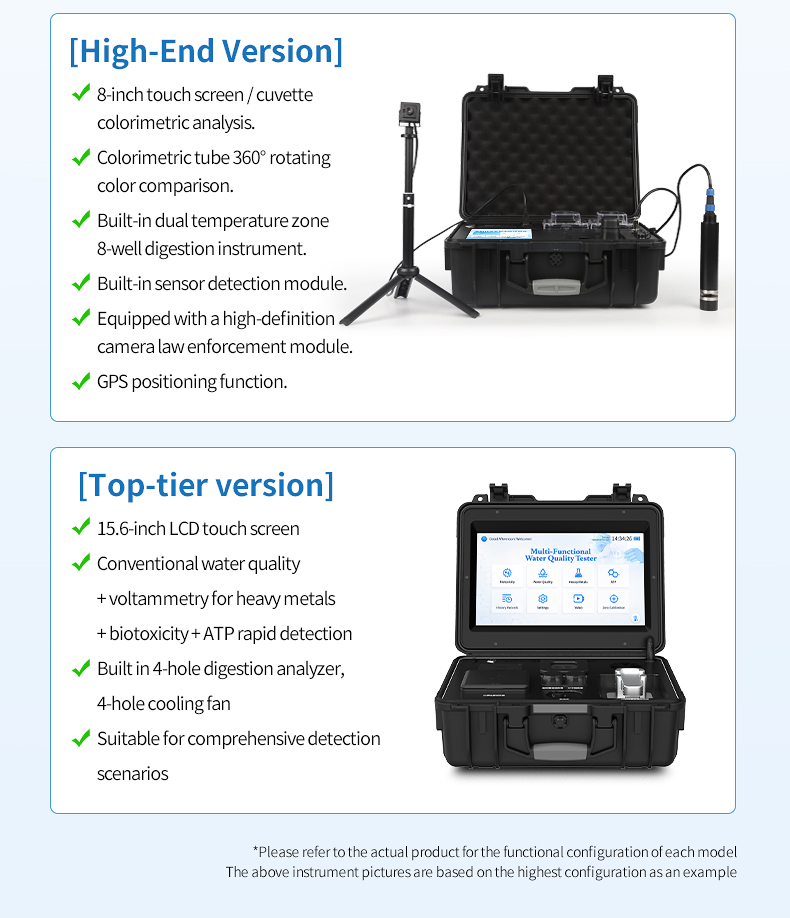

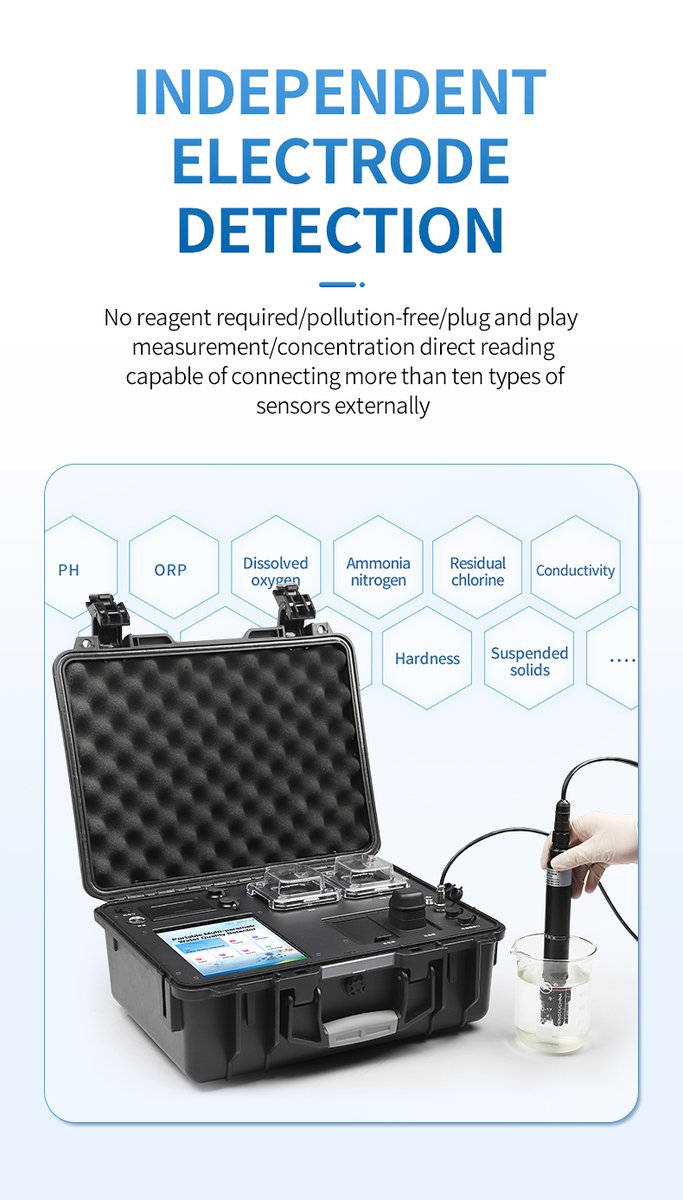

For organizations requiring electrode-based measurements alongside spectrophotometry, the HM-B200M adds a dedicated 4-port sensor module to the shared platform.

Applications

• Municipal Wastewater Treatment: Daily monitoring of COD, ammonia nitrogen, total nitrogen, and total phosphorus in influent, effluent, and process streams to ensure discharge permit compliance

• Environmental Monitoring Stations: Field surveys of surface water, groundwater, and industrial discharge points with geo-tagged data collection and evidence documentation

• Industrial Wastewater Management: On-site testing at manufacturing facilities in petrochemical, electroplating, pharmaceutical, and food processing industries before discharge or treatment adjustment

• Drinking Water Safety: Residual chlorine, turbidity, and disinfectant byproduct monitoring at treatment plants and distribution system endpoints

• Emergency Response: Rapid water quality assessment during pollution incidents, chemical spills, or natural disasters when laboratory access is unavailable

• Third-Party Testing Agencies: Portable analytical capability for contracted environmental audits, compliance inspections, and certification sampling

• Aquaculture Operations: Regular monitoring of ammonia nitrogen, dissolved oxygen, pH, and other parameters critical to aquatic organism health

• Educational and Research Institutions: Teaching laboratory and field research applications in environmental science, hydrology, and water treatment engineering programs

Key Features & Advantages

1. Single-instrument solution replaces separate digester, spectrophotometer, and camera — reducing field equipment from three devices to one 11kg portable case

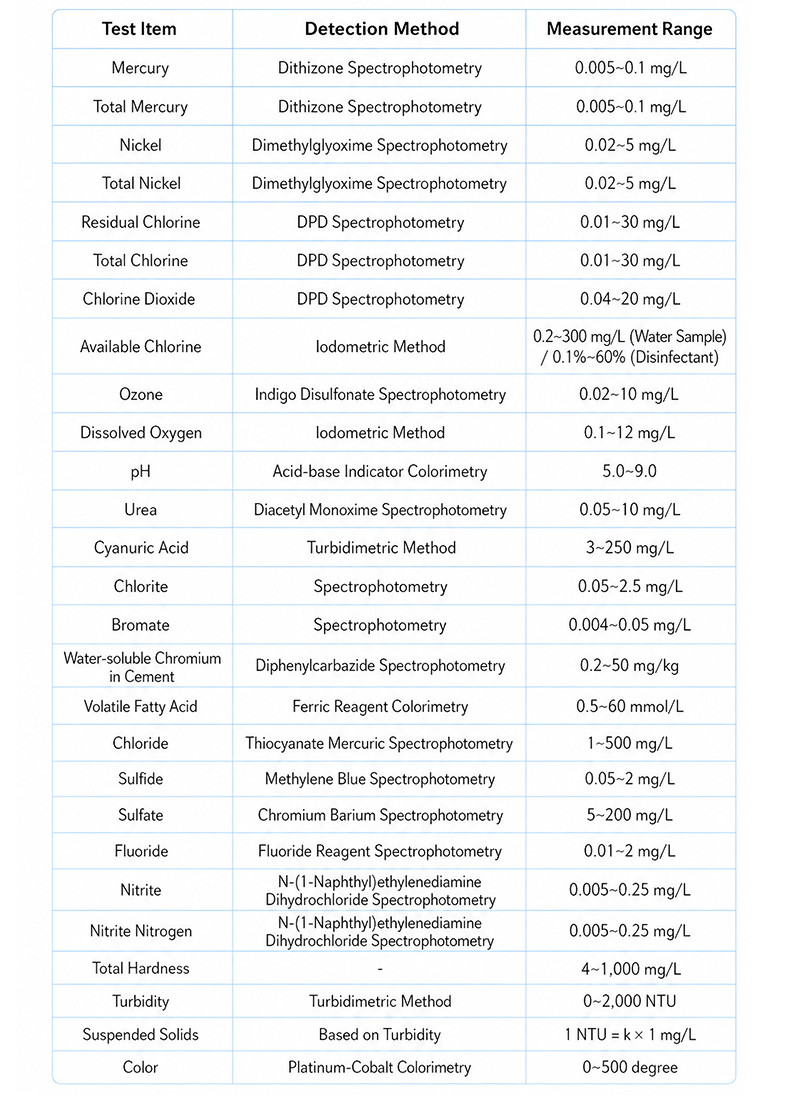

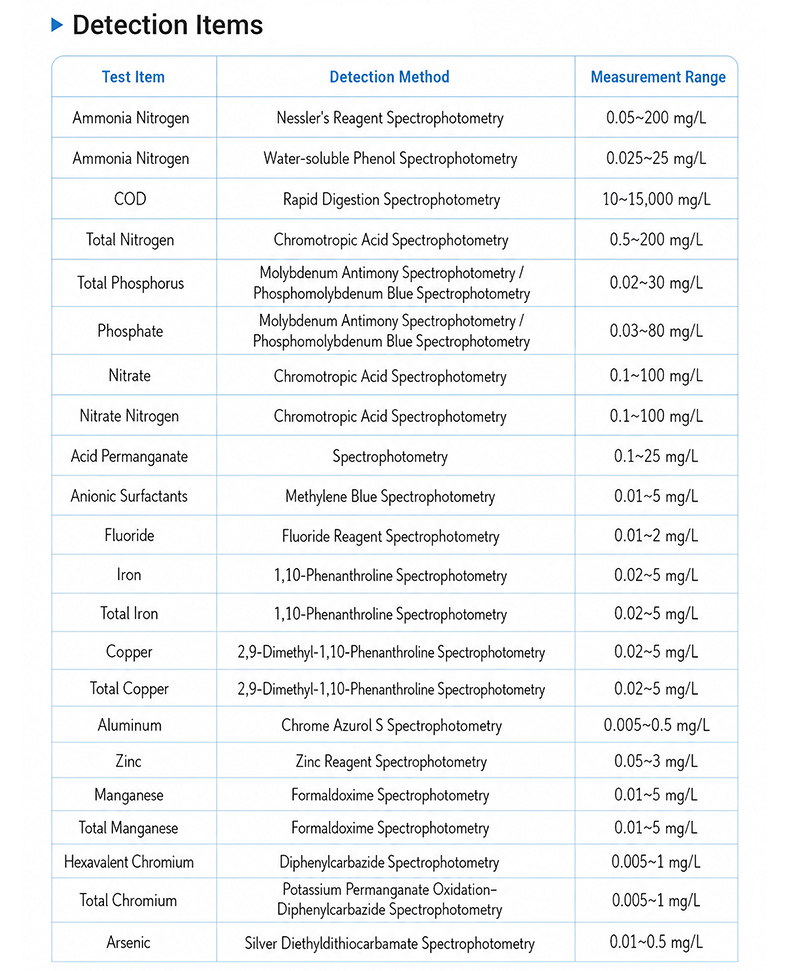

2. 49 spectrophotometric parameters cover the full range of regulatory water quality testing requirements without reagent swapping or instrument changes

3. Simultaneous digestion and detection workflow cuts total analysis time by up to 50% compared to sequential laboratory procedures

4. 360° rotating colorimetric mechanism achieves 10× stability improvement over fixed-position designs, delivering repeatable results in uneven field conditions

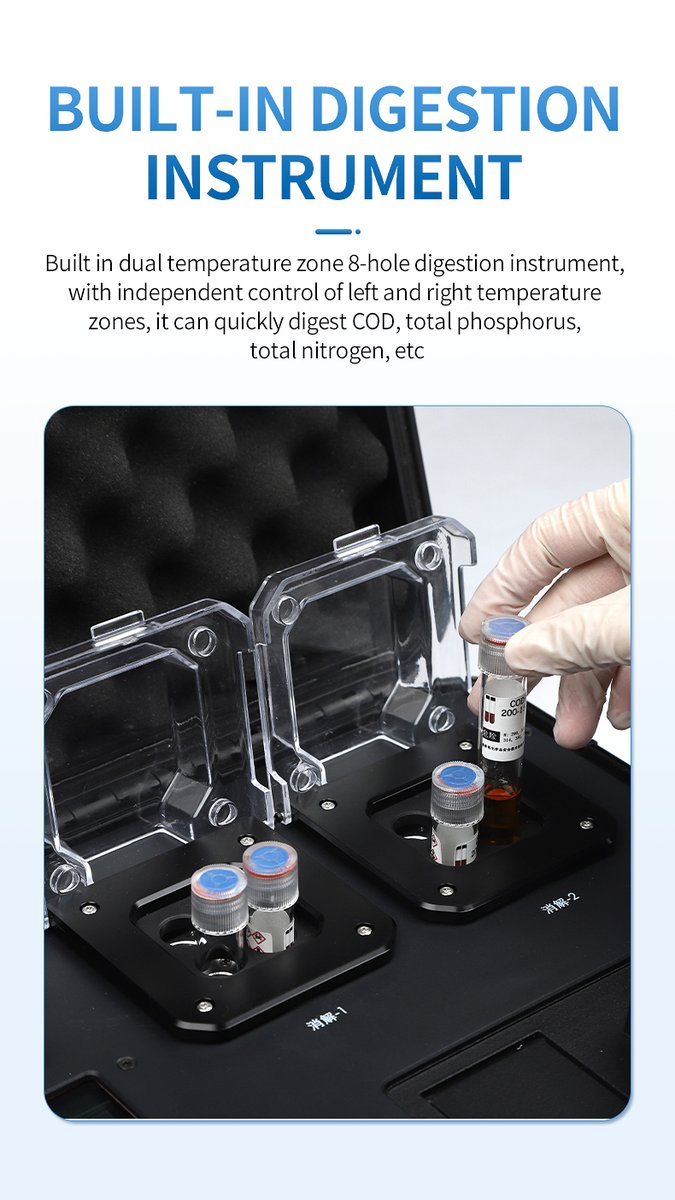

5. Dual-temperature-zone PID-controlled digester reaches 165°C within 10 minutes, enabling rapid COD digestion while independently controlling a second zone for total phosphorus or nitrogen

6. 720P evidence camera automatically embeds geo-tagged photos into test reports, creating tamper-resistant documentation for enforcement and compliance audits

7. GPS positioning records exact sampling coordinates alongside each measurement, building a spatially referenced water quality dataset for trend analysis

8. 10 million record capacity with WiFi, 4G, and RJ45 upload ensures no data loss during extended field campaigns spanning weeks or months

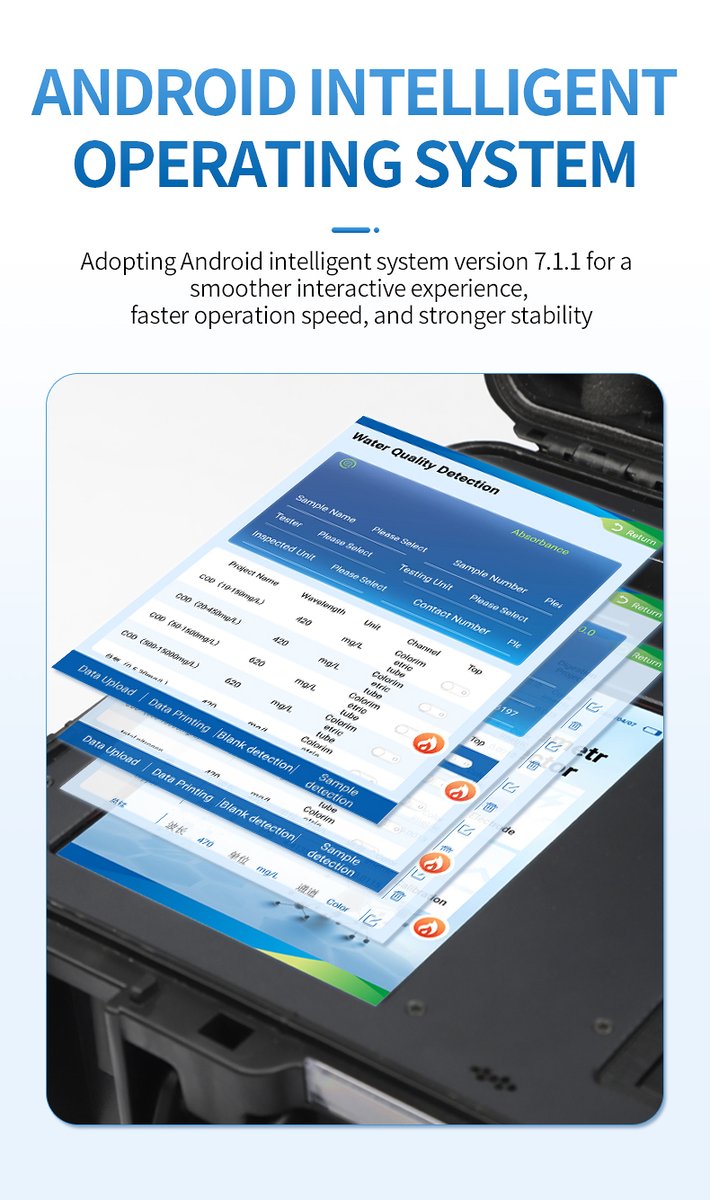

9. Android 7.1.1 platform with 8-inch touchscreen provides intuitive operation without laptop dependency — operators navigate menus as easily as using a tablet

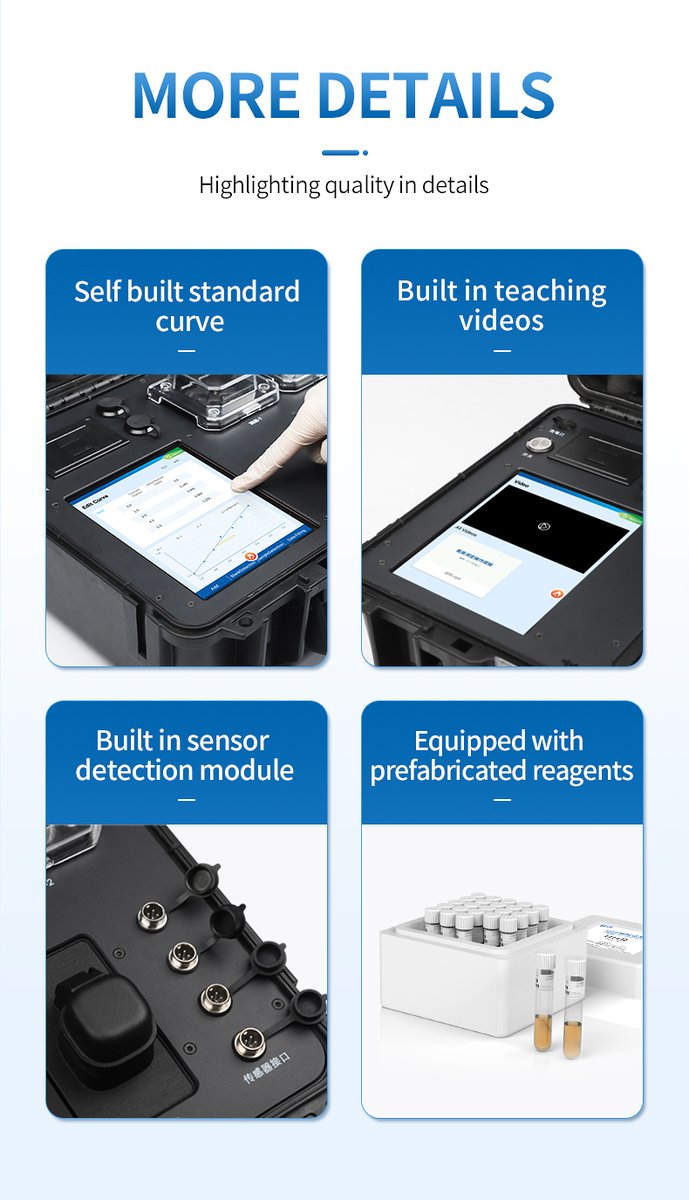

10. Built-in instructional videos for key test procedures reduce training time and operator error, particularly valuable for agencies with high staff turnover

11. Factory pre-made reagent kits eliminate manual reagent preparation and concentrated acid handling, improving field safety and result consistency

12. Customizable parameter top-listing places frequently tested indicators at the top of the menu, streamlining repetitive daily testing routines

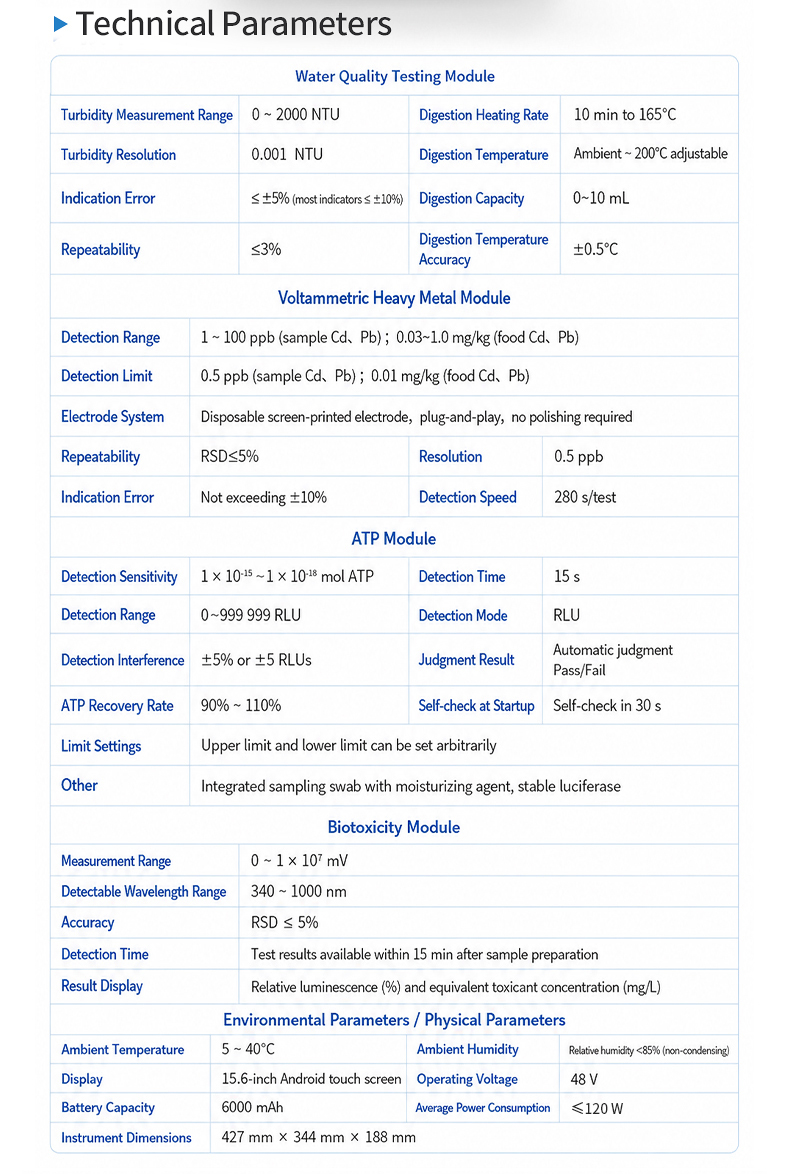

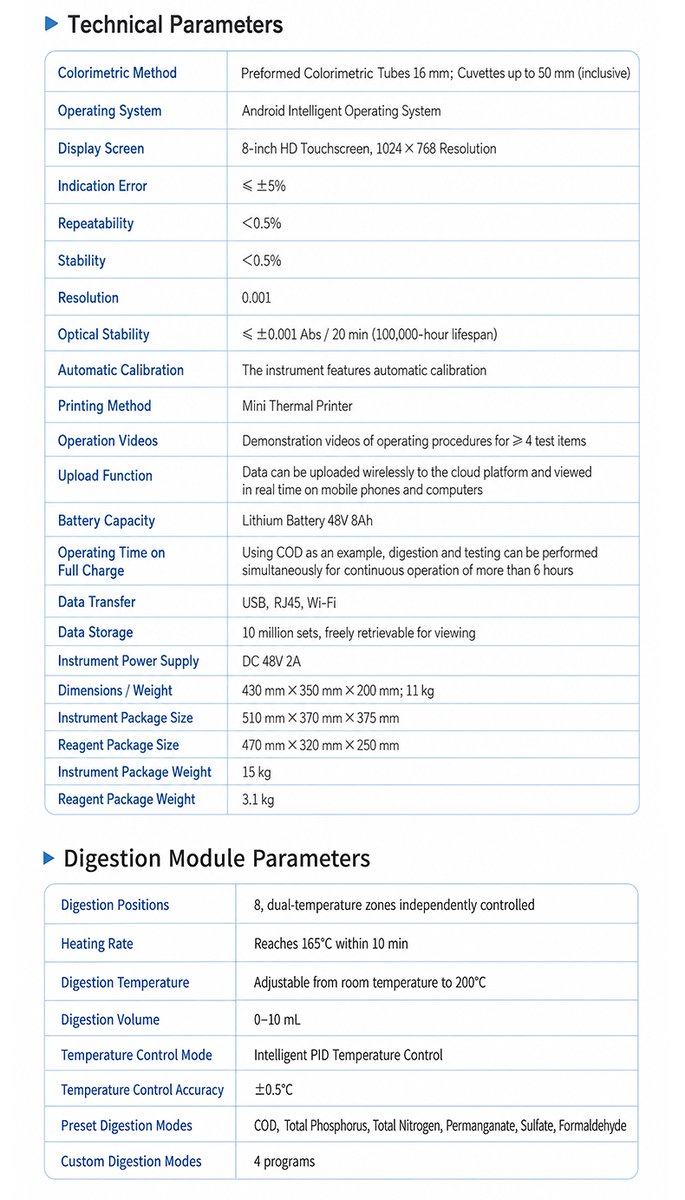

Technical Specifications

FAQ

Q: Can the HM-B100M replace laboratory analysis for regulatory compliance reporting?

The HM-B100M uses standardized spectrophotometric methods identical to those referenced in national water quality testing standards. Its 720P evidence camera, GPS geo-tagging, and 10 million record storage create auditable documentation. Many environmental monitoring agencies use this instrument for routine field screening, with laboratory confirmation reserved for disputed results or parameters near regulatory thresholds.

Q: How long can the instrument operate in the field without external power?

The 48V8AH lithium battery provides over 6 hours with digestion and detection running simultaneously. It also accepts DC 48V2A external power from a vehicle adapter for extended campaigns.

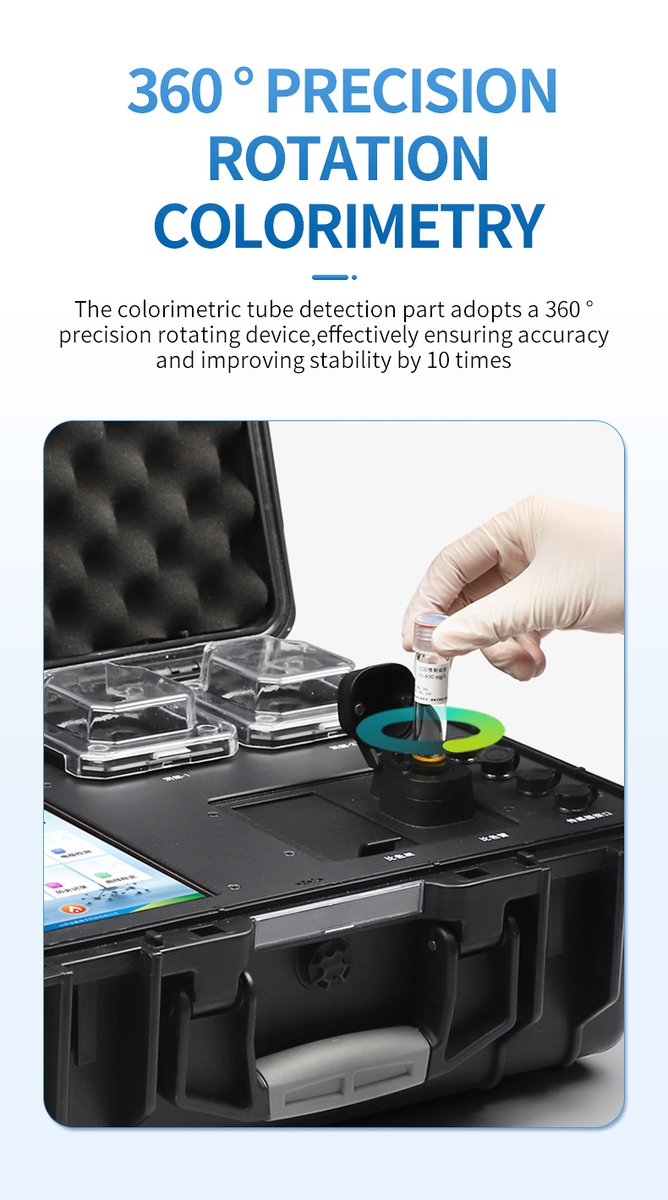

Q: What is the advantage of the 360° rotating colorimetric system?

Fixed-position colorimetric tubes can produce inconsistent readings due to uneven light path alignment, especially when the instrument is placed on uneven surfaces. The 360° rotating mechanism automatically aligns the optical path regardless of tube orientation, delivering 10× improved measurement stability and eliminating a common source of field measurement error.

Q: Can two different digestion temperatures run at the same time?

Yes. The dual-temperature-zone digester has independent PID-controlled blocks. Run COD digestion at 165°C on one side while processing total phosphorus at 120°C on the other, doubling throughput versus single-zone units.

Q: How does the cloud platform integration work?

The instrument connects via WiFi, 4G cellular, or wired RJ45 to upload test data to a dedicated cloud platform in real time. Authorized users can access the platform from any mobile device or computer to view results, perform long-term trend analysis, and generate reports. GPS coordinates are automatically attached to each data record for spatial mapping.

Q: What maintenance does the instrument require between field deployments?

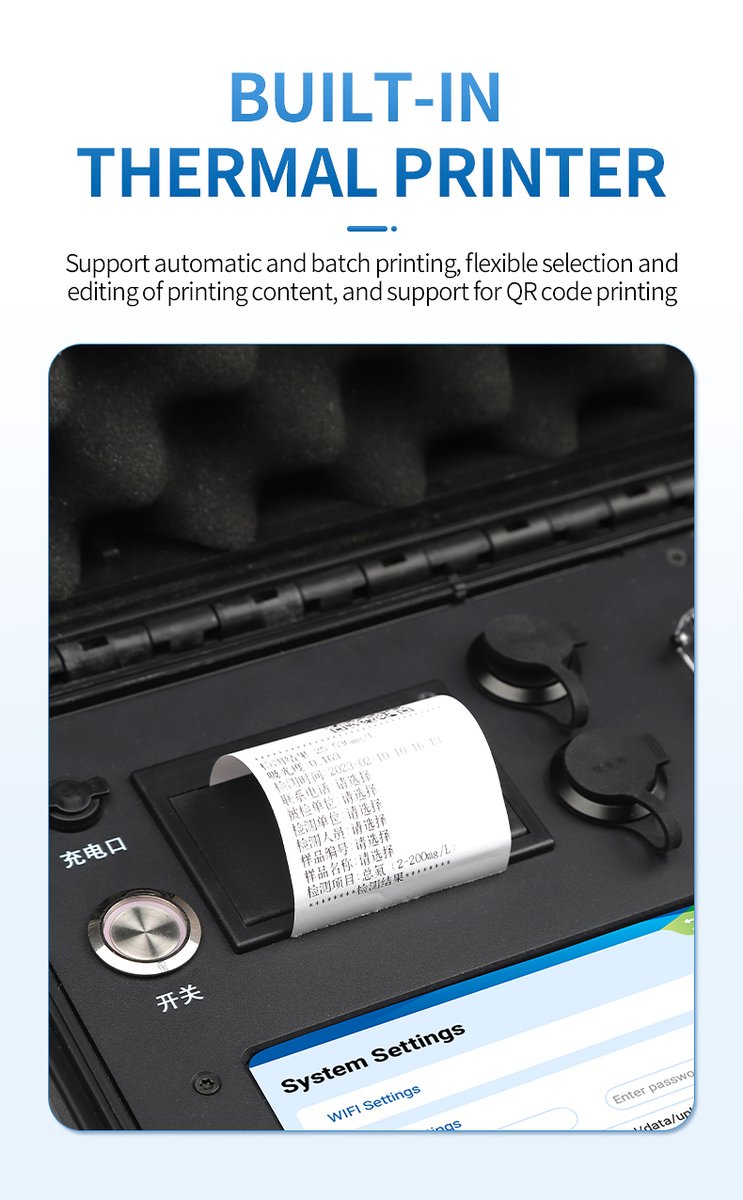

Routine maintenance is minimal. After each deployment, clean the colorimetric tube holders and cuvette slots with a soft cloth. The thermal printer paper roll should be checked before each trip. The instrument features automatic calibration, so manual recalibration is rarely needed. Factory pre-made reagent kits have labeled expiry dates and require no preparation beyond adding the water sample.
