HM-B03 Pro Multi-Parameter Analyzer for Eutrophication Assessment and Water Treatment

HM-B03 Pro Multi-Parameter Analyzer for Eutrophication Assessment and Water Treatment HM-B03 Pro

【Introduction】Purpose-built for eutrophication assessment and wastewater nutrient removal process monitoring, this analyzer integrates three-parameter spectrophotometric detection (COD, ammonia nitrogen, total phosphorus) with four electrode sensor ports, enabling simultaneous organic load and nutrient analysis in a single portable platform.
Phone Icon+86 17853698681

Product details

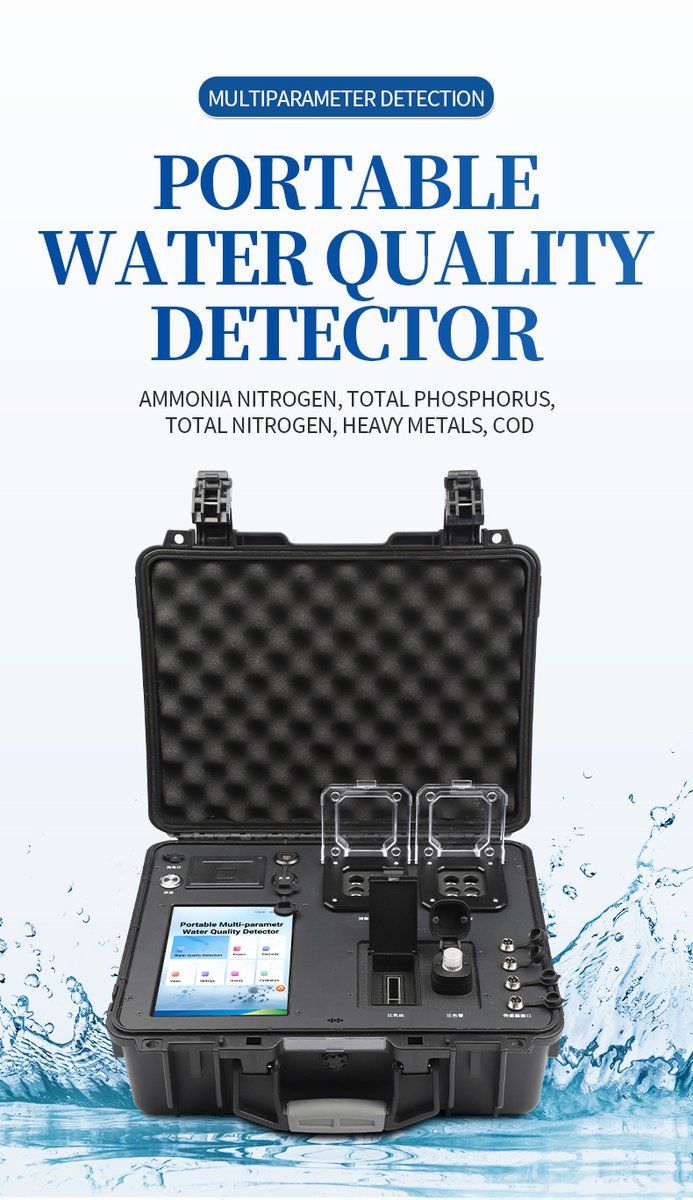

HM-B03 Pro nutrient monitoring system deployed at water treatment facility for eutrophication assessment

Integrated detection architecture combining spectrophotometric and electrode methods for nutrient analysis

Cross-sector deployment scenarios for eutrophication monitoring wastewater treatment and environmental research

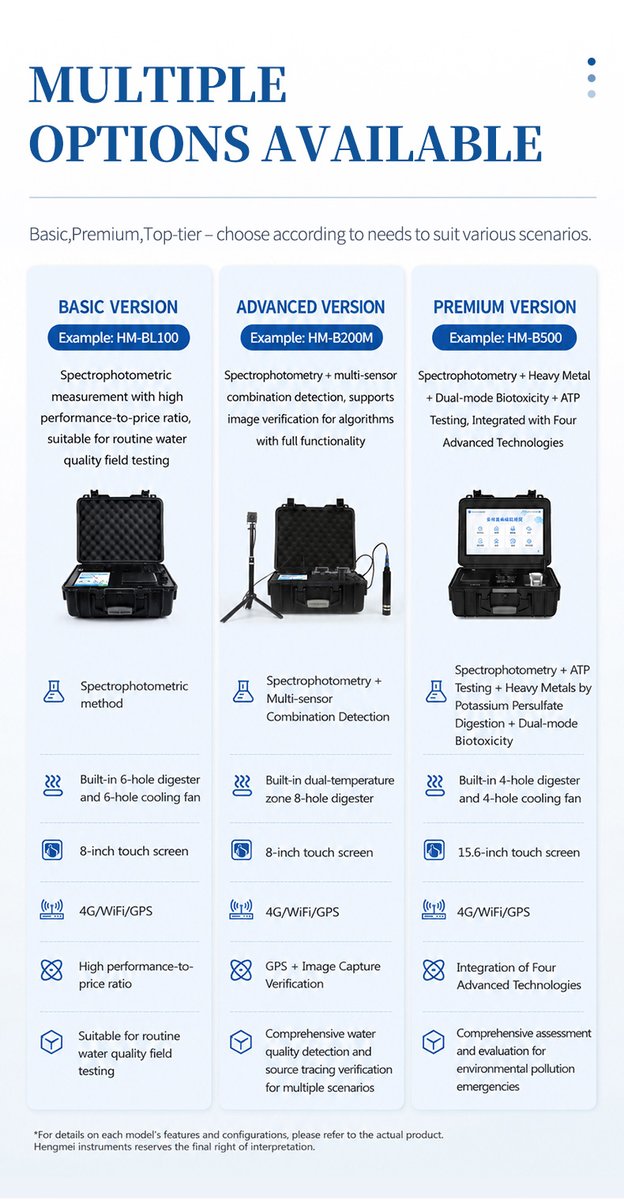

Product family configuration matrix comparing entry-level mid-range and premium nutrient analyzer models

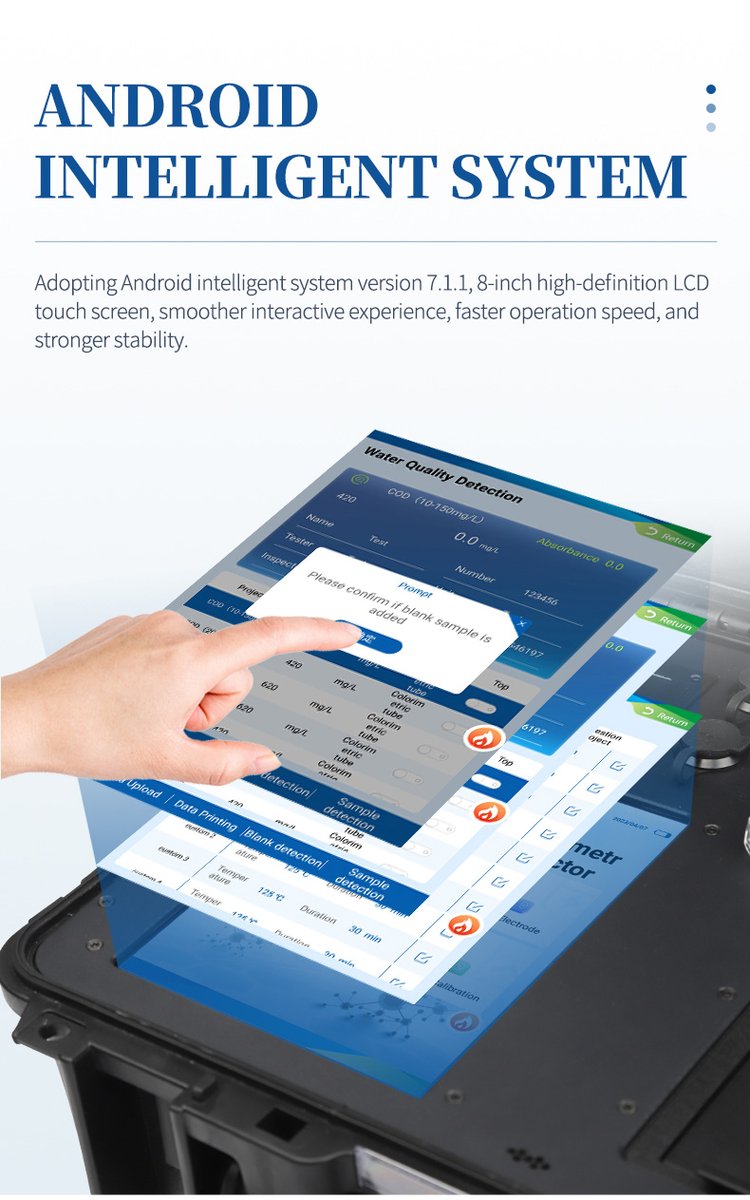

Android touchscreen data interface for COD ammonia nitrogen and phosphorus result input and display

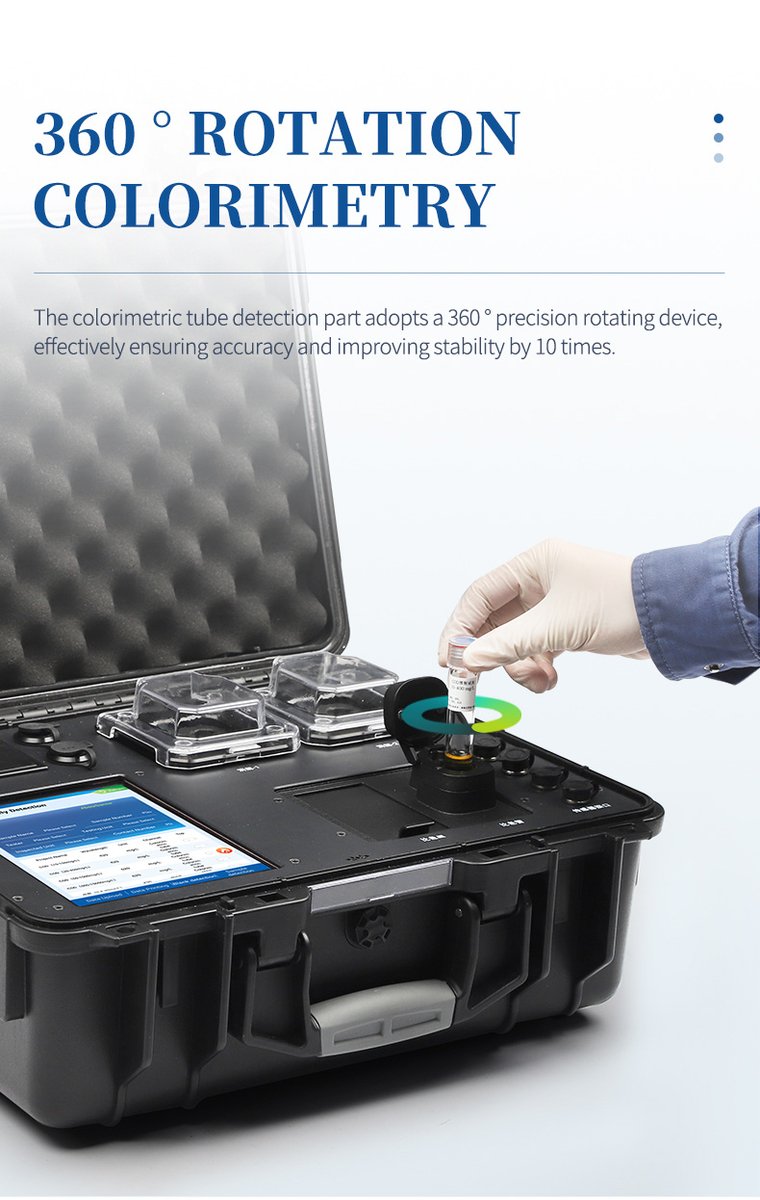

Rotating sample holder mechanism performing automated absorbance reading for nutrient digestion tubes

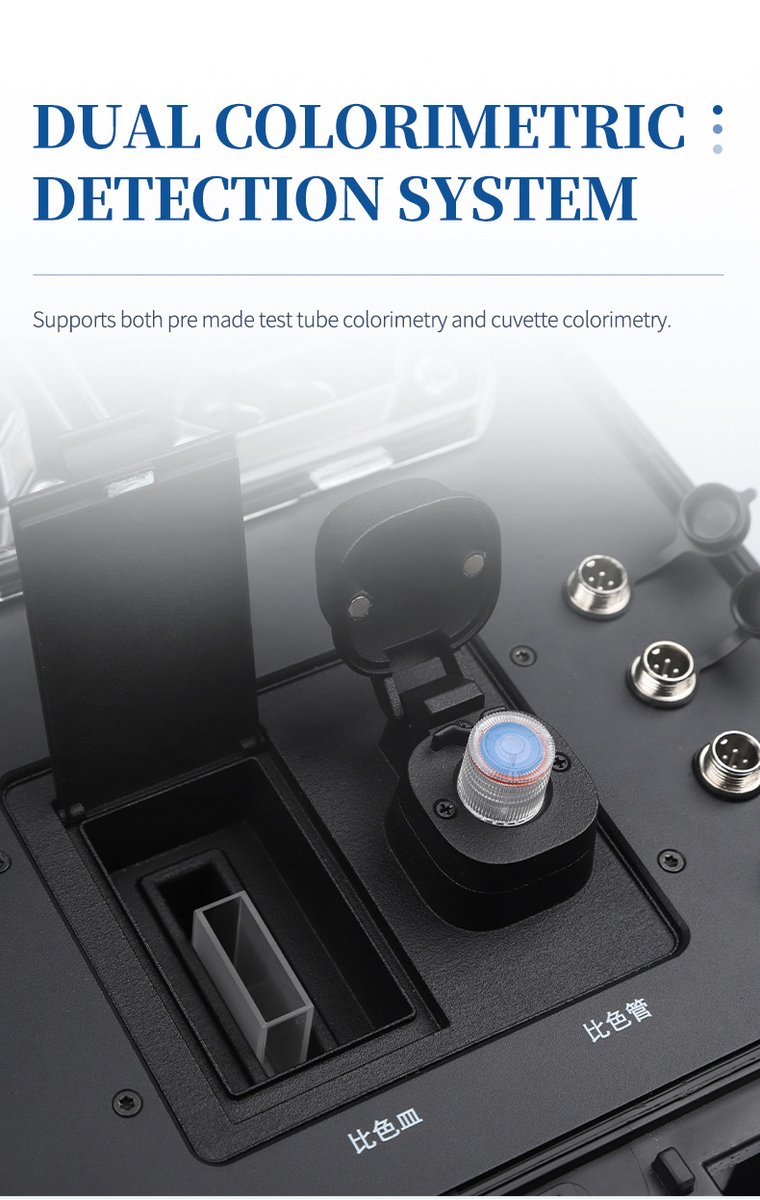

Dual-port colorimetric panel accepting both test tubes and cuvettes for flexible nutrient measurement

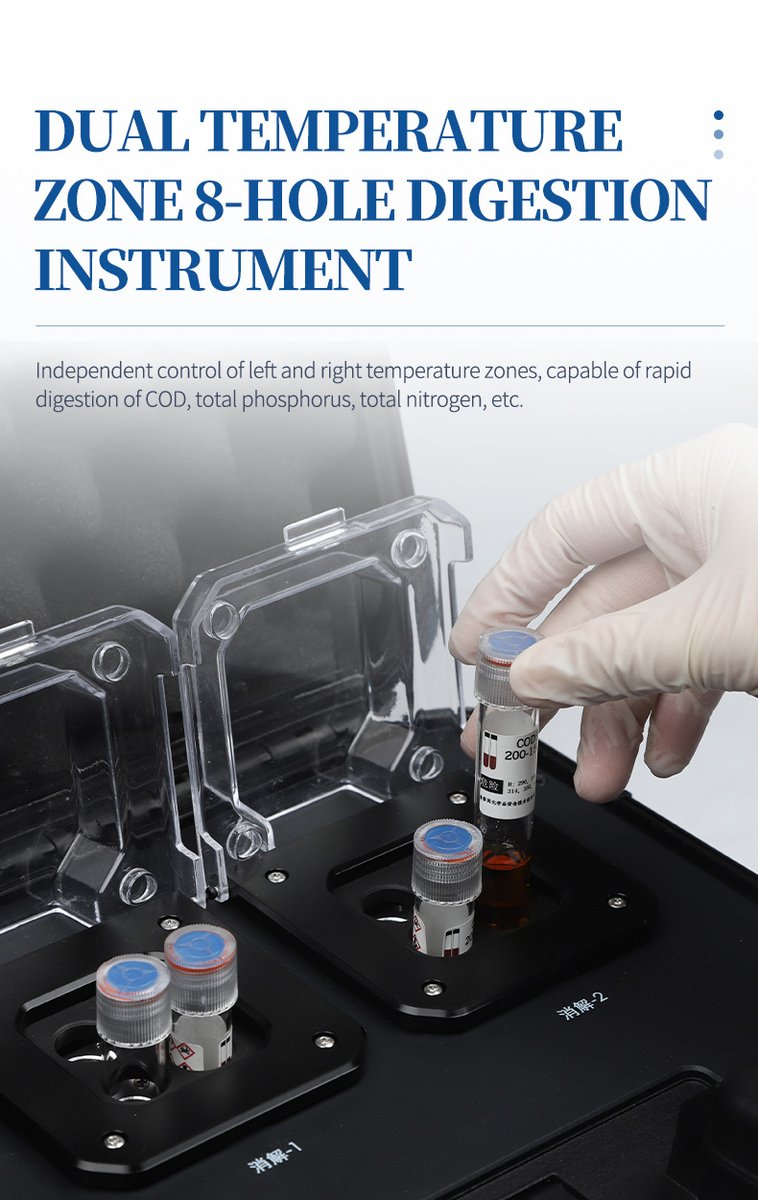

Eight-vessel dual-temperature digestion unit processing phosphorus and COD samples under protective covers

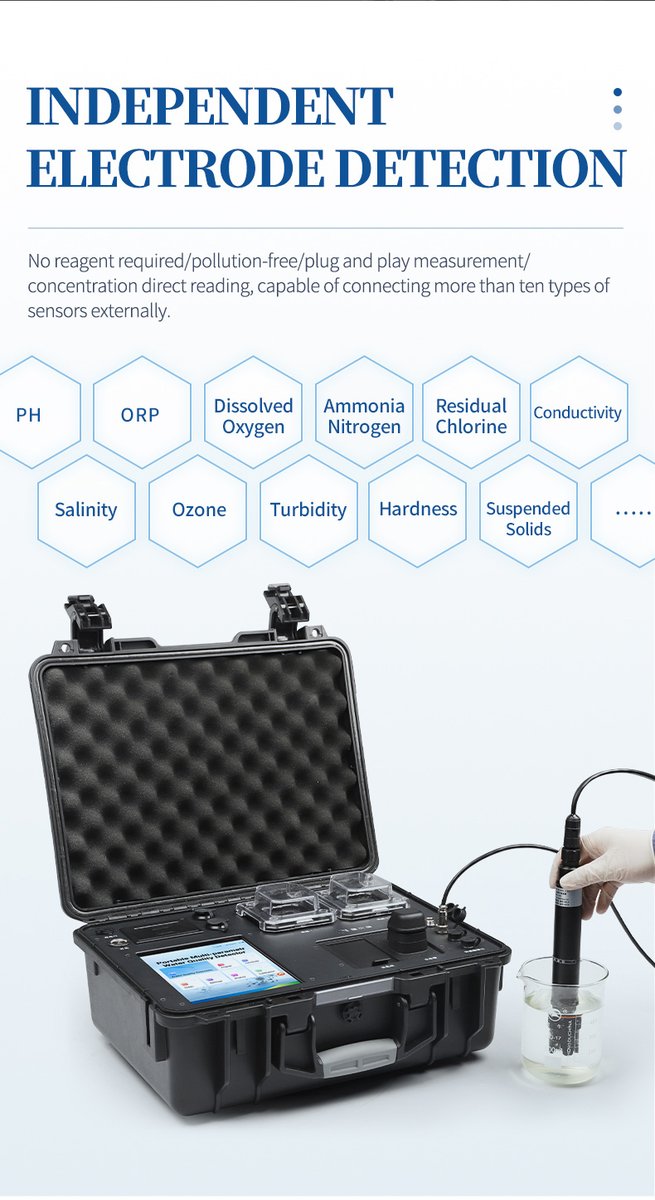

Multi-probe sensor cluster measuring dissolved oxygen pH and conductivity in nutrient-rich water sample

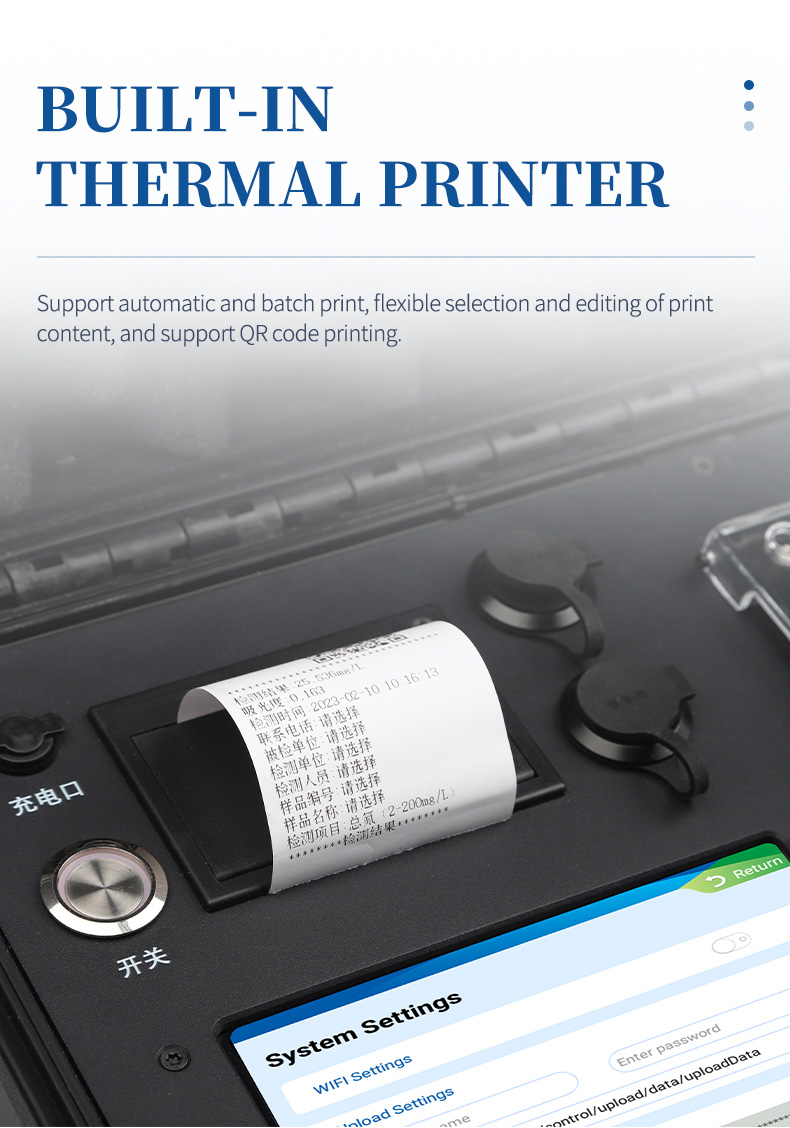

Thermal report printer generating compliance documentation for wastewater discharge nutrient limits

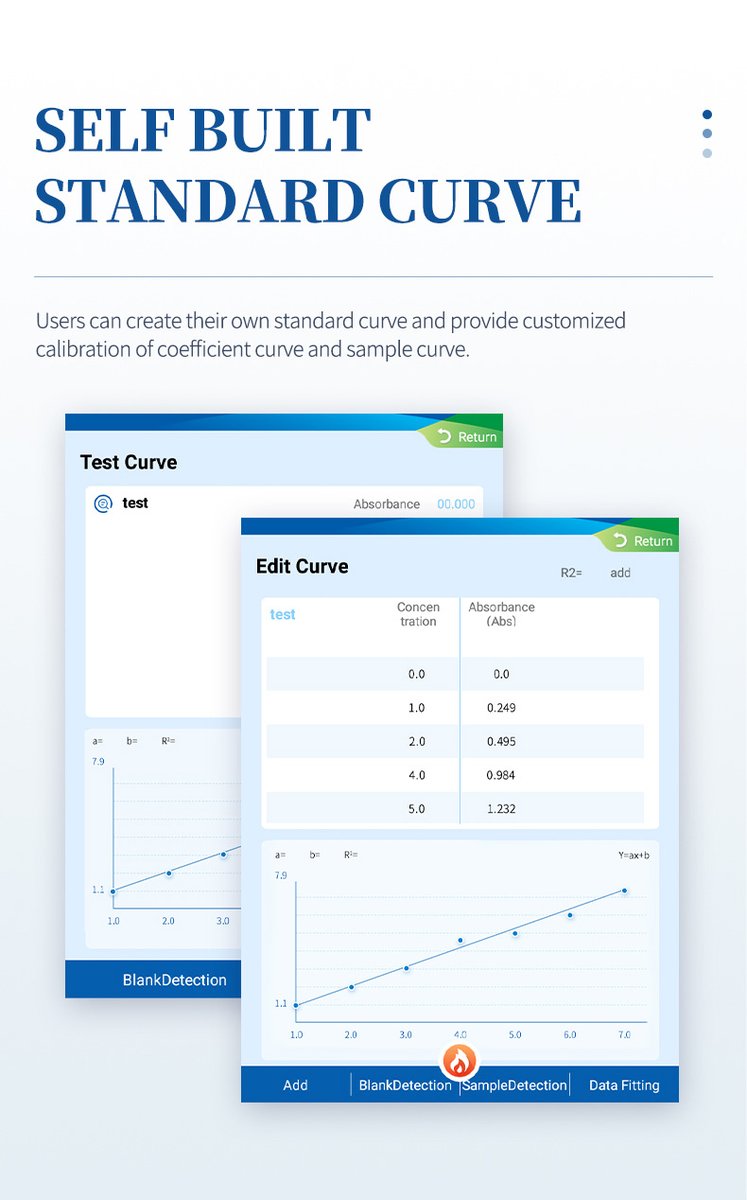

User-configurable calibration curve tool with absorbance-concentration regression for nutrient standards

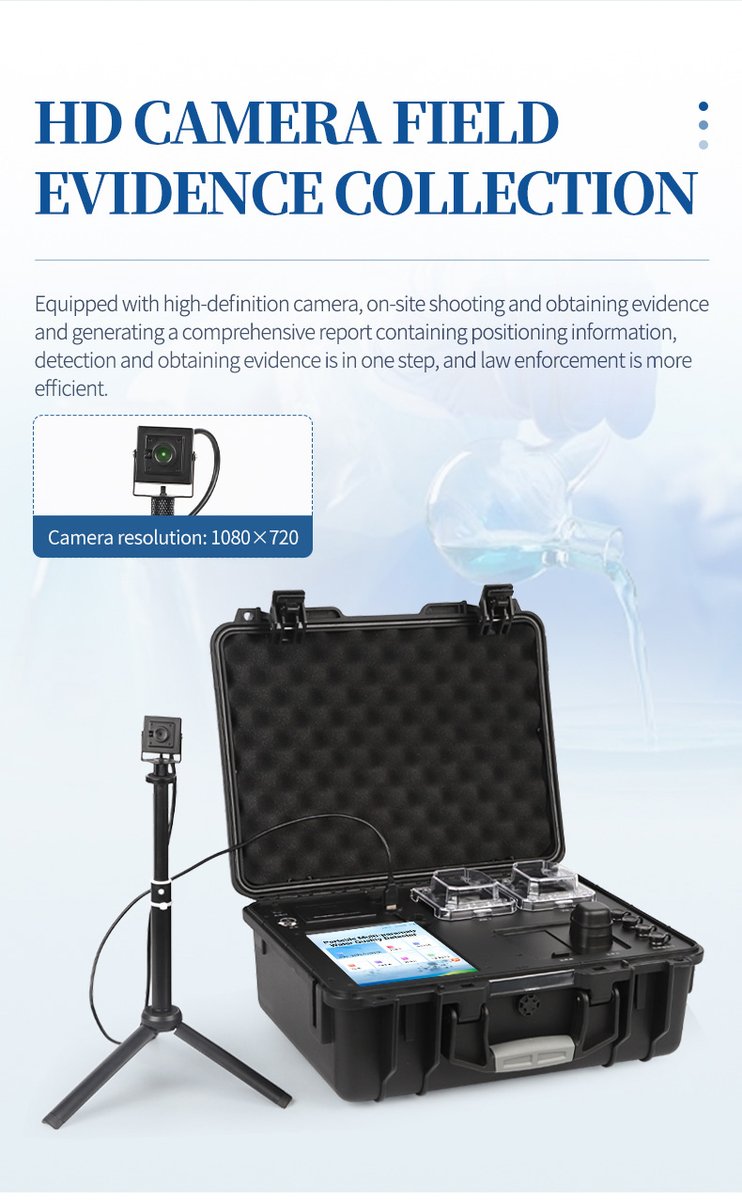

Portable photo documentation setup for recording visual evidence during field nutrient sampling campaigns

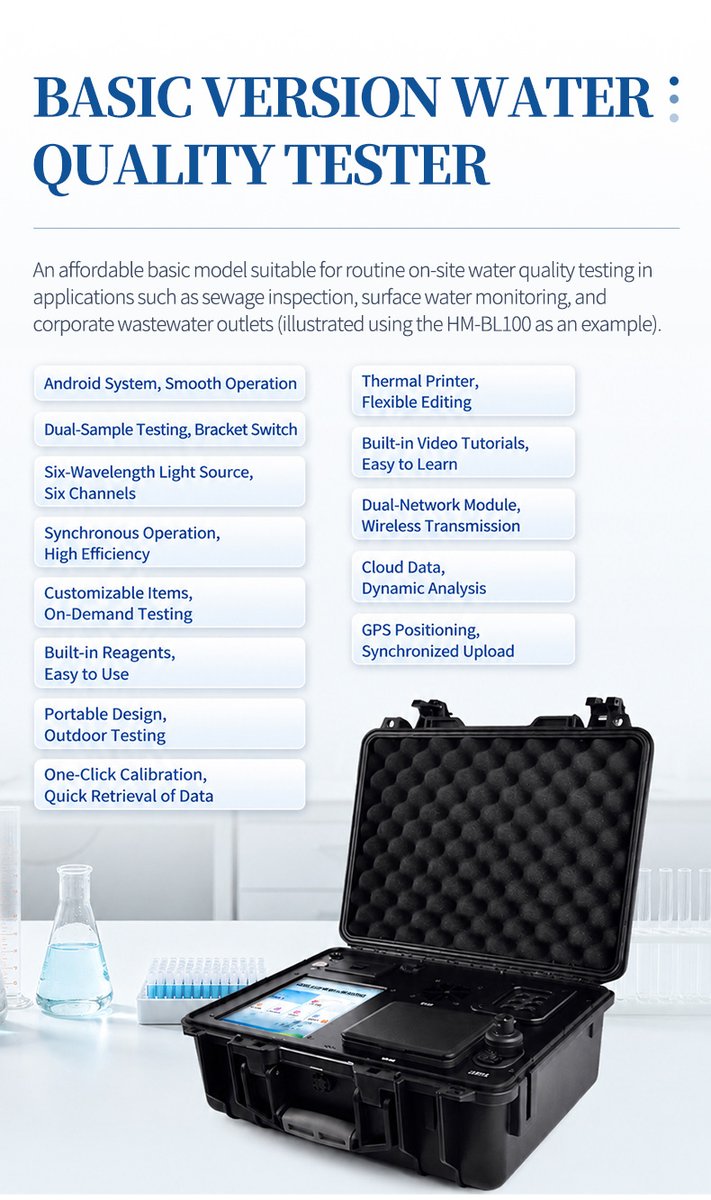

Basic model HM-BL100 specifications and component overview for entry-level water quality screening

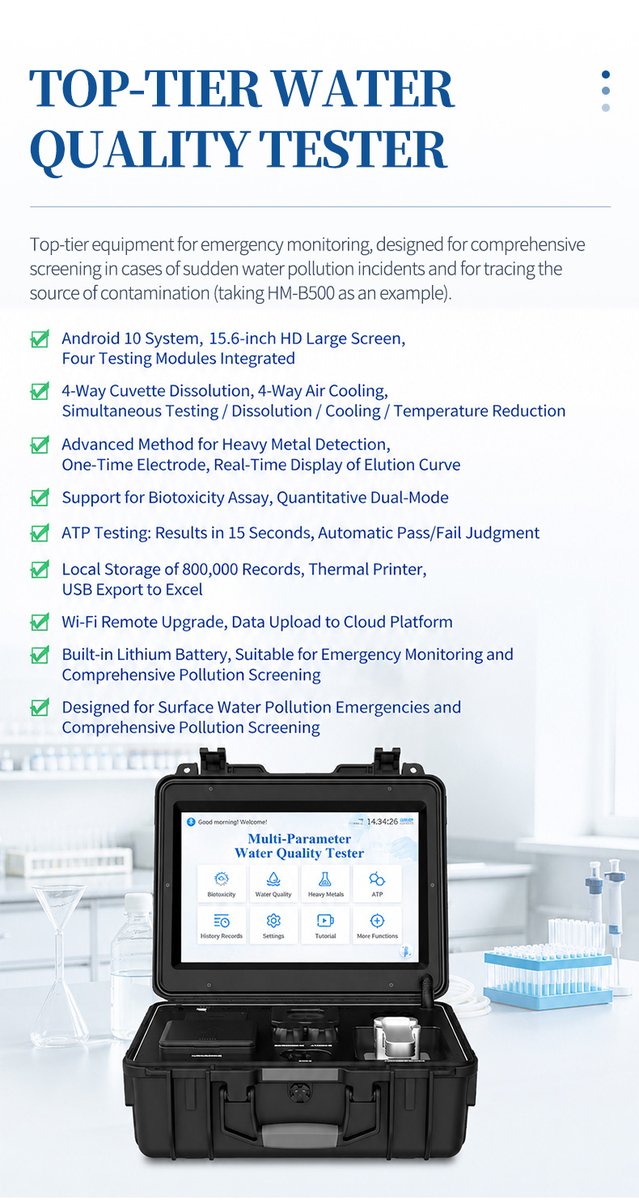

Advanced platform HM-B500 with combined spectrophotometry toxicity and heavy metal testing capability

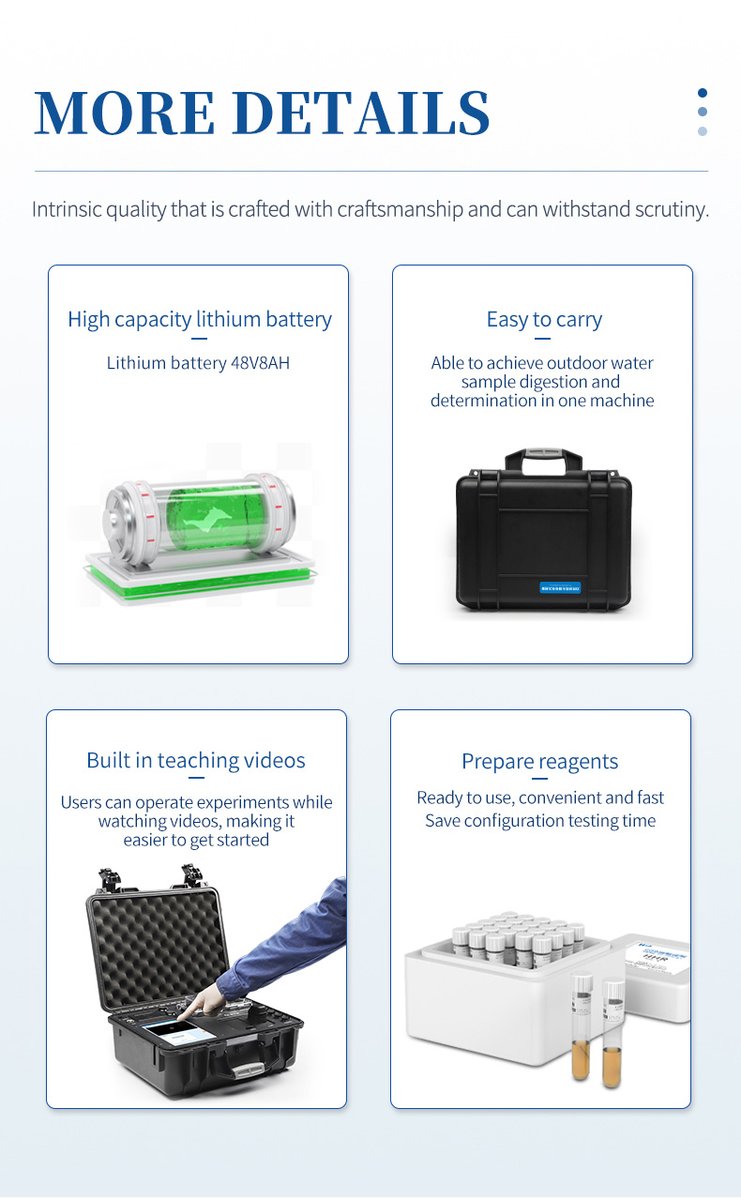

Field deployment essentials including extended battery rugged transport case training resources and reagents

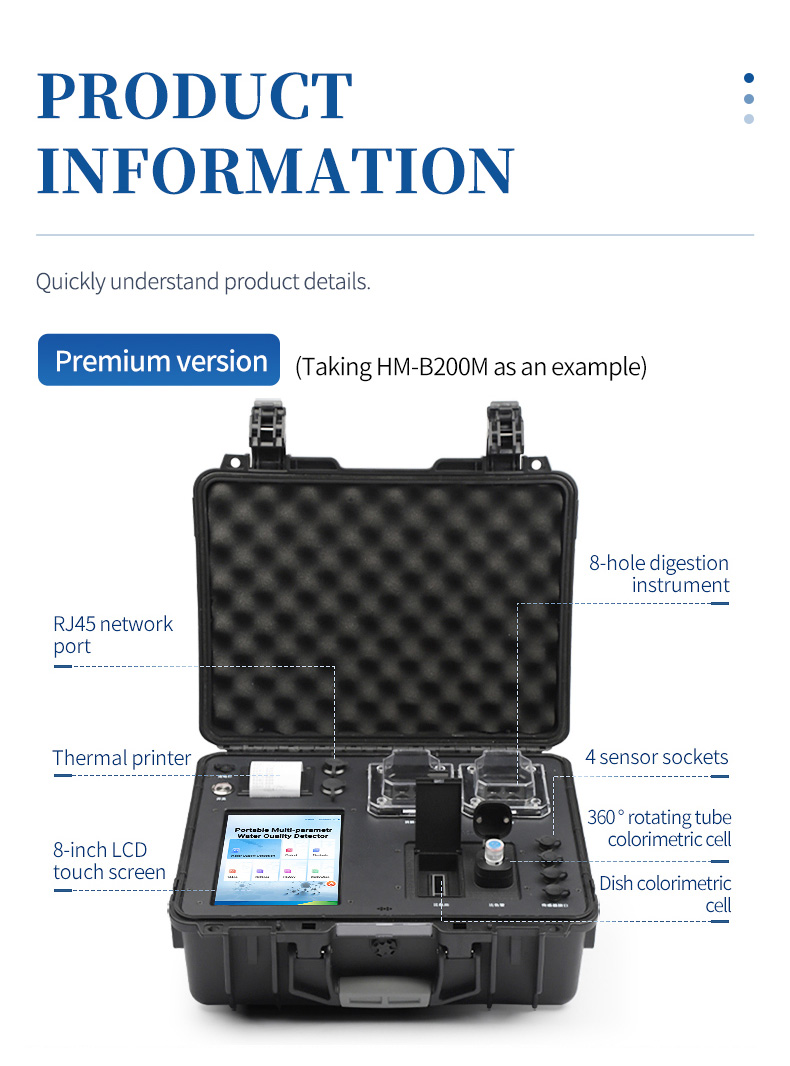

Annotated hardware schematic showing sensor ports digestion module display and connectivity interfaces

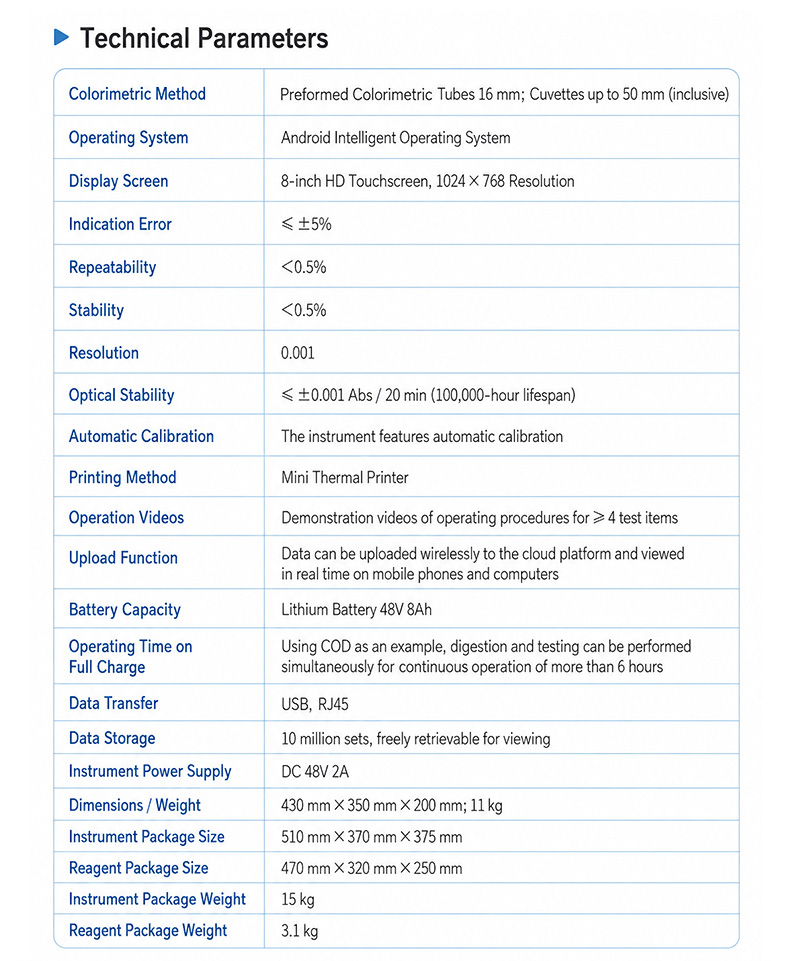

Analytical performance data sheet covering detection accuracy stability repeatability and optical specifications

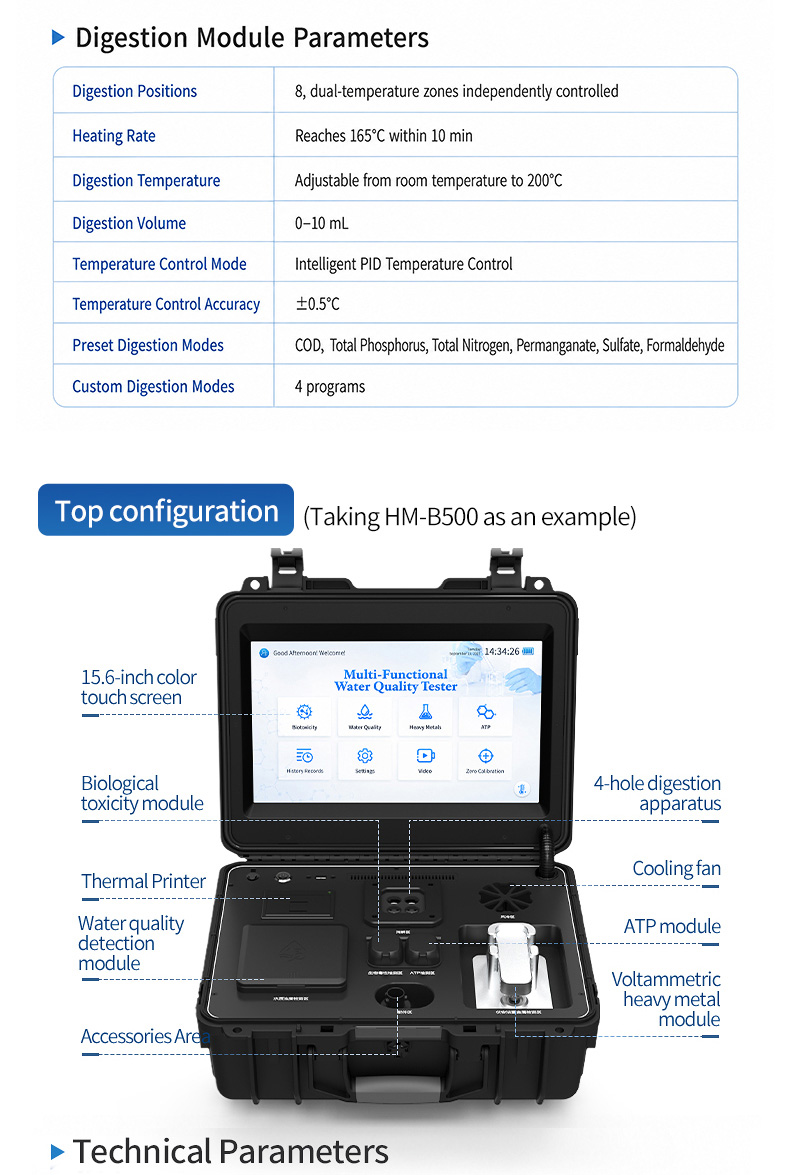

High-end model internal architecture revealing digestion block positioning battery and optical assembly layout

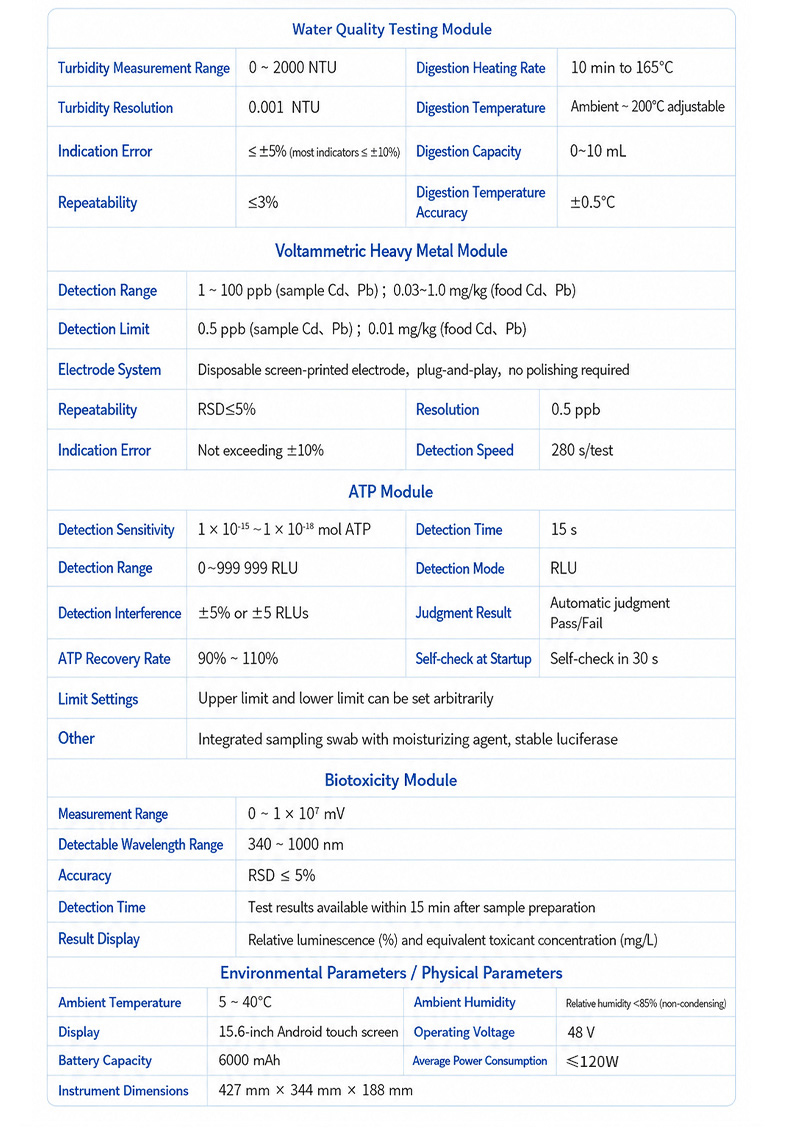

Full testing module comparison across water quality heavy metal ATP fluorescence and biotoxicity platforms

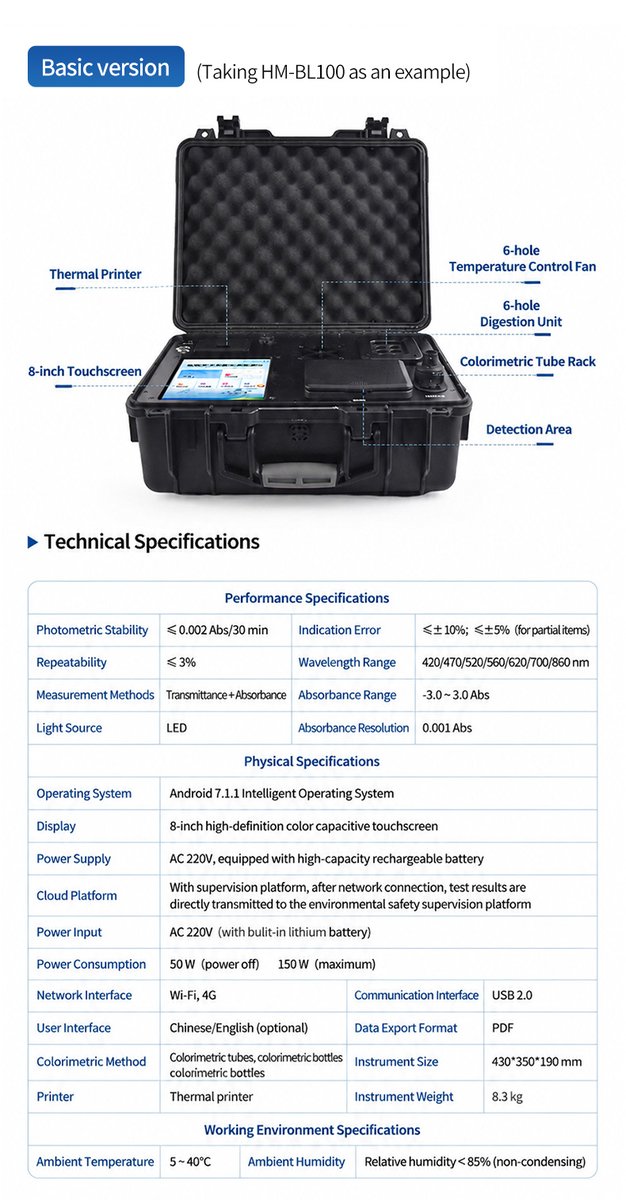

Entry-level unit technical reference with operational parameters environmental conditions and component labels

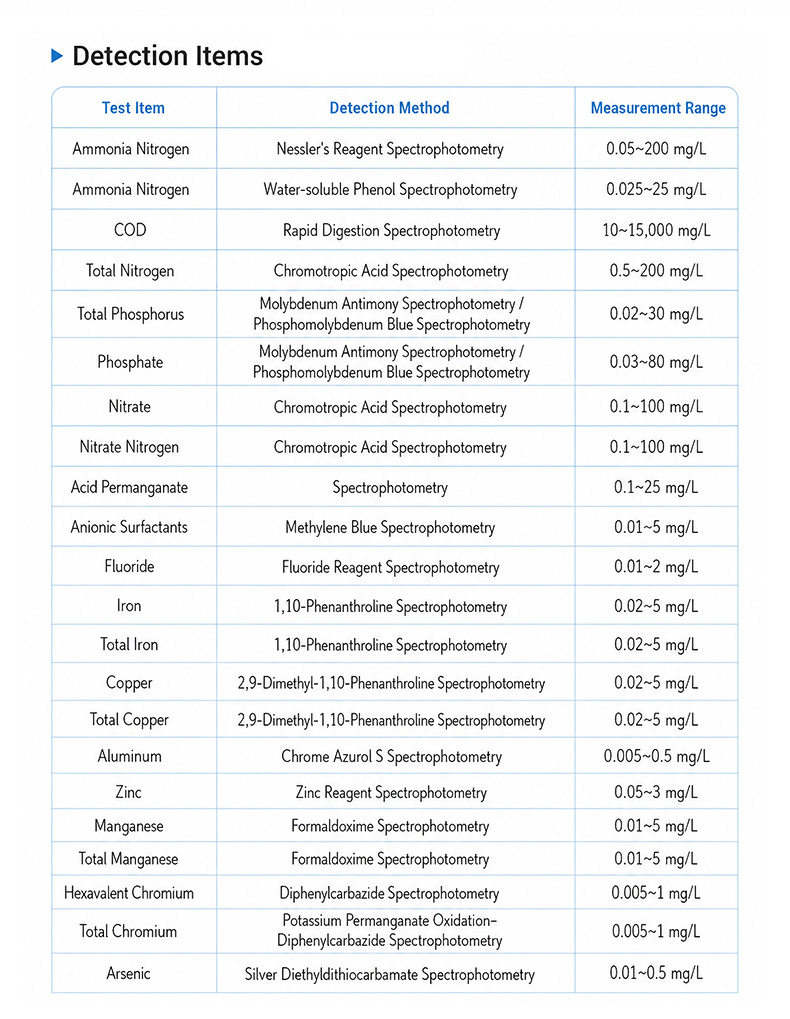

Primary water quality analyte reference chart listing detection methods measurement ranges for nutrient parameters

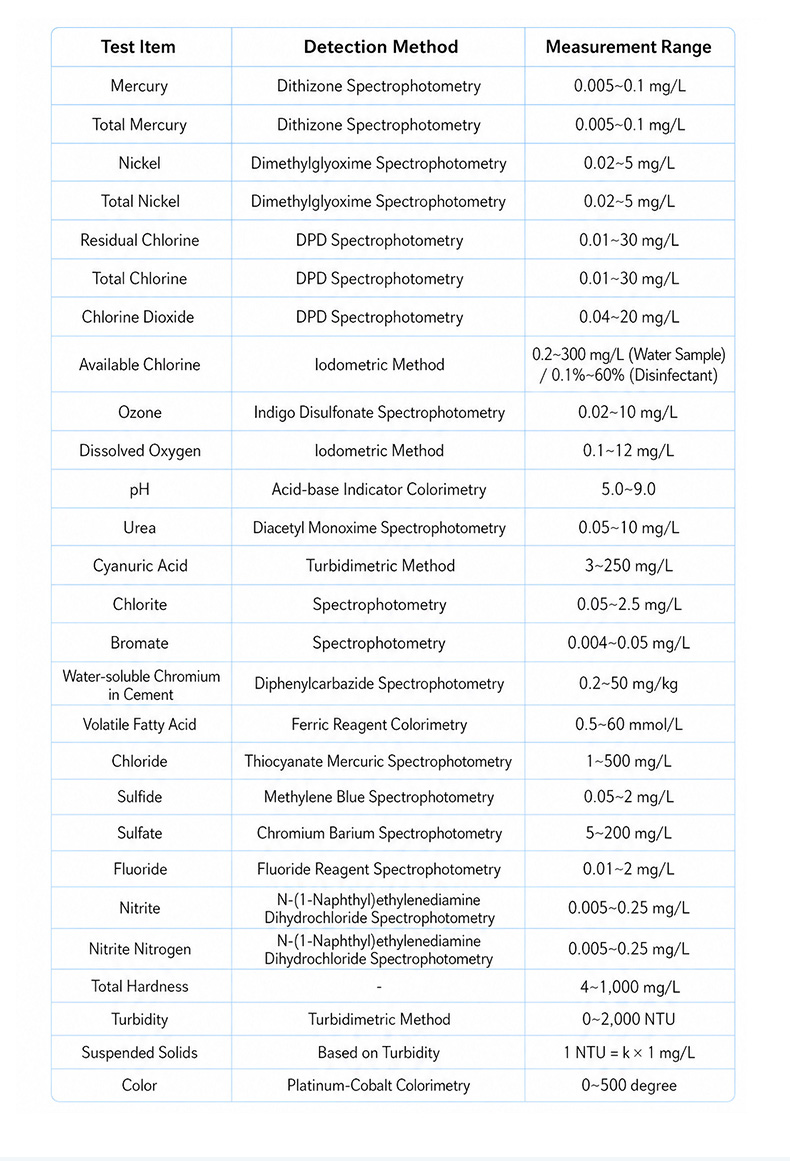

Supplementary parameter reference chart extending to sensor-based measurements and specialty indicators

Shandong Hengmei Electronic Technology team portrait at corporate headquarters operations center

Dedicated water quality research laboratory with analysts performing nutrient sample preparation and testing

Product Introduction

Eutrophication — the excessive enrichment of water bodies with nutrients such as nitrogen and phosphorus — remains one of the most pressing environmental challenges worldwide. Algal blooms, oxygen depletion, and ecosystem degradation driven by nutrient runoff from agriculture, municipal sewage, and industrial discharge affect lakes, reservoirs, and coastal waters across every continent. Effective nutrient management demands accurate, rapid, and portable analytical tools capable of measuring the three key eutrophication indicators: Chemical Oxygen Demand (COD), ammonia nitrogen (NH3-N), and total phosphorus (TP).

The HM-B03 Pro, developed by HM Instruments, integrates triple-parameter spectrophotometric detection (COD, ammonia nitrogen, total phosphorus) with a four-channel electrode sensor module for simultaneous organic load and nutrient analysis in the field. This portable platform is built for wastewater treatment plants implementing biological nutrient removal processes such as A2/O, SBR, and oxidation ditches, where tracking COD consumption, ammonia oxidation, and phosphorus uptake supports real-time process optimization.

Applications

  • Eutrophication Monitoring Programs: Simultaneous COD, ammonia nitrogen, and total phosphorus measurement for lake, reservoir, and river basin trophic status assessment
  • Wastewater Treatment Plant Nutrient Removal: Process monitoring for A2/O, SBR, MBR, and oxidation ditch biological nutrient removal systems
  • Municipal Sewage Discharge Compliance: Verification that effluent ammonia nitrogen and total phosphorus concentrations meet regulatory discharge limits
  • Industrial Wastewater Pretreatment: Nutrient load assessment for food processing, pharmaceutical, and chemical plant effluent before discharge to municipal sewers
  • Agricultural Runoff Assessment: Field measurement of nutrient concentrations in irrigation return flow and drainage water
  • Drinking Water Source Protection: Early warning monitoring of nutrient intrusion in reservoir and lake water supply sources
  • Aquaculture Water Quality Management: Nutrient tracking in recirculating aquaculture systems to prevent eutrophic conditions
  • Environmental Impact Assessments: Baseline and post-construction nutrient monitoring for development projects near sensitive water bodies

Key Features and Advantages

  1. Triple-parameter spectrophotometric platform integrates COD, ammonia nitrogen, and total phosphorus — the three core eutrophication indicators — in a single portable unit
  2. Four sensor interfaces enable concurrent pH, dissolved oxygen, conductivity, and turbidity measurement alongside spectrophotometric detection for comprehensive water quality profiling
  3. Built-in dual-zone 8-hole digester with independent PID control (±0.5°C) processes COD and phosphorus samples simultaneously at different temperatures
  4. Dual colorimetric system supporting 16mm pre-made test tubes and cuvettes up to 50mm accommodates diverse sample matrices and concentration ranges
  5. 360° precision rotating holder enhances measurement stability for repeatable field results
  6. 48V 8Ah lithium battery delivers over 6 hours of combined digestion and detection — enough for full-day field sampling without external power
  7. Six preset digestion programs (COD, total phosphorus, total nitrogen, permanganate index, sulfate, formaldehyde) plus 4 custom modes cover all major nutrient digestion protocols
  8. Android 7.1.1 OS with 8-inch HD touchscreen (1024×768) provides intuitive operation with built-in tutorial videos for 4+ test items
  9. 10 million data set storage with GPS positioning and time-stamped records supports long-term eutrophication trend analysis
  10. Cloud platform connectivity via WiFi, 4G, and RJ45 enables real-time data upload to environmental regulatory systems
  11. Thermal printer with QR code output generates compliance documentation on-site
  12. User-built standard curves and factory-prepared reagent consumables simplify field operation and reduce preparation time
  13. Detection, digestion, and sensor measurement can all run simultaneously to maximize field efficiency
  14. Automatic calibration function and customizable detection items available on request

Technical Specifications

SpecificationValue
ModelHM-B03 Pro
Spectrophotometric ParametersCOD, Ammonia Nitrogen, Total Phosphorus
Sensor Interfaces4 ports, simultaneous insertion and detection
Indication Error≤ ±5%
Repeatability< 0.5%
Stability< 0.5%
Resolution0.001
Optical Stability≤ ±0.001 Abs/20 min (100,000-hour light source life)
Colorimetric Method16mm pre-made test tubes; cuvettes 50mm and below
Display8-inch HD touchscreen, 1024×768
Operating SystemAndroid smart system (7.1.1)
Automatic CalibrationBuilt-in
PrinterMicro thermal printer
Operation Videos4+ items with step-by-step demos
Data UploadWireless cloud upload
Battery48V 8Ah lithium battery
Operating Time6+ hours (COD digestion and detection together)
Data TransferUSB, RJ45, WiFi
Digestion Capacity8 vials, dual-zone independent control
Heating Rate165°C within 10 minutes
Digestion TemperatureRoom temperature – 200°C adjustable
Digestion Volume0–10 ml
Temperature ControlSmart PID, ±0.5°C accuracy
Preset Digestion ModesCOD, total phosphorus, total nitrogen, permanganate index, sulfate, formaldehyde
Custom Digestion Modes4
Data Storage10 million sets
Power SupplyDC48V2A
Dimensions430 × 350 × 200 mm
Weight11 kg

FAQ

Q1: Why is three-parameter testing (COD + NH3-N + TP) important for eutrophication assessment?

Eutrophication is primarily driven by excess nitrogen and phosphorus entering water bodies. COD reflects organic pollution load, ammonia nitrogen indicates the bioavailable nitrogen fraction that fuels algal growth, and total phosphorus is often the limiting nutrient in freshwater systems. Measuring all three parameters together provides a complete picture of nutrient loading status, trophic level classification, and pollution source identification — information that single-parameter testing cannot deliver.

Q2: How does the HM-B03 Pro support wastewater treatment plant nutrient removal process monitoring?

Biological nutrient removal processes such as A2/O and SBR require regular tracking of COD consumption in anaerobic zones, ammonia nitrogen oxidation in aerobic zones, and phosphorus uptake by PAOs (phosphorus accumulating organisms). The HM-B03 Pro's simultaneous digestion and detection capability allows plant operators to analyze grab samples from multiple process stages within minutes, enabling real-time adjustments to aeration, recirculation ratios, and chemical phosphorus precipitation dosing.

Q3: Can the sensor module measure dissolved oxygen and pH simultaneously with spectrophotometric tests?

Yes. The four sensor interfaces accept electrode probes for pH, ORP, dissolved oxygen (fluorescence method), conductivity, turbidity, and many other parameters. These measurements run concurrently with COD, ammonia nitrogen, and total phosphorus spectrophotometric detection. This is particularly valuable for eutrophication field studies where dissolved oxygen stratification profiles must be correlated with nutrient concentration data at the same sampling point.

Q4: What is the battery endurance for full-day field nutrient monitoring campaigns?

The 48V 8Ah lithium battery provides over 6 hours of operation with digestion and detection running simultaneously, covering full-day field sampling with transit between sites. The battery recharges via the DC48V2A adapter, and the instrument also operates from mains power at fixed stations.

Q5: How does cloud data connectivity support environmental compliance reporting?

The HM-B03 Pro uploads detection data via WiFi, 4G, or RJ45 to cloud platforms for real-time viewing on mobile and PC. For wastewater plants with discharge permits, this documents effluent nutrient concentrations against regulatory limits. The 10 million data set storage with GPS positioning provides a complete audit trail for environmental inspections.
