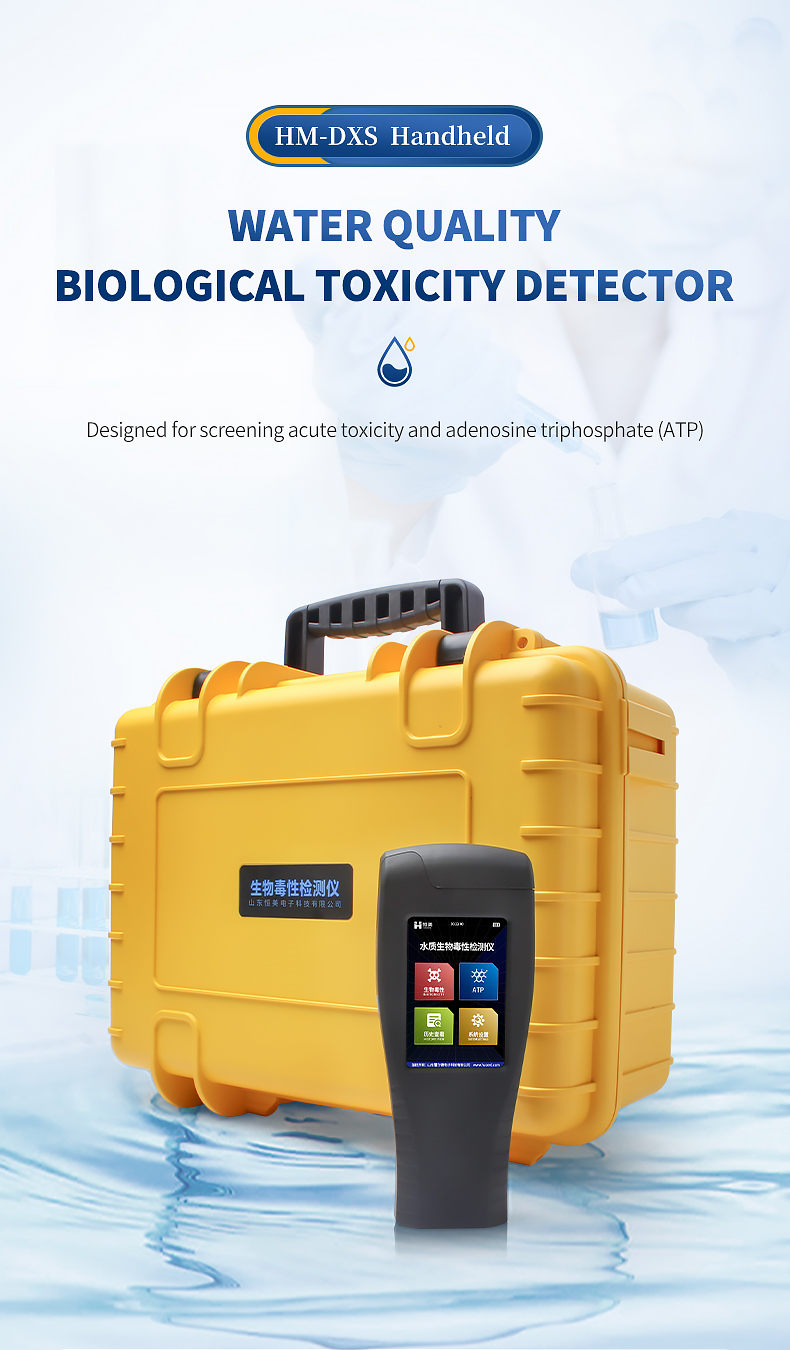

Water Toxicity Tester HM-DXS

Product Overview:

The water toxicity tester is a new generation of biological acute toxicity analyzer for laboratory use. It is a toxicity detection system based on bioluminescent sensing technology. It performs rapid qualitative detection based on the changes in the luminous intensity of luminous bacteria during metabolism. Compared with traditional fish, fleas and other aquatic organisms as biological detection methods, the luminous bacteria method is simple, rapid, sensitive, adaptable, repeatable, accurate, low-cost and widely used. It is a rapid water toxicity detection instrument designed for environmental pollution, emergency accidents, security inspections and routine inspections. It can be used for the overall toxicity detection of heavy metals, poisons, nerve agents, pesticide preparations and other substances in water on site.

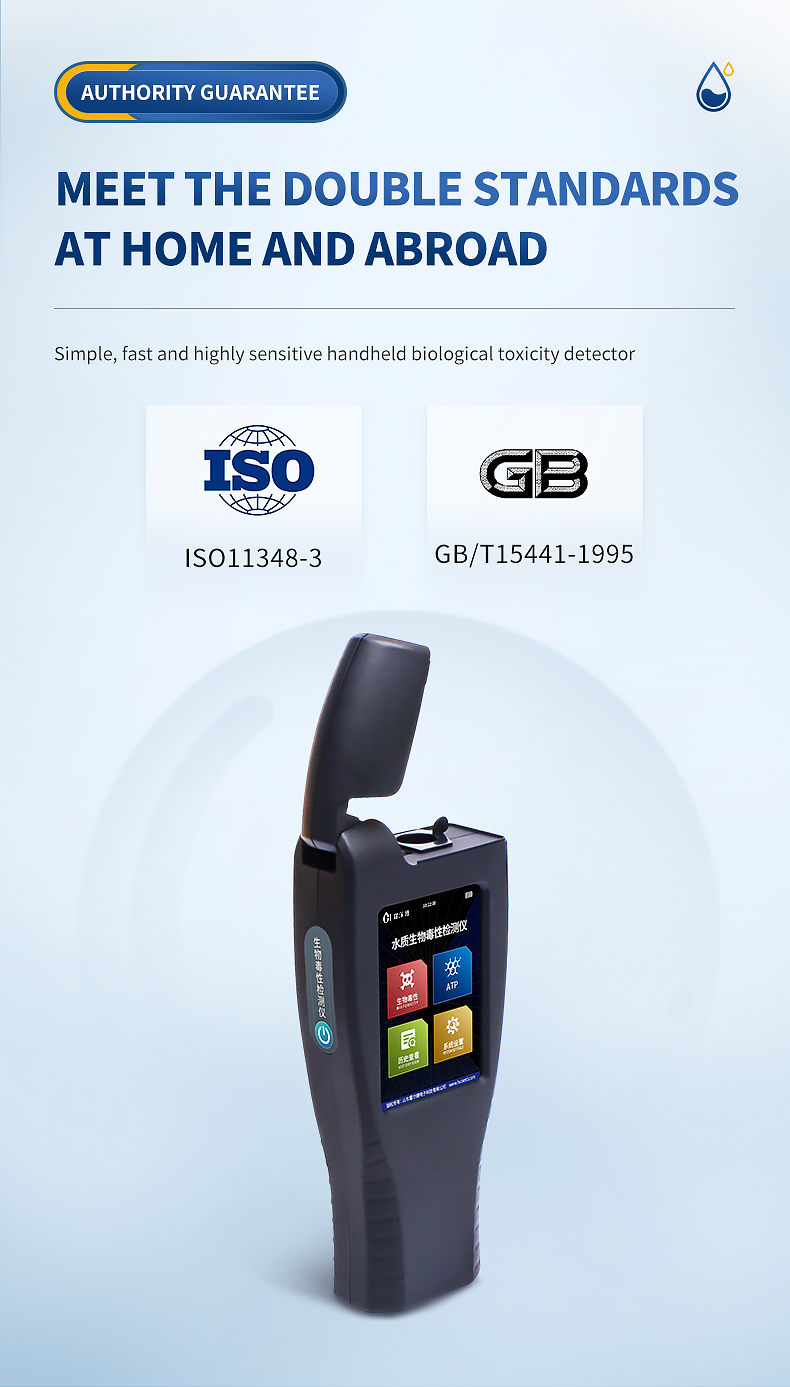

It complies with the national standard "GB/T15441-1995 Determination of acute toxicity of water quality-luminous bacteria method" and international standards (ISO11348-3).

Application industries:

Drinking water testing, emergency response-biological pollution, emergency response-toxic chemicals, toxic and hazardous waste, municipal drainage, rainwater testing, drilling fluid and mud testing, mining, wastewater, soil and water testing, industrial wastewater discharge testing, process water testing, seawater testing, medical/pharmaceutical product testing, food packaging testing, personal care products and household chemicals testing, sediment testing, rainwater runoff testing, solid sample testing, food processing water testing, etc.

Detection principle:

The handheld biological toxicity detector performs triple functions: toxicity testing, ATP testing and determination of microbial contamination; toxicity testing is performed using luminescent bacteria that exist in nature. This bacteria emits light during normal metabolism. If placed in a toxic environment, their cell respiration process is affected, resulting in a decrease in the amount of light emitted. The luminescence detector measures the amount of light emitted by the luminescent bacteria before and after exposure to the toxic environment, and the degree of reduction in the amount of light corresponds to the strength of the toxicity.

Instrument features:

1. Comply with national standards (GB/T154411995) and international standards (ISO11348-3);

2. A biological early warning system that is sensitive to more than 3,000 toxic compounds;

3. Fast, reliable, and reproducible analysis results: Results are obtained within 15 minutes after sample preparation;

4. A simple, fast, and highly sensitive portable water quality detector, specially designed for screening acute toxicity and adenosine triphosphate (ATP);

5. Android smart operating system, more Intelligent and more user-friendly;

6. Combined with ATP detection function, quantitative calculation of ATP concentration on site, enhancing the anti-interference ability of water quality toxicity detector, one machine with multiple functions;

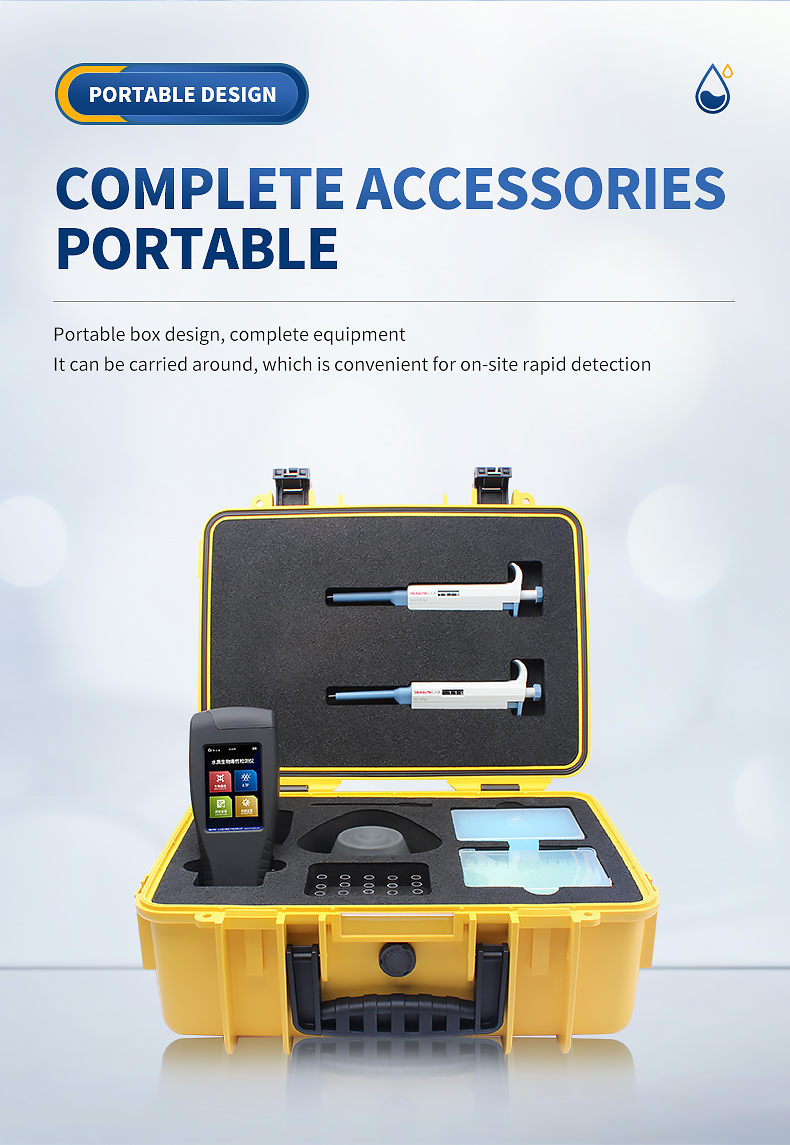

7. Portable handheld design, more convenient for on-site detection;

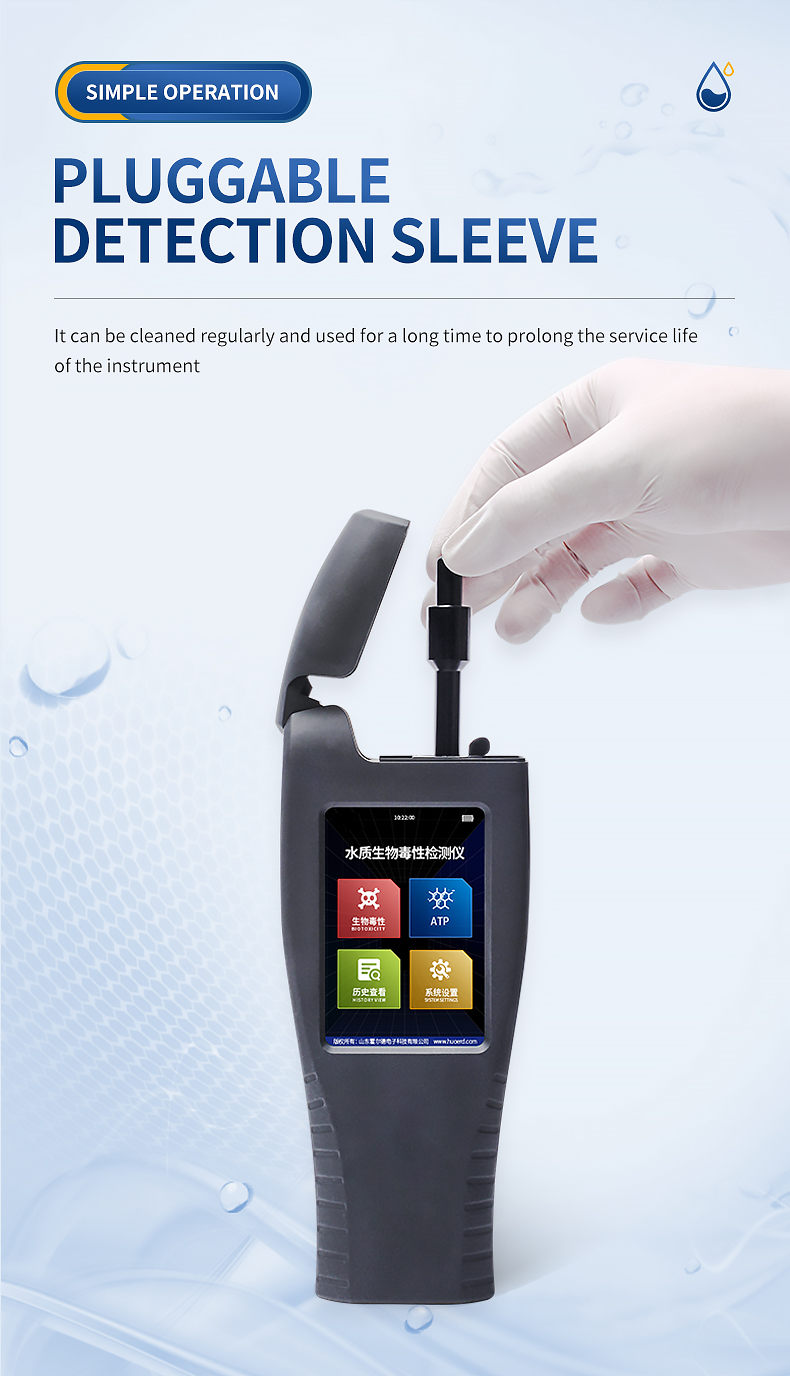

8. The detection sleeve adopts a plug-in flexible design, which can be cleaned regularly for long-term use to extend the life of the instrument;

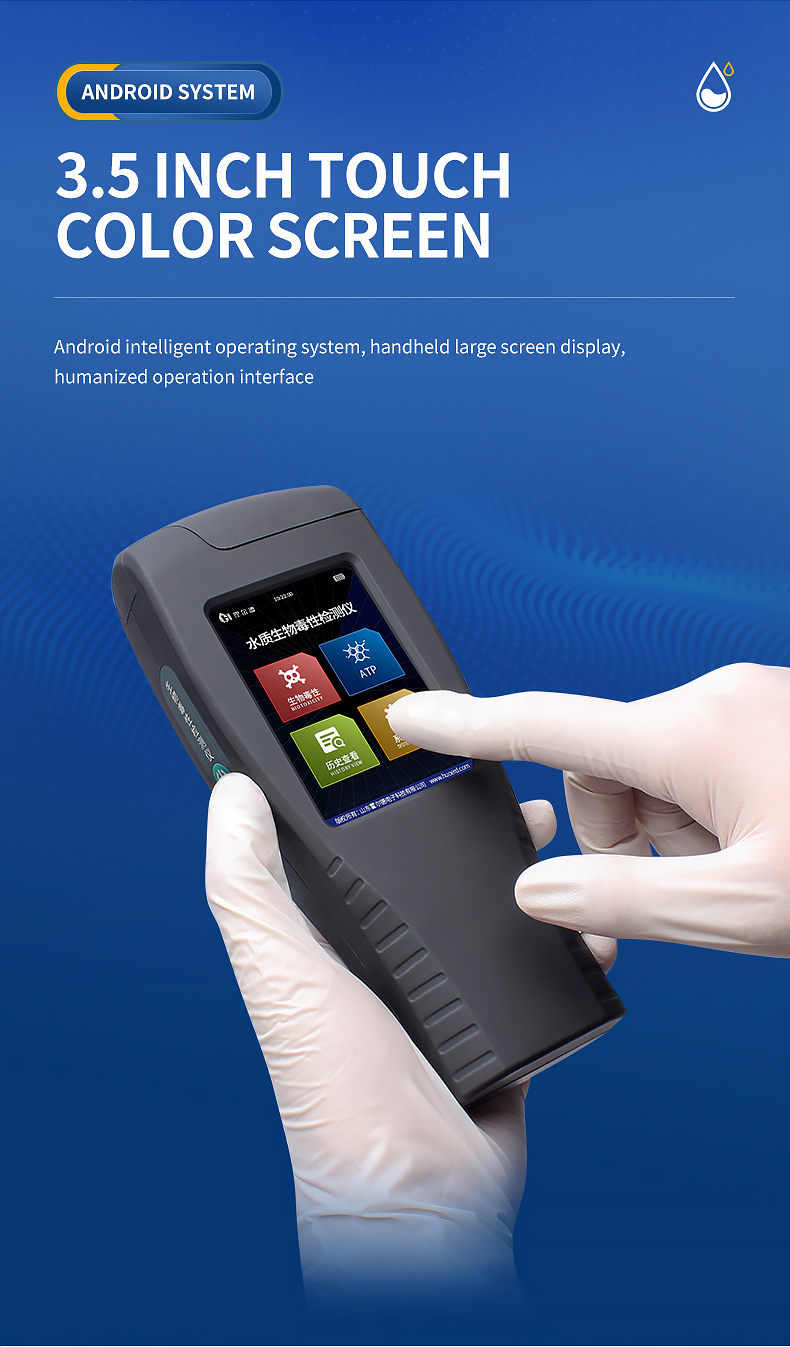

9. 3.5-inch true color touch screen, eliminating cumbersome buttons and making operation more convenient;

10. Using silicon photomultiplier tubes, greatly improving detection sensitivity;

11. With WIFI, mobile phone hotspot networking and Bluetooth transmission function can realize wireless transmission to relevant monitoring and supervision platforms, realize real-time data, and better meet the scene requirements of regulatory departments;

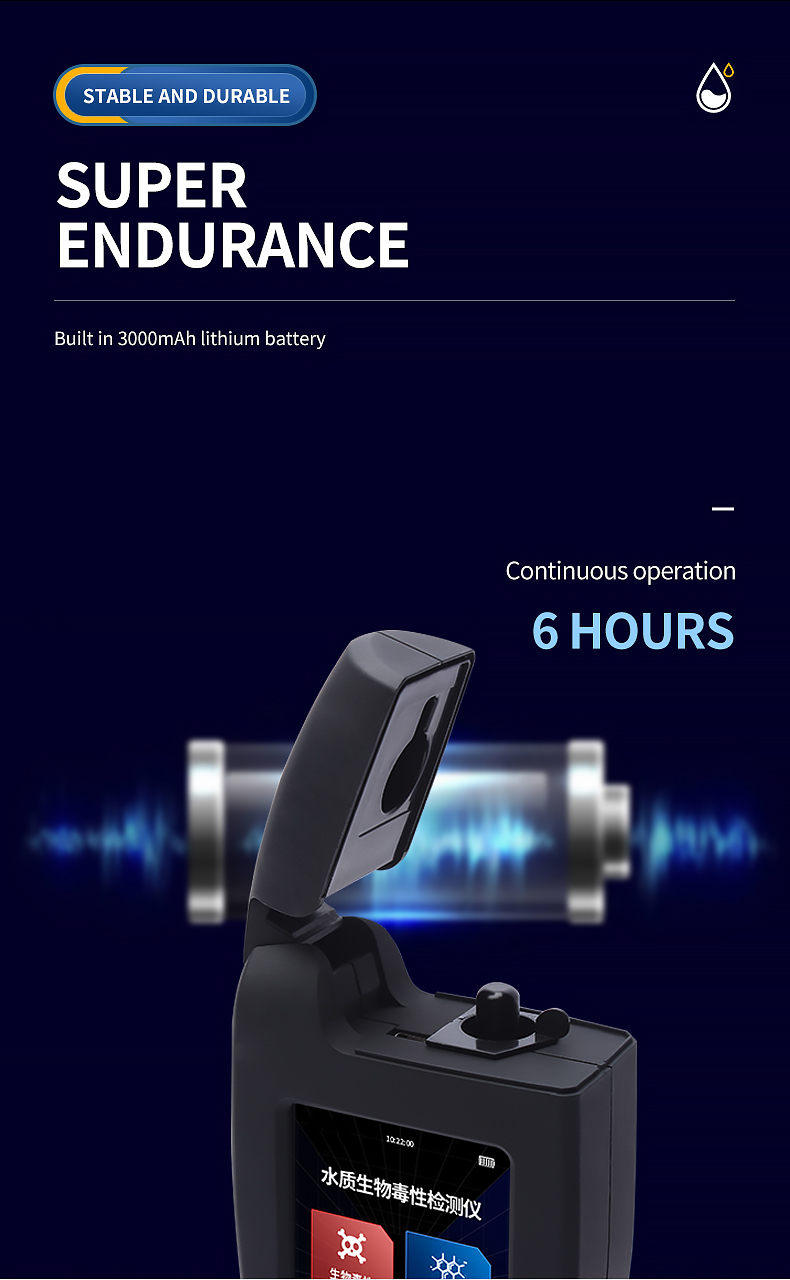

12. The instrument has a built-in 3500mAH lithium battery pack. When the external power is off or there is no power supply, the standby time is more than 10 hours;

13. A curve can make tens of thousands of curve concentration points, and the curve concentration points can be added by yourself without manual recording, ensuring that the curve value is more accurate;

14. The ATP mode can set the upper and lower line values, which is more convenient for random inspection to judge the qualified rate;

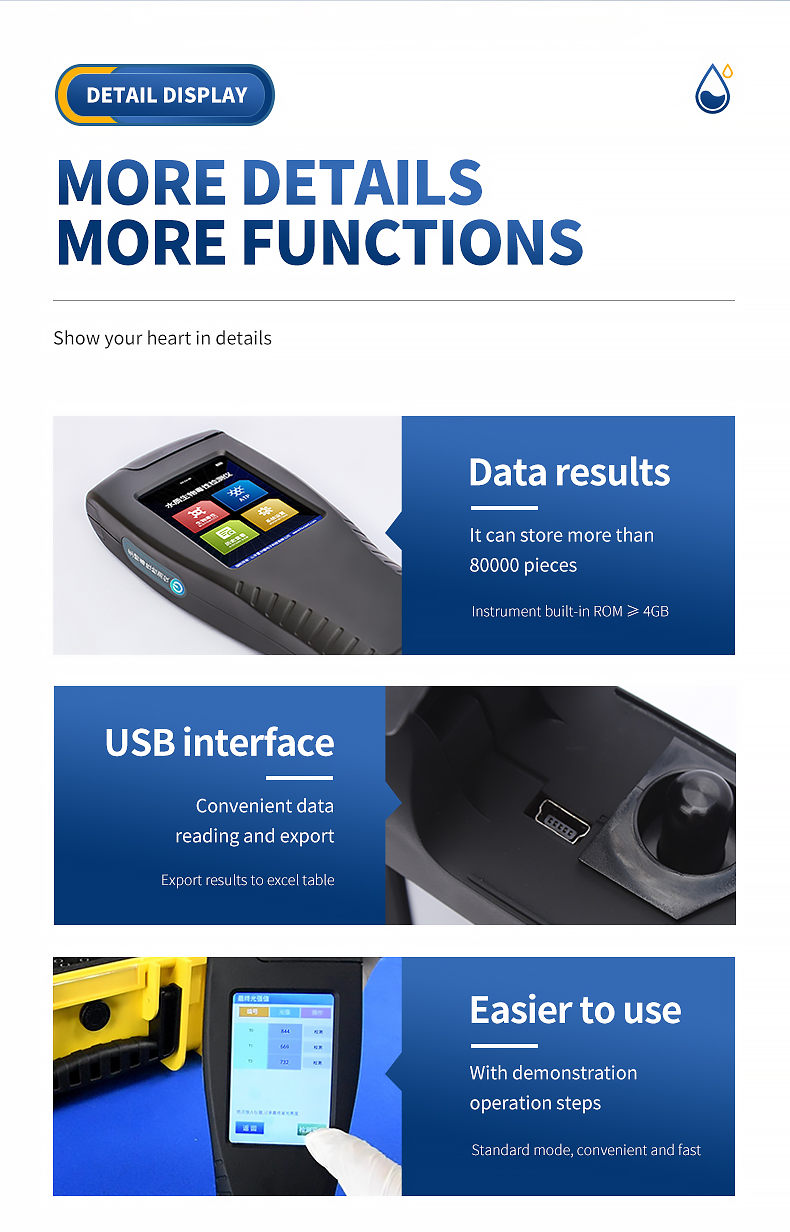

15. The instrument has a built-in ROM ≥ 4GB, and the data results can be stored for more than 80,000;

16. It has a USB communication interface for convenient data reading and export, and the exported results are Excel tables;

17. It has a built-in Sogou input method, which can edit Chinese and English information;

18. It has a built-in web browser, and you can search for relevant literature on Baidu after connecting to the Internet;

19. The standard mode has demonstration operation steps, which is convenient and fast, and easier to use;

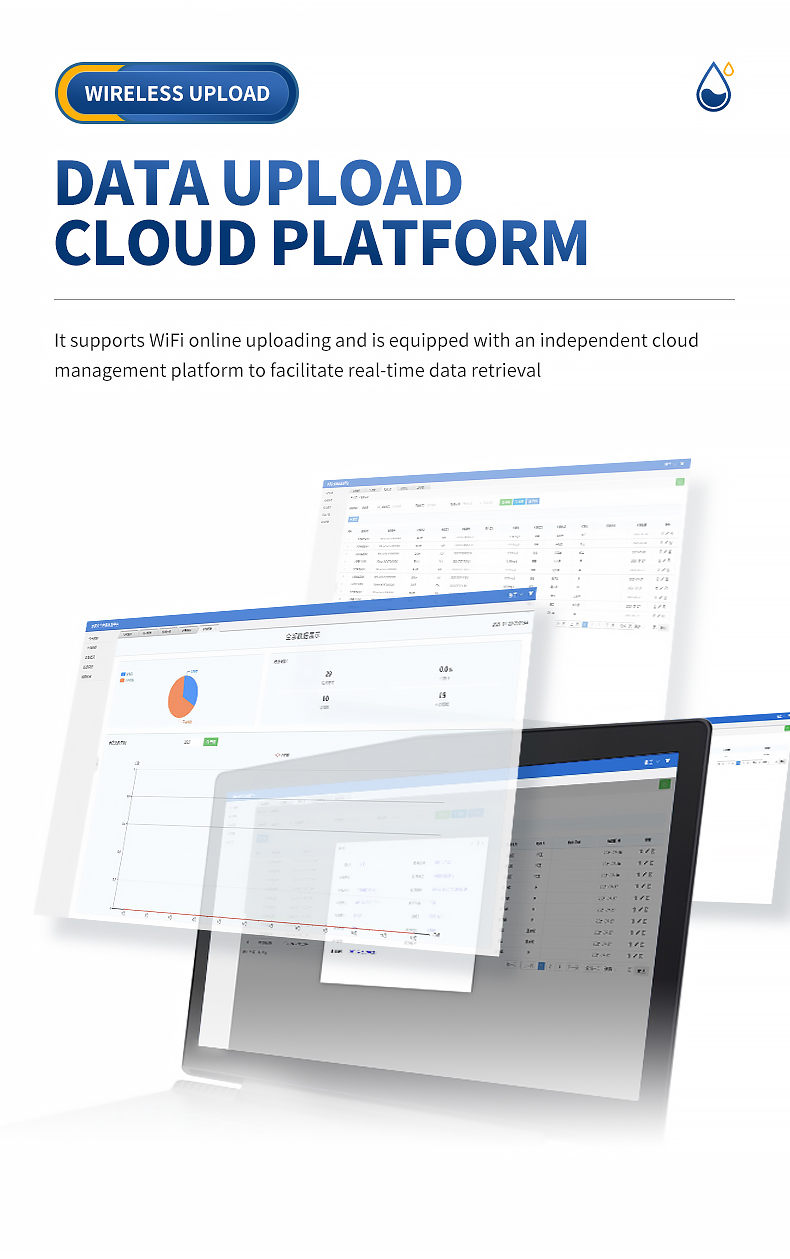

20. It is equipped with an electronic cloud data management platform, and the test results can be permanently stored for long-term and short-term viewing and analysis, and auxiliary management;

21. The instrument can be equipped with G PS satellite positioning function, real-time display of field detection location information, and can store positioning information;

Parameter indicators:

Measurement mode: fast measurement mode, basic measurement mode, ATP measurement mode;

Detector: silicon photomultiplier tube;

Spectral range: 300-1100nm;

ATP sensitivity: 10-15～10-18mol;

Bacterial species: Photobacterium luminescens, Vibrio fischeri, Vibrio qinghaiensis, Photobacterium osmiogenes, etc.;

Method standard: GB/T15441-1995&ISO11 348;

Measurement range: 0~999999RLU (relative luminescence unit);

Inhibition rate range: -100~100%;

Clear water luminescence inhibition rate: ≤±5%;

ATP detection limit: 9.4×10-15molATP, RLU indication is ≤2;

ATP repeatability: When the instrument indication is about 100RLU, the relative standard deviation of repeated measurements is ≤2.3% (n=10);

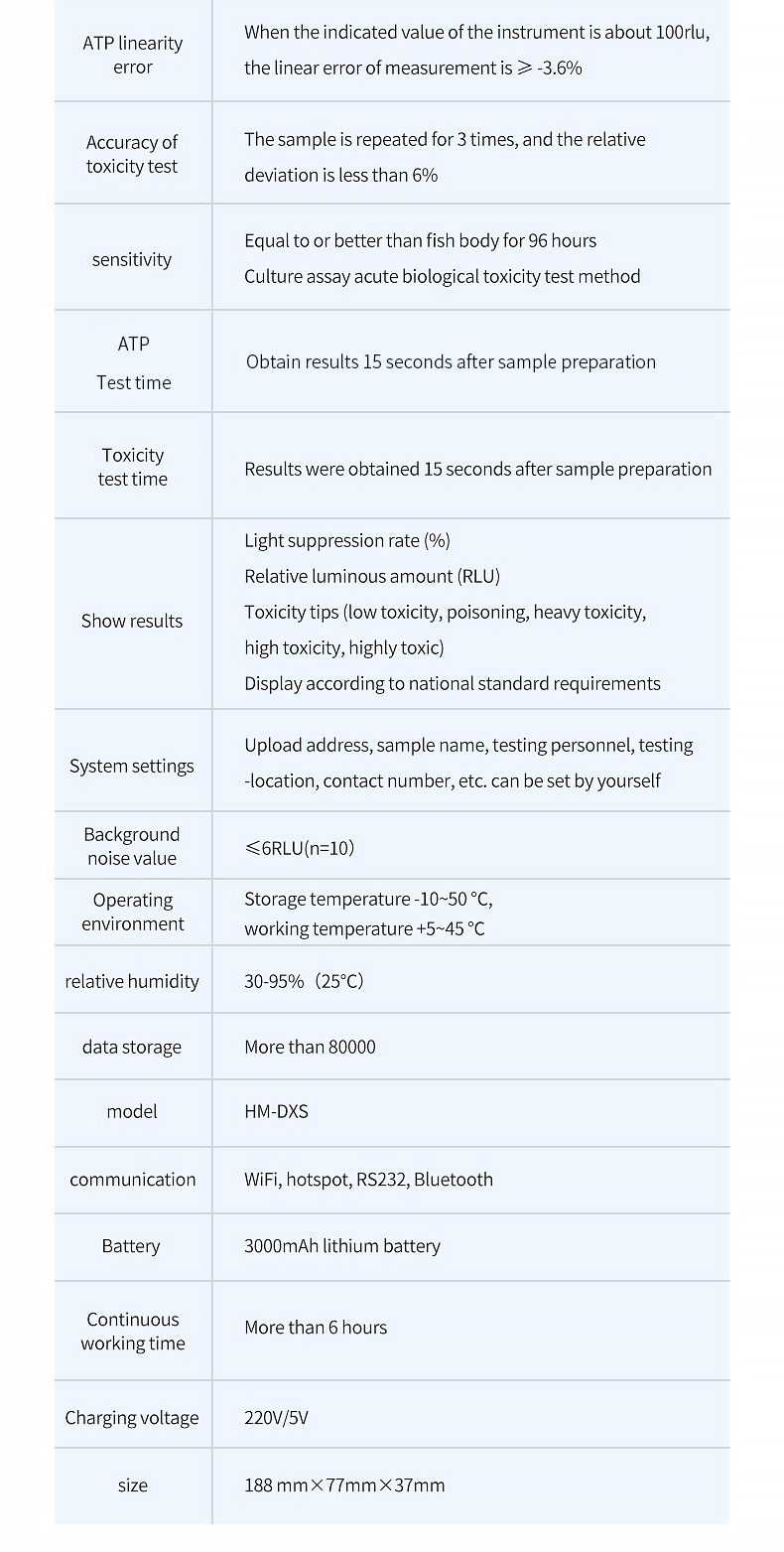

ATP linear error: When the instrument indication is about 100RLU, the linear error of the measurement is ≥-3 .6%;

Toxicity test accuracy: the sample was repeated 3 times, and the relative deviation was less than 6%;

Sensitivity: equivalent to or better than the acute biological toxicity test method for fish body 96-hour culture;

Toxicity test time: the result is obtained within 15 minutes after sample preparation;

ATP test time: the result is obtained within 15 seconds after sample preparation;

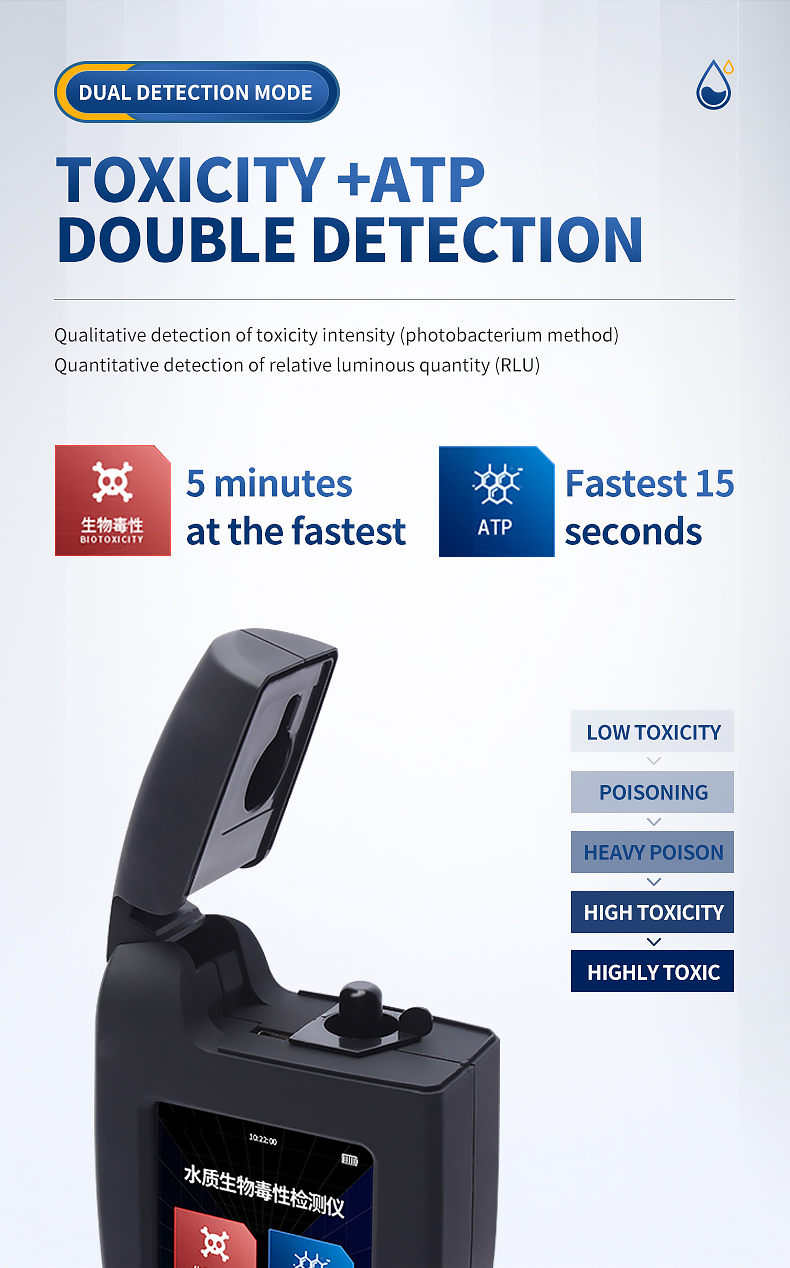

Display results: light suppression rate (﹪)Relative luminescence (RLU)Toxicity prompt (low toxicity, toxicity, severe toxicity, high toxicity, and extremely toxicity) are displayed according to national standards;

System settings: upload address, sample name, test personnel, inspection The measurement location, contact number, etc. can be set by yourself;

Background noise value: ≤6RLU (n=10);

Operating environment: storage temperature -10~50℃, working temperature +5~45℃;

Relative humidity: 30-95% (25°C);

Data storage: more than 80,000 records;

Communication: WIFI, hotspot, Bluetooth;

Battery: 3500mAh lithium battery;

Continuous working time: more than 10 hours;

Charging voltage: 220V/5V;

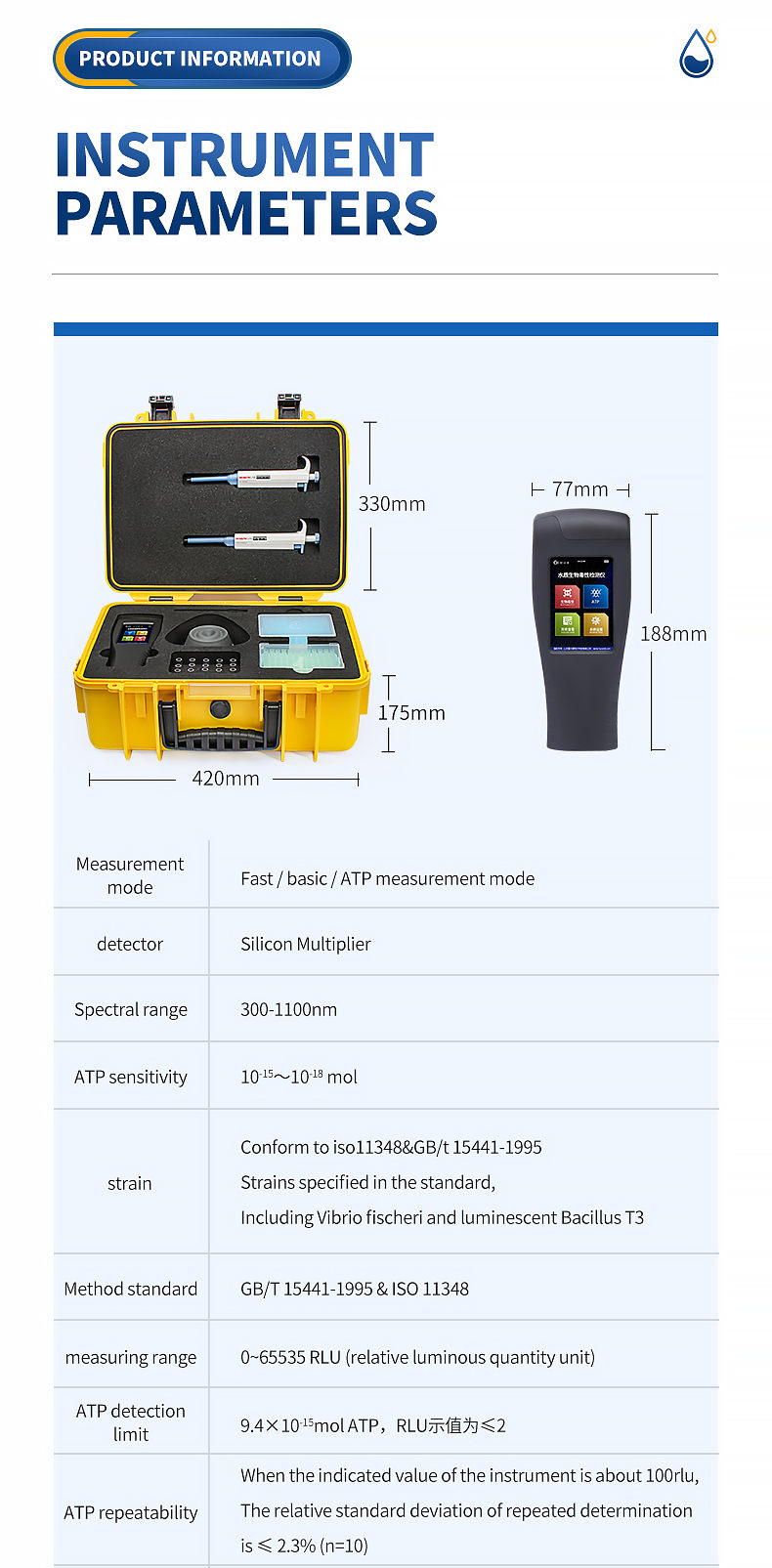

Instrument size: 188mm×77mm×37mm;
