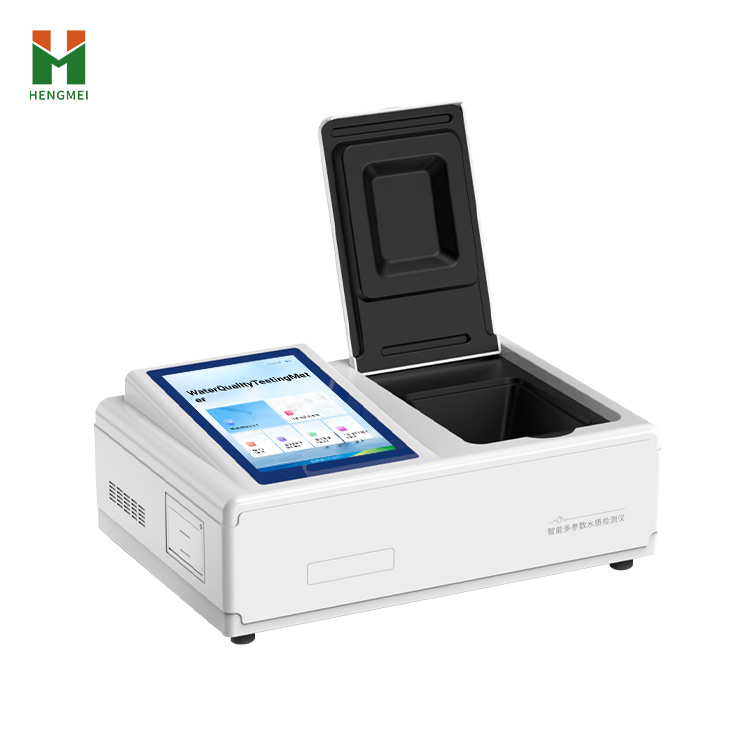

Water Quality 4-Nitrogen Analyzer | Ammonia, Nitrate, Nitrite, Total N

Ammonia nitrogen, nitrate nitrogen, nitrite nitrogen, and total nitrogen are key indicators for evaluating the degree of water pollution. They mainly detect the concentration indicators of ammonia nitrogen, nitrate nitrogen, nitrite nitrogen, and total nitrogen in water quality, and have intelligent data analysis functions. They are used for the detection of industrial wastewater, urban sewage, domestic sewage, and surface water wastewater in various industries.

Core principle: How to accurately quantify nitrogen content using spectrophotometry?

The water quality four nitrogen detector adopts spectrophotometry as its core technical principle, strictly following relevant national standards and methods to ensure the accuracy and authority of the detection results.

Its testing process is scientifically rigorous:

Sample pretreatment: According to different detection items, use specialized reagents to pretreat the water sample. Total nitrogen detection requires alkaline potassium persulfate digestion to convert various forms of nitrogen into nitrate.

Color reaction: The processed sample reacts with a specific color reagent. If ammonia nitrogen is measured using Nessler's reagent or salicylic acid spectrophotometry, and nitrite is measured using diazo coupling spectrophotometry, the color intensity of the product is directly proportional to the concentration of the analyte.

Precision optical detection: The reaction solution is injected into a precision colorimetric cell, and the instrument is illuminated by an imported ultra-high brightness LED light source. A high-precision optical sensor detects the absorbance value at a specific wavelength.

Intelligent quantitative analysis: The instrument automatically calculates the * * concentration of various nitrogen indicators in the sample based on the Bill Lambert law, through the built-in standard curve and algorithm model.

Result output and storage: The detection results are displayed in real-time on a 10.1-inch touch screen and stored in a large capacity memory.

Technical advantages and performance parameters: laboratory level on-site testing capability

The water quality four nitrogen detector integrates multiple innovative technologies, and its performance indicators have reached the industry-leading level.

1. Testing performance and accuracy

High standard accuracy: indication error ≤ ± 5%, instrument repeatability<0.5%, stability<0.5%, ensuring reliable detection results.

Wide detection range: ammonia nitrogen: 0.2-200mg/L (segmented), nitrate nitrogen: 0.1-100mg/L, nitrite nitrogen: 0.005-0.25mg/L, total nitrogen: 0.5-200mg/L, meeting the detection needs of various water bodies.

Excellent optical stability: The photochemical stability has a numerical drift of ≤ 0.002A within 20 minutes, and the light source has a lifespan of 100000 hours.

2. Operational experience

Humanized operation interface: adopting Android 7.1.1 intelligent operating system, 10.1-inch high-definition color LCD touch screen, supporting switching between Chinese and English interfaces.

Multi color comparison method: supports 10mm, 30mm, 50mm dish color comparison and φ 16mm tube color comparison, suitable for accurate measurement of samples with different concentrations.

Teaching demonstration function: Built in operation videos, users can learn while watching and quickly master detection methods.

3. Data management function

Massive data storage: capable of storing 8 million sets of data, supporting retrieval and analysis by time.

Multi mode data transmission: supports multiple networking methods such as WIFI, RJ45, Bluetooth, and hotspot, and data can be exported to Excel spreadsheets through a USB flash drive.

Cloud monitoring platform: It can connect to the monitoring cloud platform and directly transmit data to the environmental security monitoring platform.

4. Portability and adaptability

Portable design: Size 444 × 303 × 173mm, weight 5.2kg, easy to carry on site.

Long range capability: Supports AC220V power supply, optional large capacity rechargeable lithium battery to meet outdoor testing needs.

Environmental adaptability: Working temperature of 5-40 ℃, humidity<85%, suitable for various on-site environments.

The water quality four nitrogen detector simplifies complex laboratory analysis into on-site rapid operation through innovative spectrophotometric technology, solving the pain points of low efficiency and high cost of traditional methods. Its fast, accurate, and convenient characteristics make it an important tool for water quality monitoring. With the continuous improvement of environmental protection requirements, water quality four nitrogen detectors will play a more important role in water environment treatment, sewage management, industrial water conservation and other fields.
