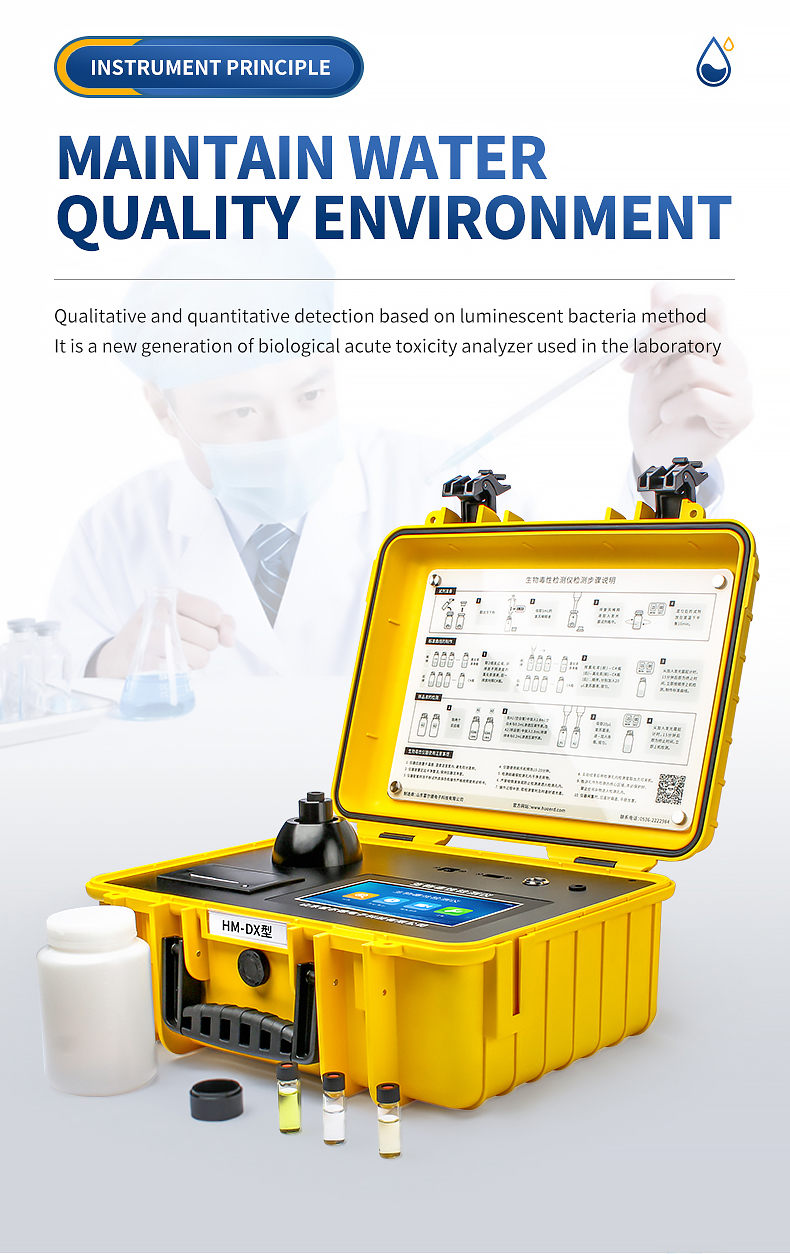

Portable Biological Toxicity Analyzer HM-DX

Product Overview:

The portable biological toxicity analyzer is a new generation of biological acute toxicity analyzer for laboratory use. It is a toxicity detection system based on bioluminescent sensing technology. It performs qualitative and quantitative detection based on the changes in the luminous intensity of luminous bacteria during metabolism. Compared with traditional fish, water fleas and other aquatic organisms as biological detection methods, the luminous bacteria method is simple, rapid, sensitive, adaptable, repeatable, accurate, low-cost, and widely used. It is a rapid water quality toxicity detection instrument designed for environmental pollution, emergency accidents, security inspections and routine inspections. It can be used for the overall toxicity detection of heavy metals, poisons, nerve agents, pesticide preparations and other substances in on-site water.

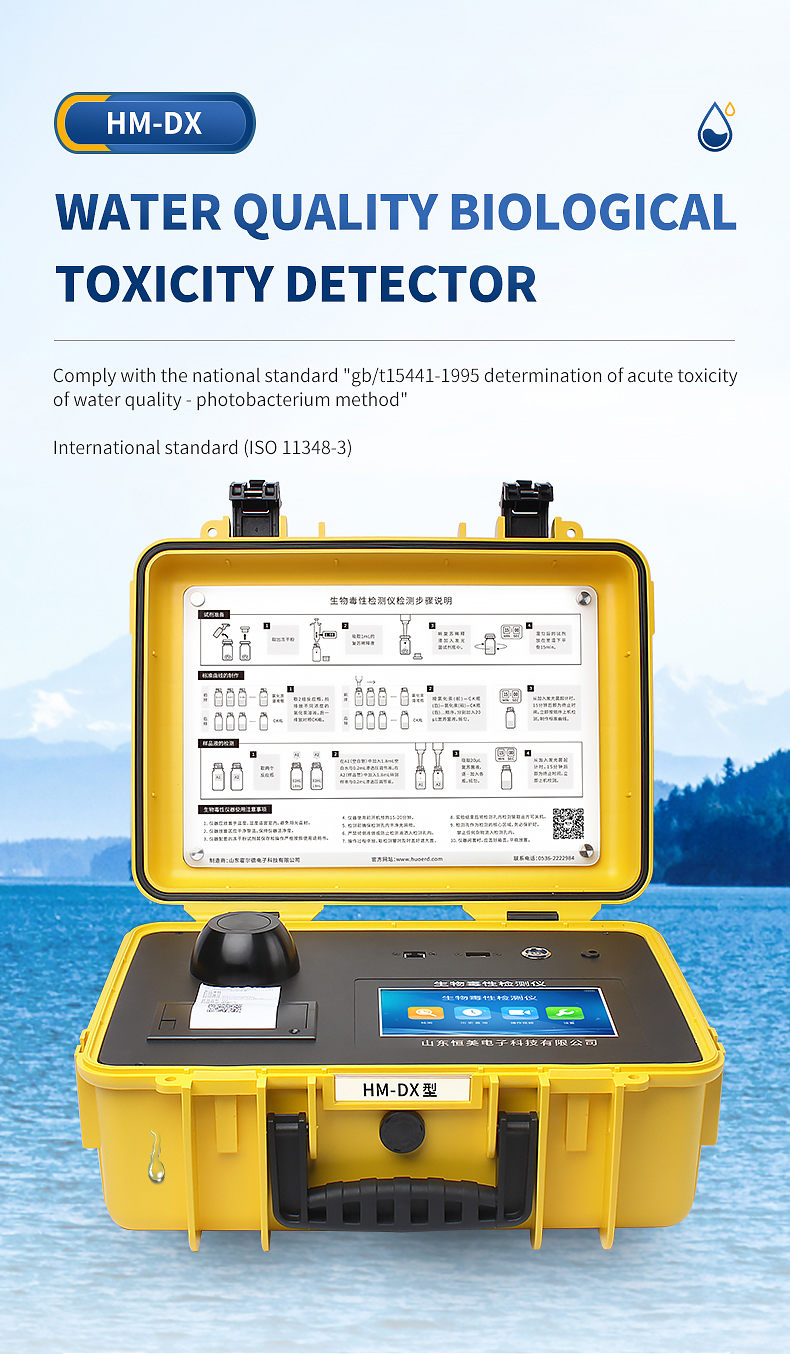

It complies with the national standard "GB/T15441-1995 Determination of acute toxicity of water quality-luminous bacteria method" and international standards (ISO11348-3).

2. Application industries:

Biological pollution, toxic chemicals, toxic and hazardous waste, municipal drainage, rainwater detection, drilling fluid and mud detection, mining industry, wastewater, soil and water detection, industrial wastewater discharge detection, process water detection, seawater detection, medical/pharmaceutical product detection, food packaging detection, personal care products and household chemicals detection, sediment detection, rainwater runoff detection, solid sample detection, food processing water detection;

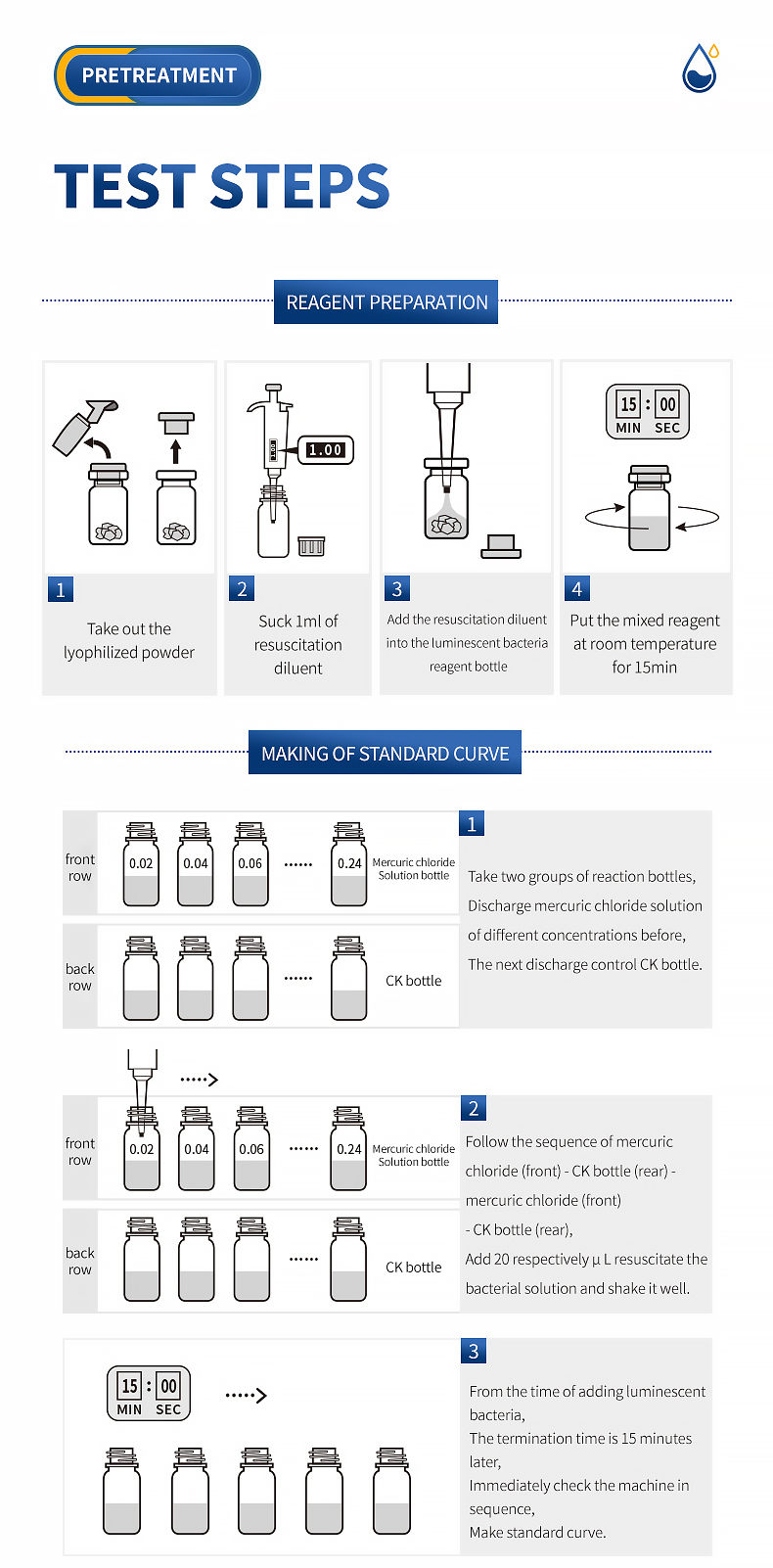

Detection principle:

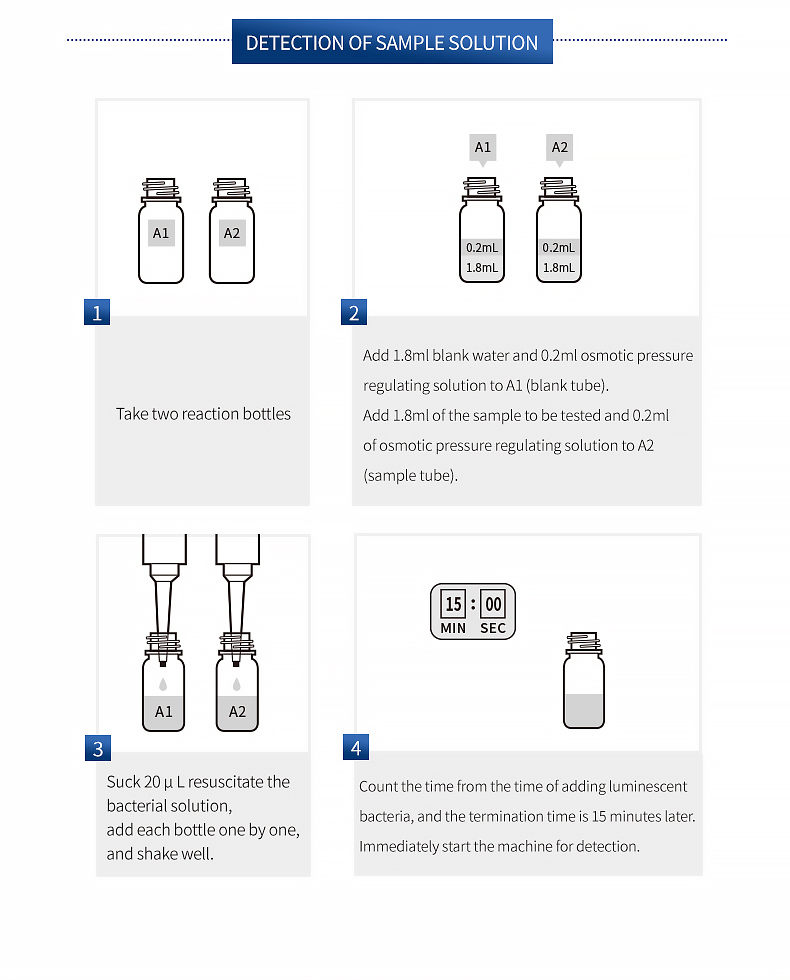

The portable water quality biological toxicity detector performs dual functions: toxicity testing and determining microbial contamination; toxicity testing is performed using luminescent bacteria that exist in nature. This bacteria emits light during normal metabolism. If placed in a toxic environment, their cell respiration process is affected, resulting in a decrease in the amount of light emitted. The luminescence detector measures the amount of light emitted by the luminescent bacteria before and after exposure to the toxic environment. The degree of reduction in the amount of light corresponds to the strength of the toxicity. The test results can be compared with the standard toxic substances HgCl2 or zinc sulfate heptahydrate to obtain the corresponding toxicity level.

Instrument features:

1. Comply with national standards (GB/T154411995) and international standards (ISO11348-3);

2. A biological early warning system that is sensitive to more than 3,000 toxic compounds;

3. Results are obtained within 15 minutes after sample preparation, which is fast, reliable and reproducible;

4. The test results are highly correlated with other traditional toxicity analysis methods and can be applied to emergency water pollution detection to help users monitor in real time whether drainage complies with local regulations and emission standards;

5. Android smart operating system, smarter and more user-friendly;

6. It has an independently developed biological toxicity darkroom automatic lifting detection device to solve the problem of open-cover testing being affected by strong light in the industry; for the same amount of bacteria, our instrument can save 5 times the cost of consumables;

7. Portable PVC engineering box design, which can be carried out for on-site testing;

8. The 7-inch ultra-large display touch screen eliminates the cumbersome operation of buttons and is more convenient;

9. The use of silicon photomultiplier tubes greatly improves Improve detection sensitivity;

10. With RJ45, WIFI, 4G and Bluetooth connection transmission functions, it can realize wireless transmission to relevant monitoring and supervision platforms, realize real-time data, and better meet the scene requirements of the supervision department;

11. The instrument has a built-in 6000mAH lithium battery pack, which can support continuous work for more than 8 hours in the case of external power failure or no power supply;

12. A curve can have 20 curve concentration points, and you can choose whether the curve point participates in the calculation of the entire curve at will, without manual recording, to ensure that the curve value is more accurate; (Curve concentration points can be customized and increased)

13. The instrument has a built-in ROM ≥ 4GB, and the data results can store more than 80,000;

14. It has a USB communication interface for convenient data reading and export, and the export results are Excel tables;

15. Built-in Pinyin input method, which can edit Chinese and English information;

16. High-speed thermal printer, the test report can be automatically printed after the test is completed, and the test report is accompanied by a QR code for easy scanning and tracing;

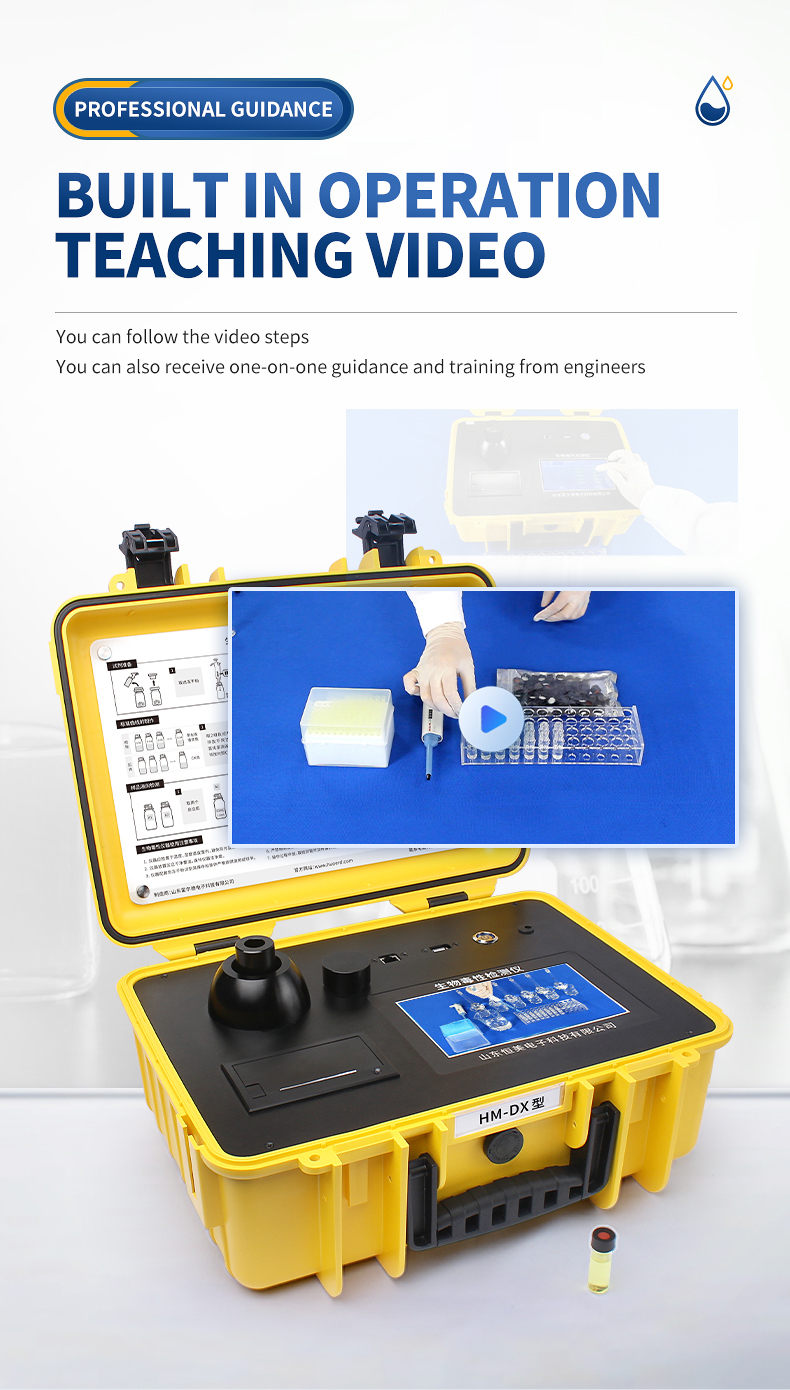

17. The instrument has built-in operation demonstration Video display, click the operation video on the main interface, it can be automatically played, convenient and easy to use;

18. Detection history query function, you can select the start and end time to retrieve previous detection data, accurate and convenient;

19. Configure the cloud data management platform, the test results can be permanently stored, long-term and short-term viewing and analysis, auxiliary management;

20. The instrument can be equipped with GPS satellite positioning function, real-time display of field detection location information, and can print and store positioning information;

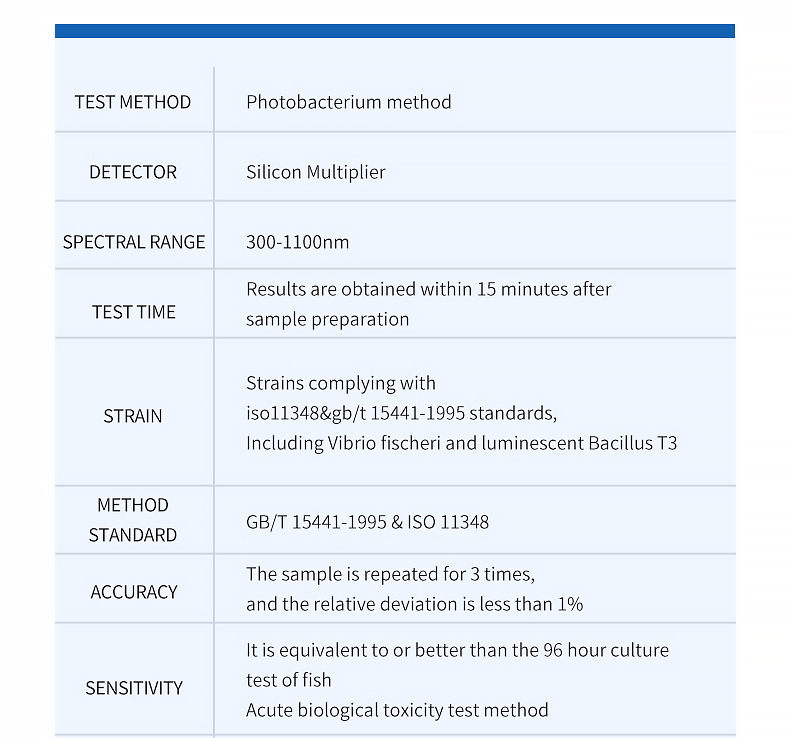

Parameter indicators:

Detection method: luminous bacteria method

Detector: silicon photomultiplier tube

Spectral range: 300-1100nm

Bacteria: Bright Photobacterium, Vibrio fischeri, Vibrio qinghaiensis, Photobacterium aujuxiangensis, etc.;

Method standard: GB/T15441-1995&ISO11348;

Light suppression rate range: -100~100%;

Clear water luminescence light suppression rate: ≤±5%;

Repeatability: The sample is measured 3 times, and the relative deviation is less than 1%;

Sensitivity: equivalent to or better than fish body 9 Acute biological toxicity test method for 6-hour incubation;

Relative linear error (luminescence inhibition rate): The relative linear error of the luminescence inhibition rate of the zinc sulfate solution with a Zn2+ concentration of 1.13 mg/L is ≤±10%;

Test time: Results are obtained within 15 minutes after sample preparation;

Display results: quantitative detection (mg/L)/qualitative detection (low toxicity, moderate toxicity, severe toxicity, high toxicity, and extremely toxicity)/light inhibition rate (%);

Print settings: sample name, tester, test location, reference Poison;

Operating environment: storage temperature -10~50℃, working temperature +5~45℃;

Relative humidity: 30-95% (25°C);

Data storage: more than 80,000 records;

Communication: RJ45, WIFI, 4G, USB, Bluetooth;

Battery: 6000mAh lithium battery;

Continuous working time: more than 8 hours;

Power supply: 220V/12V AC/DC;

Dimensions and weight: 420*330*175mm/5KG;
