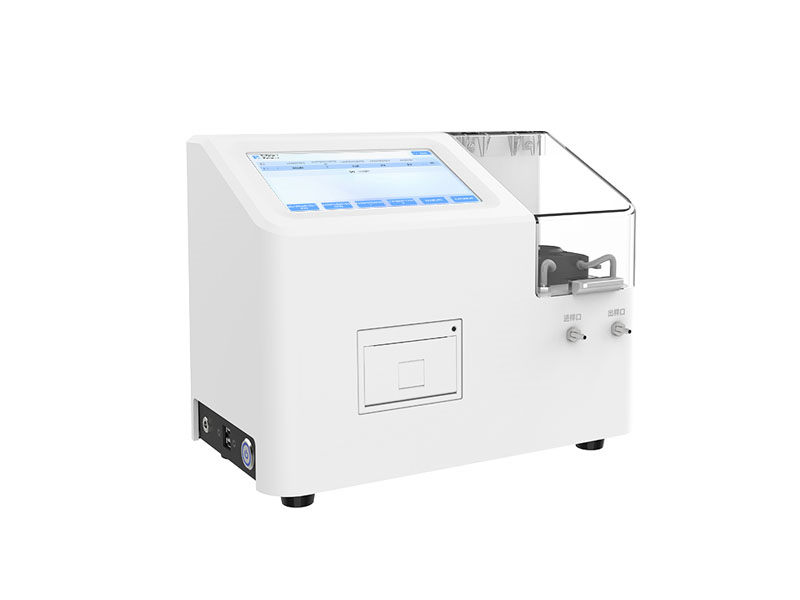

Phosphate Analyzer HM-LSG

Product Introduction:

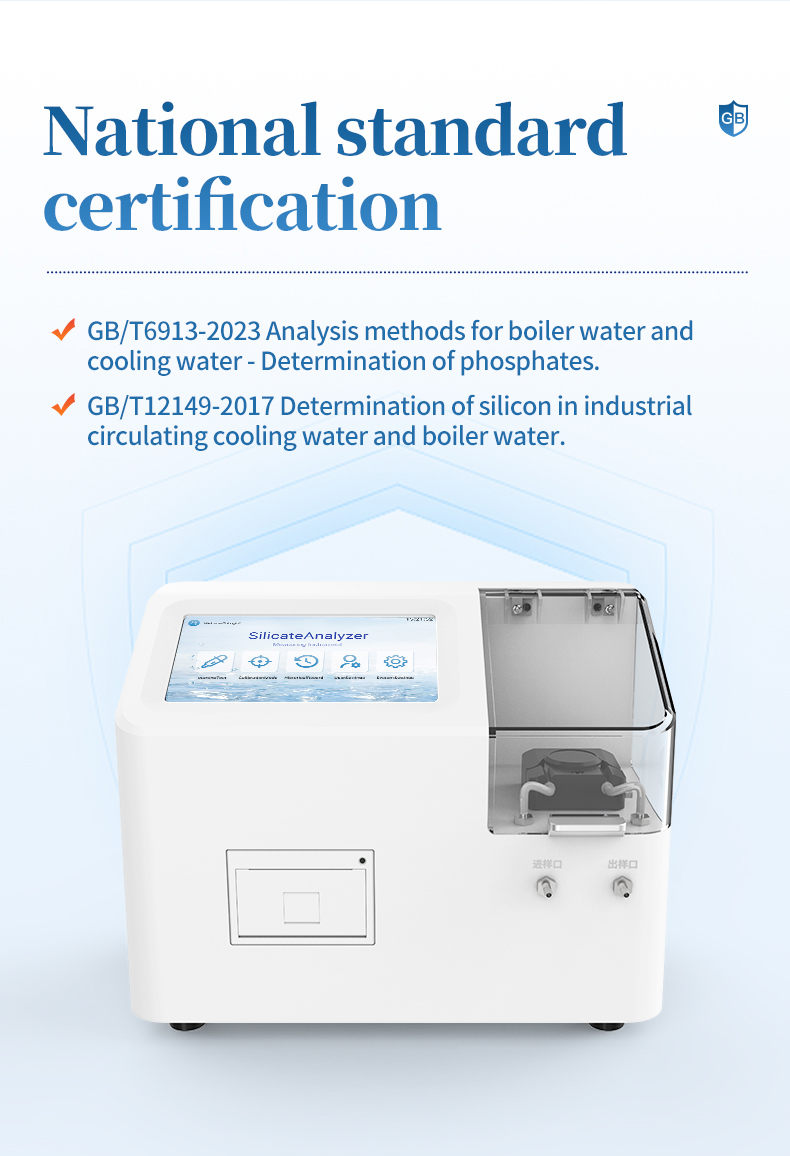

The laboratory phosphate analyzer is a rapid analysis equipment that integrates automatic sampling technology and photoelectric detection technology. The instrument performs colorimetric quantification on the reaction solution after color development, and obtains the corresponding phosphate content based on the built-in standard curve of the instrument. This instrument is suitable for industries such as power plants, chemical fertilizers, metallurgy, environmental protection, pharmaceuticals, chemical fibers, semiconductors, etc. It is suitable for detecting and analyzing the content of soluble phosphate ions in water such as desalinated water, steam condensate water, and boiler water. Designed and manufactured in accordance with the standard GB/T 6913-2023 Analysis Methods for Boiler Water and Cooling Water - Determination of Phosphates.

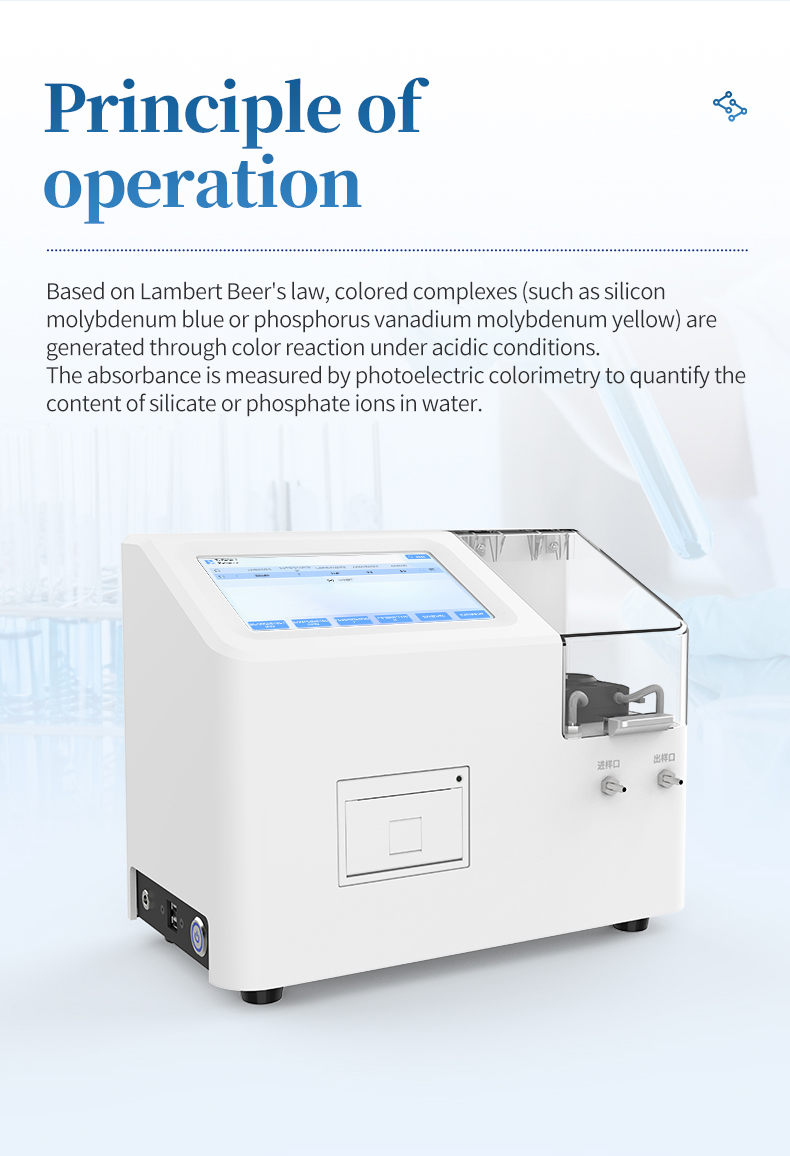

Working Principle:

The laboratory phosphate analyzer uses the principle of photoelectric colorimetry for measurement. Phosphate in acidic water samples reacts with vanadium molybdate to form a yellow mixture of phosphorus, vanadium, and molybdic acid. The phosphate ion content is then determined using a phosphate analyzer based on the principle of photoelectric colorimetry. According to Lambert Beer's law, when a monochromatic parallel light passes through a colored solution, a portion of the light energy is absorbed by the solution. If the thickness of the liquid layer remains constant, the degree of light energy absorption (absorbance A) is proportional to the concentration of colored substances in the solution.

Product Features:

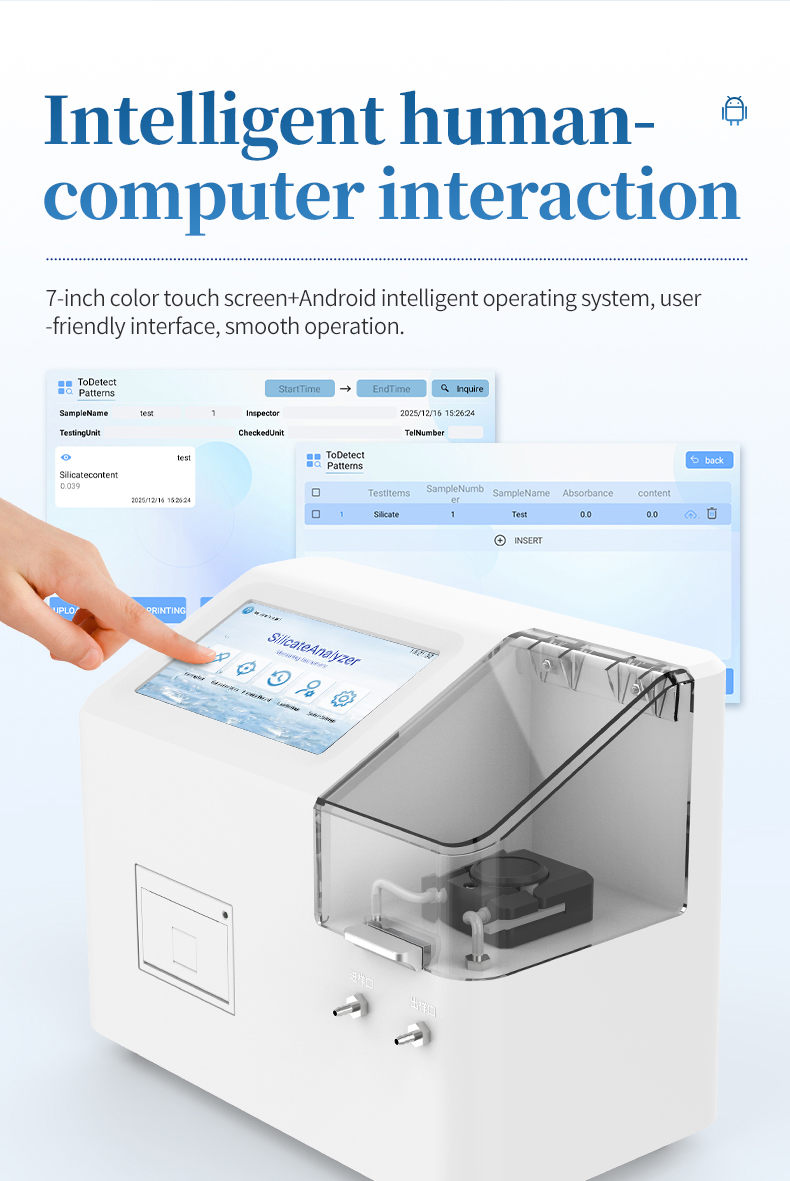

1. 7-inch color touch screen, Android 7.1.1 intelligent operating system, better interactive operation experience, smoother use;

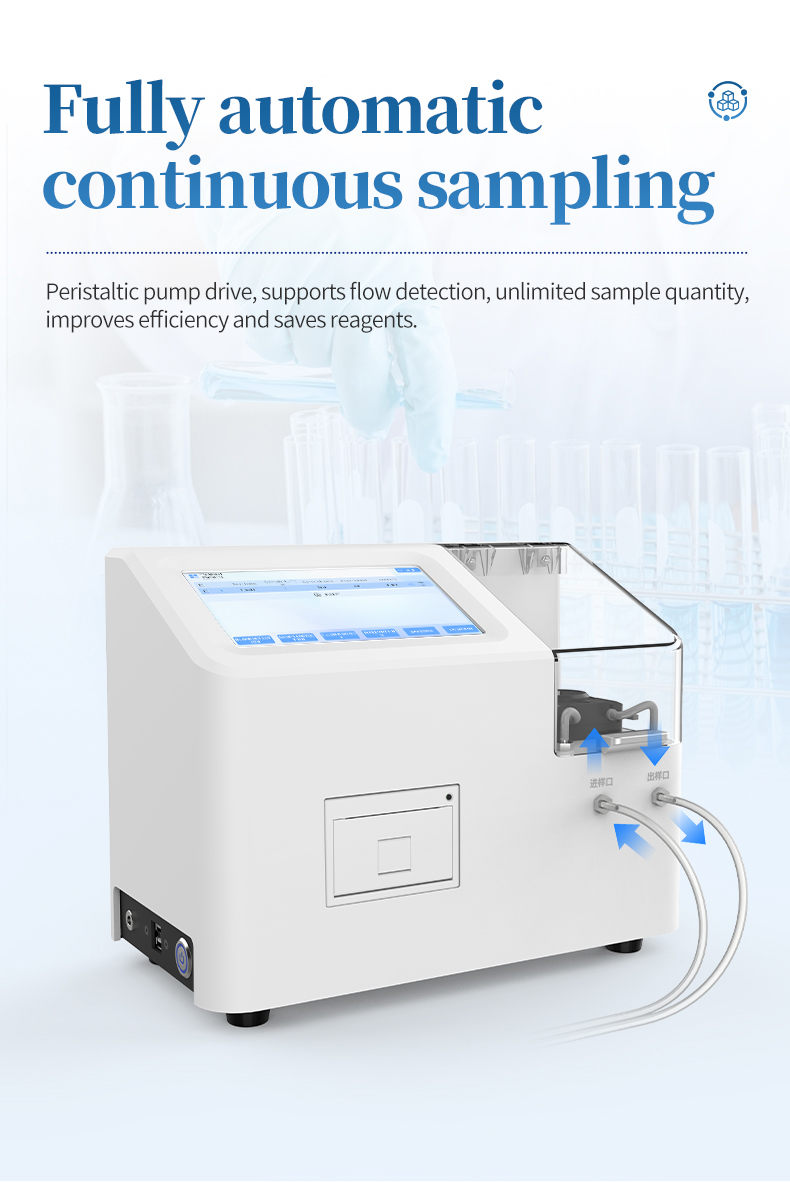

2. Using a peristaltic pump for continuous automatic injection, flow detection is not limited by the number of samples, allowing for continuous multi sample testing and saving reagent consumables;

3. Equipped with WiFi networking function, it can quickly upload detection data wirelessly;

4. Customized wavelength high stability LED cold light source, with more stable detection data, low power consumption, and long lifespan;

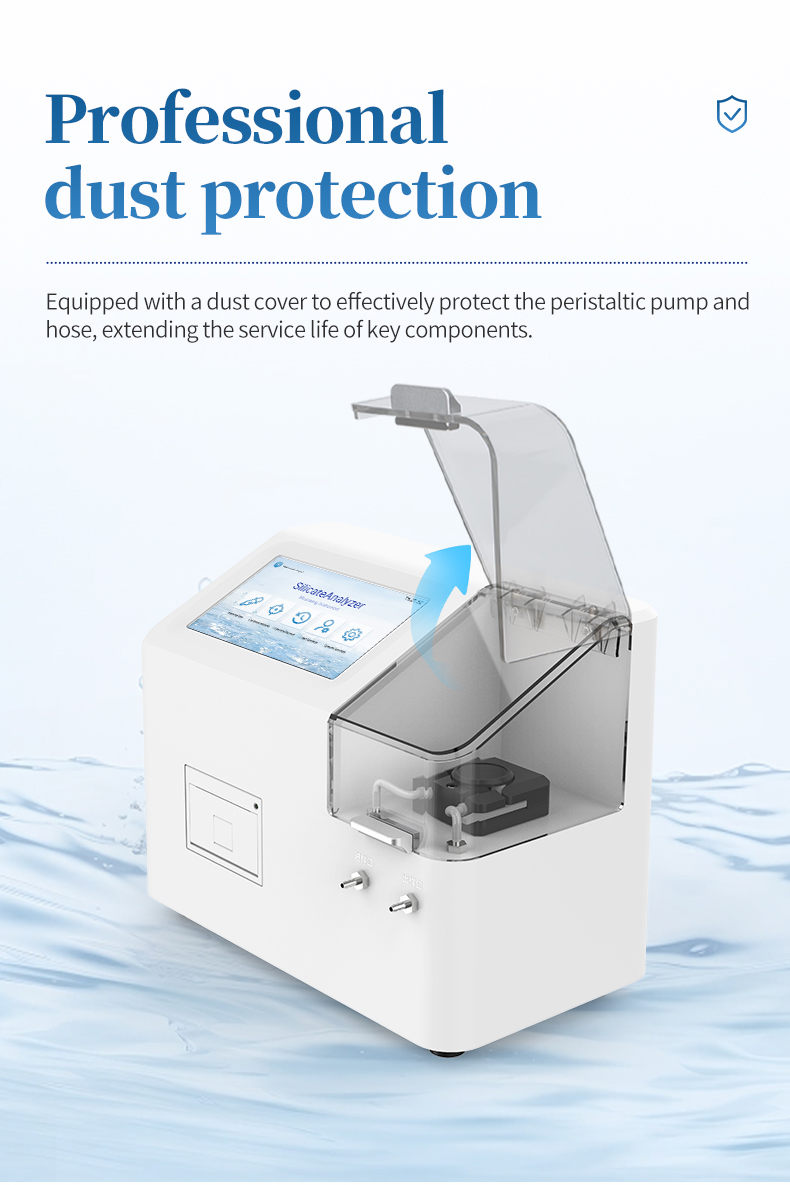

5. Professional dust cover design effectively protects the peristaltic pump and hose during operation;

6. Intelligent constant current and voltage regulation, automatic adjustment and calibration of light intensity, no temperature drift phenomenon in the light source during long-term continuous operation;

7. Built in high-speed thermal printer, capable of automatically printing inspection reports upon completion of testing;

8. High capacity 16GB storage capacity, with a storage capacity of 5 million test results.

9. Configure a data cloud platform, where detection results can be stored for long-term viewing and analysis, assisting in management.

10. At the same time, it supports direct copying of data from a USB flash drive, with a standard USB interface and no need for driver insertion and removal.

11. It has self-cleaning function and can automatically clean the pipeline after detection is completed.

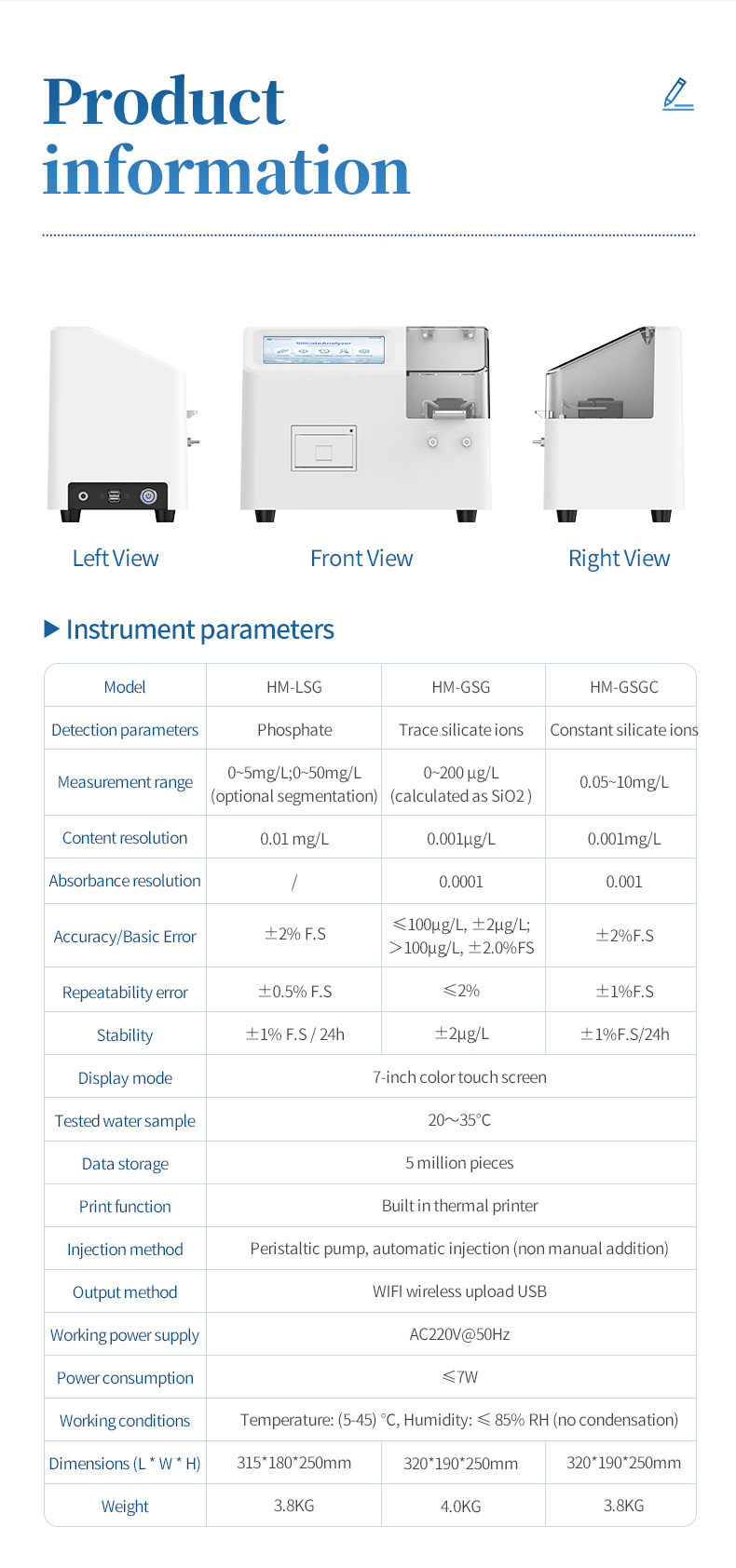

Technical Parameters:

1. Detection parameters: Phosphate

2. Measurement range: 0-5mg/L, 0-50mg/L (segmented optional);

3. Resolution: 0.01mg/L;

4. Display mode: 7-inch color touch screen;

5. Basic error: ± 2% F.S;

6. Repetitive error: ± 0.5% F.S;

7. Stability: ± 1% F.S/24h;

8. Tested water sample: 20-35 ℃;

9. Data storage: 5 million records;

10. Printing function: Built in thermal printer;

11. Injection method: peristaltic pump, automatic injection (non manual addition);

12. Output method: WIFI wireless upload USB;

13. Working power supply: AC220V@50Hz ;

14. Power consumption: ≤ 7W;

15. Dimensions: 315 * 180 * 250mm (length * width * height);

16. Working conditions: Environmental temperature: (5-45) ℃, relative humidity: ≤ 85% RH (no condensation);

17. Weight: 3.8KG;

18. Instrument packaging size: 410 * 330 * 390mm

19. Packaging weight: 5.3kg
