Product Introduction

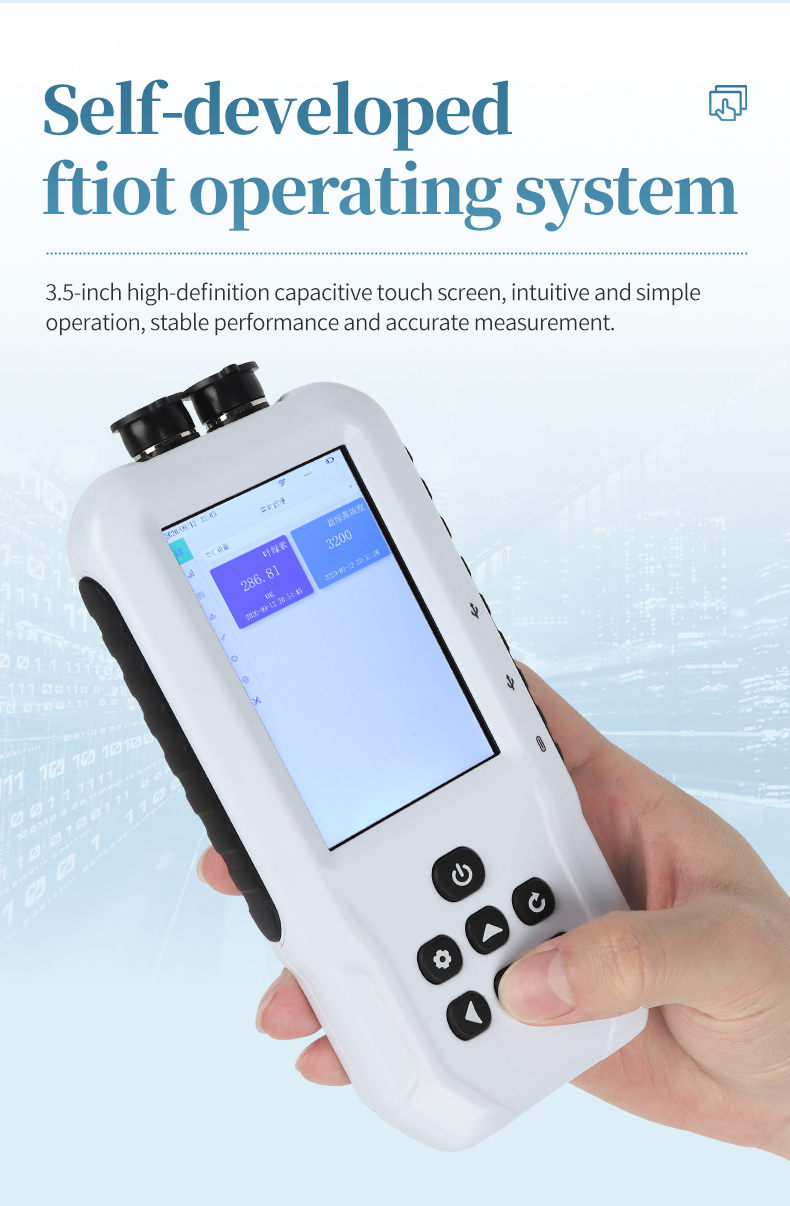

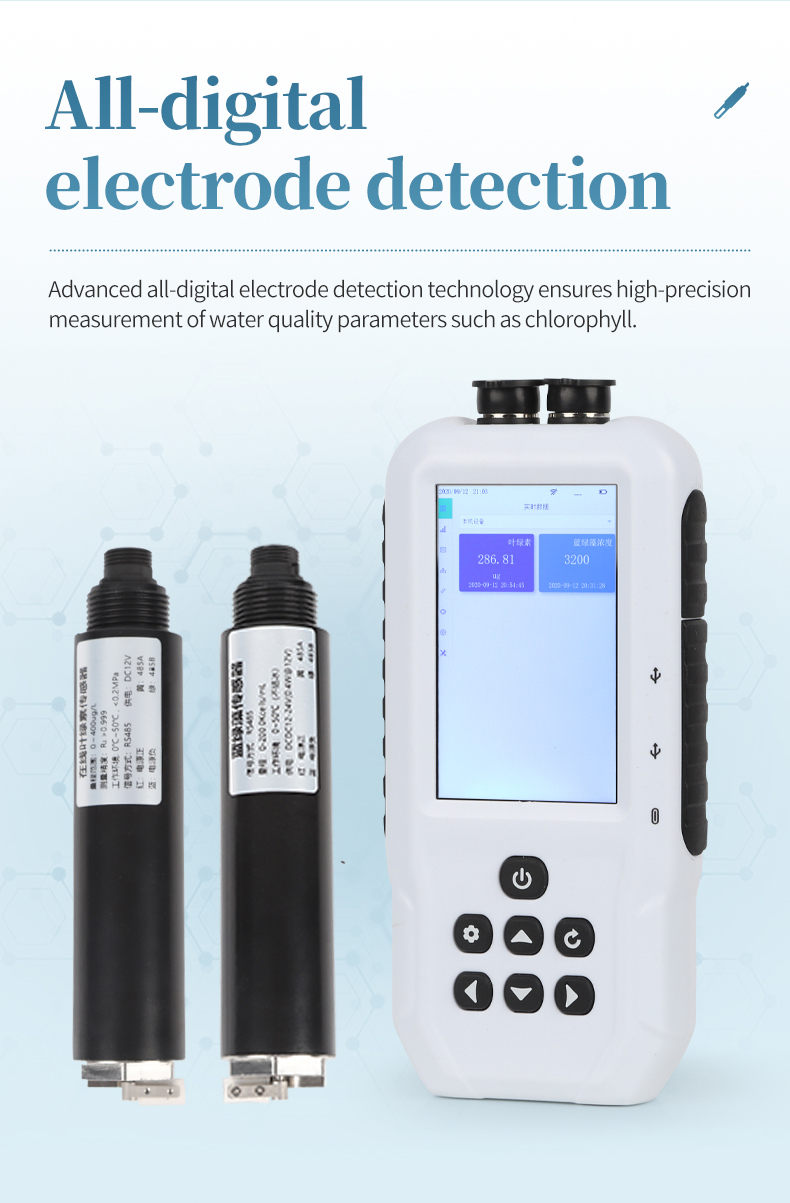

The blue-green algae analyzer in water is an electrode based water quality analysis instrument that uses fully digital electrodes to detect blue-green algae parameters in water quality. The instrument is equipped with a self-developed FTIOT operating system, which is easy to operate, stable in performance, accurate in measurement, and has a wide detection range. It is also equipped with a high-capacity rechargeable lithium battery, making it convenient for users to conduct water quality testing in the field or laboratory at any time.

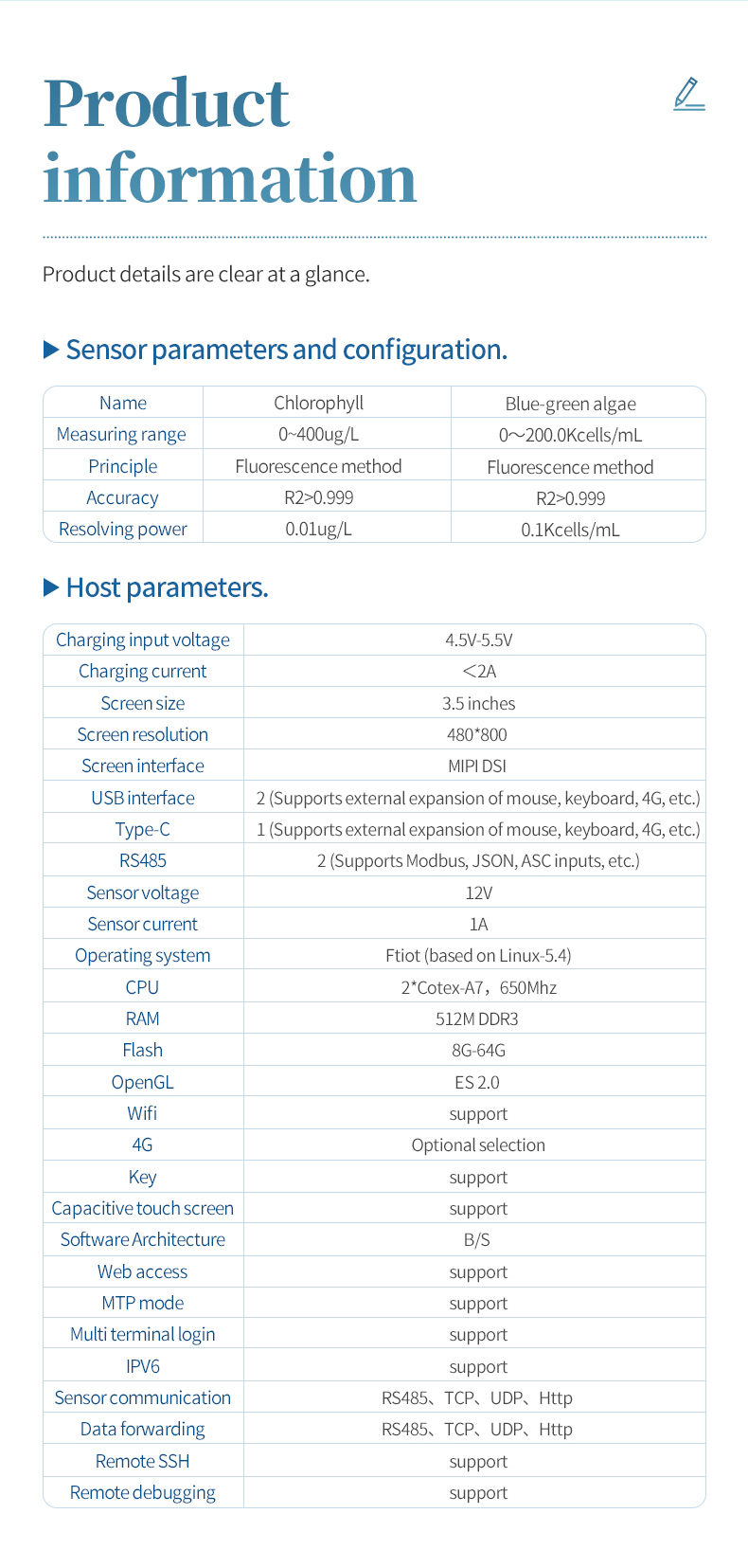

Host parameters
Charging input voltage | 4.5V-5.5V |
Charging current | < 2A |
Screen size | 3.5 inches |
Screen resolution | 480 * 800 ☆ |
Screen interface | MIPI DSI ☆ |
USB interface | 2 (supports external mouse, keyboard, 4G, etc.) ☆ |
Type-C | 1 (supports external mouse, keyboard, 4G, etc.) ☆ |
RS485 | 2 (supports Modbus, JSON, ASC inputs, etc.) |
External sensor power supply voltage | 12V |
External sensor power supply current | 1A |
Operating system | ftiot (based on Linux-5.4) ☆ |
CPU | 2*Cotex-A7，650Mhz ☆ |
RAM | 512M DDR3 ☆ |
Flash | 8G-64G |
OpenGL | ES 2.0 ☆ |
WiFi | support |
4G | optional |
Button | support |
Capacitive touch screen | support |
Software Architecture | B/S ☆ |
Web access | support ☆ |
MTP mode | supports ☆ |
Multi terminal login | support ☆ |
IPV6 | support ☆ |
Sensor communication methods include | RS485, TCP, UDP, HTTP ☆ |
Data forwarding methods include | RS485, TCP, UDP, HTTP ☆ |
Remote SSH | support ☆ |
| Remote debugging | support ☆ |
